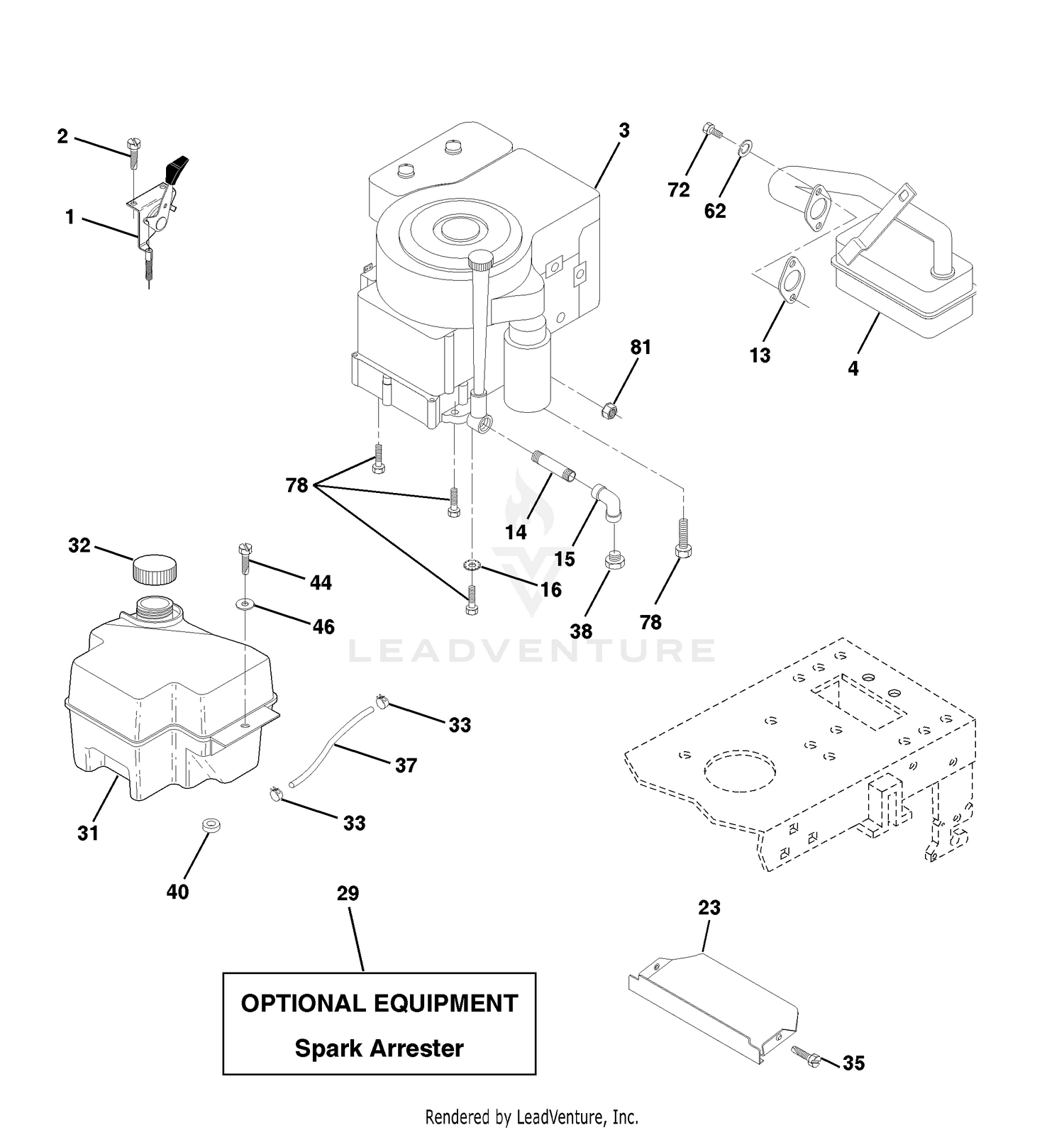

| Ref | Part Number | Description |
|---|
| 1 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 1 |
532170551 |
CONTROL.THROTTLE/CHOKE.BLACK This part replaces 532140310. Price: $24.99 |
| 2 |
106-9208 |
SHORT CYLINDER PIN ASM This part replaces 83-6790. Price: $83.12 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 3 |
99-5643 |
HOSE-HYD Price: $125.90 |
| 4 |
532137348 |
MUFFLER.SINGLE.B&S.10-12HP Price: $89.99 |
| 5 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 6 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 7 |
99-5641 |
HOSE-HYD Price: $136.64 |
| 8 |
94-5808 |
DISCONTINUED Price: Call Us |
| 9 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 10 |
92-8002 |
SWITCH-LIFT, BACK BIASED Price: $105.67 |
| 11 |
83-6780 |
PIN-CYLINDER Price: $130.51 |
| 13 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 13 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 14 |
75-5220-03 |
DISCONTINUED Price: Call Us |
| 14 |
813280324 |
Nipple Pipe 3/8 Npt X 3" Price: $3.12 |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 15 |
75-5200-03 |
BRACKET-SPRING, RH Price: $95.29 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 16 |
75-5210-03 |
BRACKET-SPRING, CENTER Price: $94.91 |
| 17 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 18 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 19 |
328-7 |
SCREW-HH Price: $4.00 |
| 20 |
32151-48 |
E-RING Price: $1.41 |
| 21 |
282-4 |
SHACKLE Price: $32.98 |
| 22 |
5-0743-03 |
SPRING-MOWER Price: $188.53 |
| 23 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 23 |
532159880 |
PROTECTOR Price: $7.99 |
| 24 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 25 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 26 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 27 |
163-3535 |
CYLINDER-HYDRAULIC This part replaces 93-9310. Price: $582.35 |
| 28 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 29 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
75-5350 |
PIN-SLIDE, CYLINDER Price: $41.31 |
| 31 |
532180645 |
GAS TANK 2GAL This part replaces 532161911. Price: $59.99 |
| 31 |
75-5900 |
HOSE Price: $78.45 |
| 32 |
32104-76 |
SCREW-HWHTF Price: $2.29 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 33 |
75-6370 |
CAP-SENSOR Price: $8.87 |
| 34 |
99-5621 |
GUIDE-HOSE Price: $34.45 |
| 35 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 35 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 37 |
110-9709 |
HYD CYLINDER ASM This part replaces 99-6986. Price: $743.86 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 40 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 41 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 44 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 62 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 72 |
596134201 |
Screws This part replaces 871070512. Price: $2.99 |
| 78 |
874760620 |
BOLT This part replaces 817490620. Price: $4.99 |
