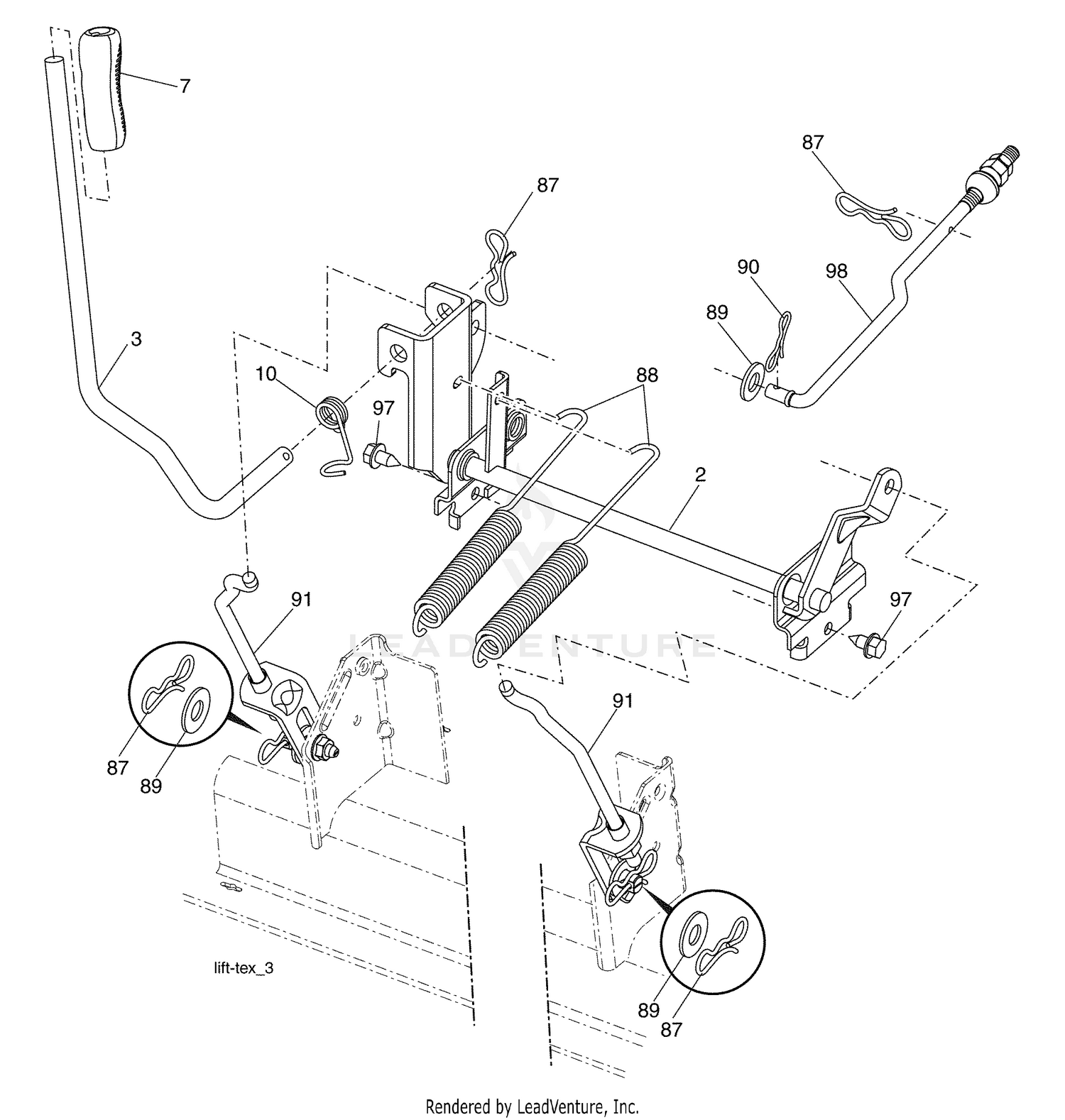

| Ref | Part Number | Description |
|---|
| 1 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 2 |
532422027 |
SHAFT.ASM.CROSS.LIFT This part replaces 532195223. Price: $69.99 |
| 3 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 3 |
594018001 |
Levers This part replaces 532195231. Price: $17.99 |
| 5 |
66-8460-01 |
MOUNTING BRACKET This part replaces 66-8460. Price: $68.73 |
| 6 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 7 |
532411555 |
GRIP.HANDLE.LIFT.PVC.BLACK Price: $7.99 |
| 7 |
70-7920 |
PIN-LOCK Price: $21.78 |
| 8 |
12-3270 |
SCREW Price: $3.09 |
| 9 |
66-8420-03 |
END-SPRING ASM This part replaces 66-8420. Price: $52.26 |
| 10 |
46-3380 |
BOLT-SHOULDER Price: $9.57 |
| 10 |
532196314 |
SPRING.TORSION.LIFT.HANDLE Price: $3.99 |
| 11 |
66-8450-01 |
KNEE BRACKET This part replaces 66-8450. Price: $22.51 |
| 12 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 13 |
66-8390-03 |
SPRING-EXTENSION This part replaces 66-8390. Price: $35.15 |
| 14 |
70-7940-03 |
END-SPRING ASM This part replaces 70-7940. Price: $52.21 |
| 15 |
283-69 |
PIN-CLEVIS Price: $3.32 |
| 16 |
99-1298 |
SPRING COVER ASM This part replaces 70-7970. Price: $56.24 |
| 87 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $2.99 |
| 88 |
532410710 |
SPRING.LIFT.ASSIST Price: $9.99 |
| 89 |
819191912 |
WASHER.CLEAR.ZINC Price: $2.99 |
| 90 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 91 |
589464807 |
Links This part replaces 532195181. Price: $14.99 |
| 97 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
