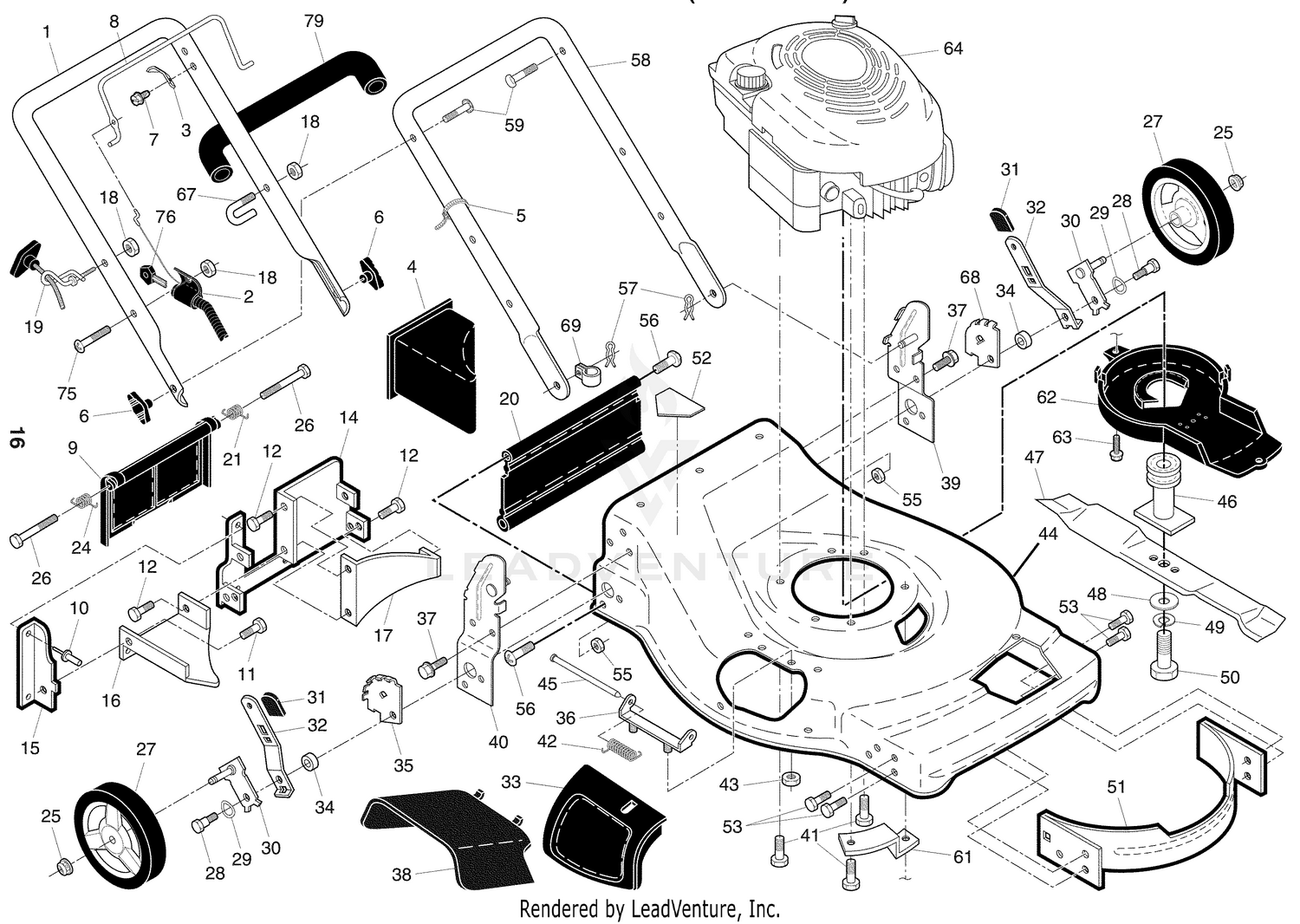

| Ref | Part Number | Description |
|---|
| 1 |
27-6862 |
DISCONTINUED Price: Call Us |
| 2 |
99-6969 |
SEAL-OIL, WHEEL END This part replaces 92-1774. Price: $14.71 |
| 3 |
21-8180 |
BEARING ASM Price: $65.11 |
| 3 |
532850733 |
BRACKET.UPSTOP This part replaces 532125162. Price: $4.99 |
| 4 |
24-9180 |
STRUT AND LEVER ASM Price: $86.76 |
| 4 |
532166649 |
PLUG.MULCH.22RD Price: $27.99 |
| 5 |
21-9450 |
SHIELD-DUST Price: $45.14 |
| 5 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 6 |
43-6810 |
SPIDER-TORQUE Price: $138.50 |
| 6 |
532185577 |
HANDLE.KNOB.BLACK This part replaces 532191856. Price: $7.99 |
| 7 |
21-9430 |
SPRING-RETURN, RH Price: $19.96 |
| 7 |
532750634 |
SCREW Price: $2.99 |
| 8 |
28-0670 |
SEAL-GREASE Price: $19.74 |
| 8 |
532413185 |
BAIL.MZR.CREA.ORANGE Price: $27.99 |
| 9 |
532401813 |
DOOR.REAR.22.PLASTIC.EZ.EMPT This part replaces 532408492. Price: $14.99 |
| 9 |
84-8600 |
SET-SHOES, LINED This part replaces 84-8590. Price: $131.50 |
| 10 |
21-9460 |
RETAINER-LEVER, BRAKE Price: $2.18 |
| 10 |
532128415 |
RIVET BLIND Price: $3.99 |
| 11 |
242-34 |
STUD-DRIVE Price: $11.61 |
| 11 |
532150050 |
SCREW.HXTAP.10-24 Price: $2.99 |
| 12 |
21-8360 |
CLIP-RETAINING Price: $1.29 |
| 12 |
532054583 |
SCREW Price: $4.99 |
| 13 |
28-0680-03 |
DRUM-BRAKE This part replaces 28-0680. Price: $358.84 |
| 14 |
21-9440 |
SPRING-SCREW, ADJUSTING Price: $11.92 |
| 14 |
532195622 |
PLATE.BACK.22.RD/VE/STD This part replaces 532197076. Price: $12.99 |
| 15 |
21-9390 |
SOCKET-SCREW, ADJUSTING Price: $5.56 |
| 15 |
532410545 |
BAFFLE.SIDE.PNT.BLACK This part replaces 532411334. Price: $5.99 |
| 16 |
21-9370 |
SCREW-ADJUSTING Price: $18.80 |
| 16 |
532176655 |
BAFFLE.DISCHRG.22RD.VE.N/SLOTS This part replaces 532177133. Price: $8.99 |
| 17 |
21-9380 |
NUT-PIVOT Price: $26.77 |
| 17 |
532140661 |
BAFFLE.REAR.HSG.ASM.QT.22.BLAC This part replaces 532148941. Price: $6.99 |
| 18 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 18 |
99-5694 |
NUT W/WASHER This part replaces 43-6800. Price: $3.86 |
| 19 |
21-9420 |
SPRING-RETURN, LH Price: $19.96 |
| 19 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532194788. Price: $7.99 |
| 20 |
532413160 |
SKIRT.REAR.22RD/SD.FO/VE Price: $11.99 |
| 21 |
532405421 |
SPRING.LH.22.REAR.DOOR.EZ.EMPT Price: $3.99 |
| 21 |
99-5691 |
SCREW W/WASHER This part replaces 28-0660. Price: $7.18 |
| 22 |
24-8840 |
RING-RETAINING, WHEEL BEARING Price: $37.15 |
| 24 |
532405423 |
SPRING.RH.22.REAR.DOOR.EZ. Price: $3.99 |
| 25 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 26 |
532184193 |
BOLT Price: $4.99 |
| 27 |
532401272 |
WHEEL.8.1.75,H3SPK.RAD3.GY.TB1 This part replaces 532413183. Price: $19.99 |
| 28 |
532174719 |
BOLT SHOULDER 3/8 -16X1 This part replaces 532142748. Price: $7.99 |
| 29 |
532401630 |
WASHER.CURVED.CYLINDRICAL Price: $3.99 |
| 30 |
532401179 |
ARM.ASM.AXLE.5/9.POS.BZP This part replaces 532407871. Price: $5.99 |
| 31 |
532196401 |
KNOB.DELUXE.GRAY Price: $3.99 |
| 32 |
532401621 |
SPRING.SELECTOR.5POS.BZP This part replaces 532406428. Price: $4.99 |
| 33 |
532197029 |
DOOR.MULCH.22.REAR.FWGD.GREY Price: $11.99 |
| 34 |
532401629 |
SPACER.HEIGHT.ADJUSTER Price: $3.99 |
| 35 |
532407492 |
BRACKET.ADJ.5.IDL.RTAB.ADS This part replaces 532410624. Price: $3.99 |
| 36 |
532175735 |
BRACKET.ASM.HINGE.21.FWGD. Price: $4.99 |
| 37 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 38 |
532403819 |
DEFLECTOR.CLIPPING.22.GREY Price: $13.99 |
| 39 |
532419193 |
BRACKET.ASM.HDL.LT.EZEM.22.ORA Price: $12.99 |
| 40 |
532419192 |
BRACKET.ASM.HDL.RT.EZEM.22.ORN Price: $17.99 |
| 41 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 42 |
532193000 |
SPRING.TORSION Price: $5.99 |
| 43 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 45 |
532175650 |
ROD.HINGE.21 Price: $4.99 |
| 46 |
532421176 |
ADAPTER.BLADE/PULLEY.25M This part replaces 532189179. Price: $24.99 |
| 47 |
532406713 |
BLADE.22.MULCH.STANDARD Price: $22.99 |
| 48 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 49 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 50 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 51 |
532170031 |
FRONT BAFFLE KIT Price: $22.99 |
| 52 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532404763. Price: $3.99 |
| 53 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 55 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 56 |
532088652 |
HINGE SCREW Price: $3.99 |
| 57 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 58 |
583757501 |
HANDLE.LOWER.21.FGD.ES.NB.GRAY This part replaces 532403433. Price: $29.99 |
| 59 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 61 |
532188839 |
BRACKET.DEBRIS.SHIELD.BZP This part replaces 532190939. Price: $4.99 |
| 62 |
585472601 |
KIT.SHIELD.DEBRIS.22FD/21RD This part replaces 532405843. Price: $25.99 |
| 63 |
532192325 |
SCREW.HEX.WSH Price: $4.99 |
| 67 |
532401607 |
CLIP.WIREFORM.PACK.TOR Price: $4.99 |
| 68 |
532407493 |
WHEEL ADJUSTING BRACKET LH This part replaces 532410623. Price: $3.99 |
| 69 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
| 75 |
532186159 |
SCREW.(COMBINATION CONTROL) Price: $2.99 |
| 76 |
532180331 |
KEY.MOLDED Price: $5.99 |
| 79 |
532186362 |
GRIP, FOAM Price: $7.99 |
