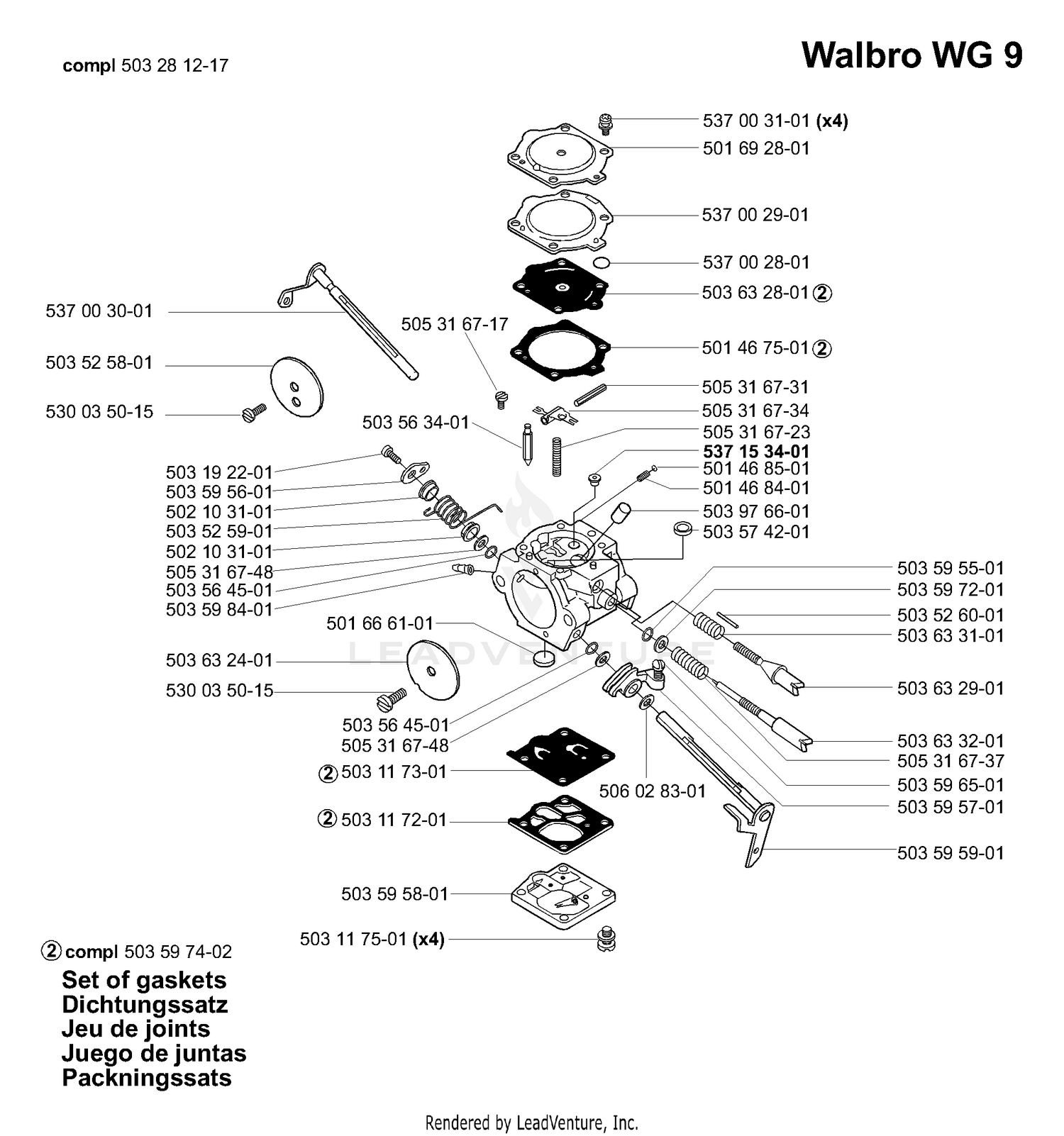

Carburetor Parts
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 501467501 | 501467501 | GASKET Price: $8.99 |
| 501468401 | 501468401 | SPRING Price: $6.99 |
| 501468501 | 501468501 | BALL Price: $6.99 |
| 501666101 | 501666101 | FUEL INLET SCREEN Price: $12.99 |
| 501692801 | 501692801 | COVER DIAPH Price: $3.99 |
| 502103101 | 502103101 | BUSHING Price: $9.99 |
| 503117201 | 503117201 | GASKET Price: $9.99 |
| 503117301 | 503117301 | DIAPHRAGM/PUMP Price: $24.99 |
| 503117501 | 503117501 | SCREW W/ WASHER Price: $7.99 |
| 503192201 | 503192201 | SCREW Price: $2.99 |
| 503525801 | 503525801 | CHOKE SHUTTER Price: $2.99 |
| 503525901 | 503525901 | SPRING,THROTTLE RETURN Price: $27.99 |
| 503526001 | 503526001 | ADJ NEEDLE-LO,CARB Price: $8.40 |
| 503563401 | 503563401 | INLET NEEDLE Price: $14.99 |
| 503564501 | 503564501 | WASHER Price: $32.99 |
| 503574201 | 503574201 | WELCH PLUG Price: $6.99 |
| 503595501 | 503595501 | O-RING Price: $9.99 |
| 503595601 | 503595601 | LEVER Price: $2.99 |
| 503595701 | 503595701 | LEVER Price: $3.99 |
| 503595801 | 503595801 | COVER Price: $37.99 |
| 503595901 | 503595901 | THROTTLE SHAFT Price: $4.55 |
| 503596501 | 503596501 | SCREW Price: $9.99 |
| 503597201 | 503597201 | Washer Price: $0.81 |
| 503598401 | 503598401 | FUEL NIPPLE-CARB Price: $8.31 |
| 503632401 | 503632401 | SHUTTER-THROTTLE Price: $27.99 |
| 503632801 | 503632801 | METERING DIAPHRAGM GSKT Price: $84.99 |
| 503632901 | 503632901 | ADJ SCREW-LO,CARB Price: $39.99 |
| 503633101 | 503633101 | SPRING-MIX NEEDLE Price: $8.99 |
| 503633201 | 503633201 | HI-NEEDLE,CARB Price: $5.99 |
| 503976601 | 503976601 | JET Price: $5.99 |
| 505316717 | 505316717 | SCREW Price: $6.99 |
| 505316723 | 505316723 | LEVER SPRING Price: $2.99 |
| 505316734 | 505316734 | LEVER Price: $11.99 |
| 505316737 | 505316737 | PRESSURE SPRING Price: $12.99 |
| 505316748 | 505316748 | SPACER Price: $1.99 |
| 506028301 | 506028301 | WASHER Price: $11.99 |
| 530035015 | 530035015 | SCREW SHUTTERS Price: $2.99 |
| 537002801 | 537002801 | WASHER Price: $2.99 |
| 537002901 | 537002901 | COVER Price: $3.99 |
| 537003001 | 537003001 | SHAFT Price: $8.99 |
| 537003101 | 537003101 | SCREW Price: $7.99 |
| 537153401 | 537153401 | JET Price: $3.99 |
