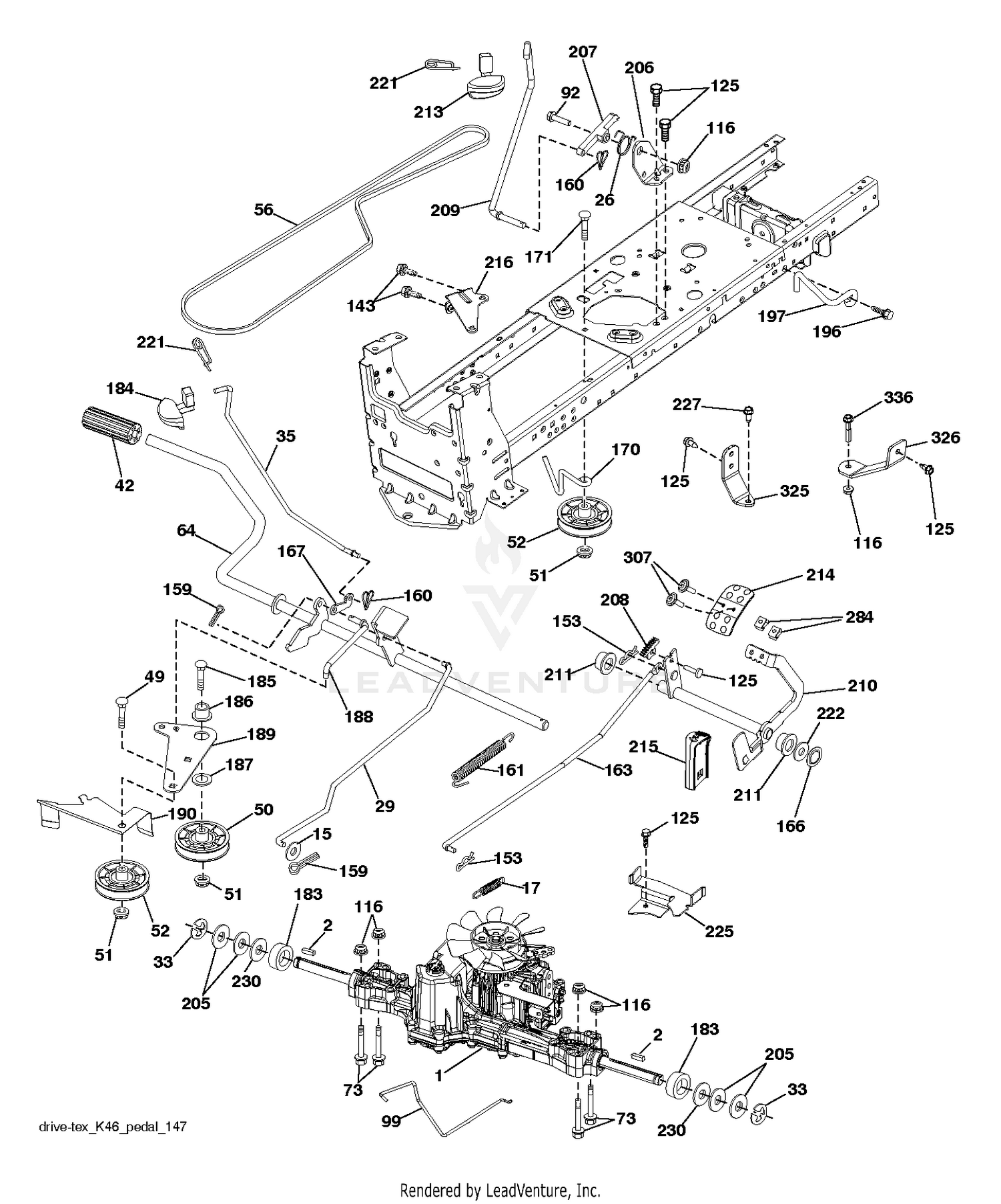

| Ref | Part Number | Description |
|---|
| 1 |
92-1840-03 |
DISCONTINUED This part replaces 92-1840. Price: Call Us |
| 2 |
323-6 |
SCREW-HH Price: $0.66 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 3 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 4 |
94-3429 |
SWITCH-BALL Price: $133.07 |
| 5 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 6 |
3249-5 |
Screw-Round Hd. Price: Call Us |
| 7 |
5-2655 |
CABLE KEEPER Price: $28.04 |
| 8 |
5-2653 |
PULLEY ASM Price: $38.12 |
| 9 |
283-42 |
PIN-CLEVIS Price: $40.05 |
| 10 |
321-9 |
SCREW-HH Price: $0.27 |
| 11 |
84-8440 |
BUSHING Price: $49.87 |
| 12 |
94-1776 |
CYLINDER GUIDE PIN Price: $62.84 |
| 13 |
3272-4 |
PIN-COTTER Price: $0.25 |
| 14 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 15 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 17 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $6.99 |
| 18 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 19 |
61-3260 |
REAR LIFT CABLE Price: $57.92 |
| 20 |
323-23 |
SCREW-HH Price: $2.07 |
| 21 |
61-3240 |
DISCONTINUED Price: Call Us |
| 22 |
61-3210 |
PULLEY ASM Price: $45.48 |
| 23 |
256-1 |
BUSHING Price: $21.99 |
| 24 |
61-3230 |
SPACER Price: $18.93 |
| 25 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 26 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 27 |
3272-4 |
PIN-COTTER Price: $0.25 |
| 28 |
32121-124 |
PIN - ROLL .50 X 1.75 Price: $5.69 |
| 29 |
283-79 |
DISCONTINUED Price: Call Us |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 30 |
5-2656 |
CABLE KEEPER Price: $27.15 |
| 31 |
282-4 |
SHACKLE Price: $32.98 |
| 32 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 33 |
61-3830 |
CHAIN Price: $14.52 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 34 |
71-1380 |
PIN - SWITCH ACTUATOR Price: $51.88 |
| 35 |
583864502 |
Rods This part replaces 583864501. Price: $6.99 |
| 35 |
71-1370 |
SPRING Price: $8.21 |
| 36 |
283-78 |
PIN-CLEVIS Price: $9.25 |
| 37 |
76-0020 |
DISCONTINUED Price: Call Us |
| 38 |
237-42 |
O-RING Price: $2.78 |
| 39 |
340-87 |
FITTING-ELBOW, 45 DEG Price: $18.39 |
| 40 |
237-22 |
O-RING Price: $2.43 |
| 41 |
61-2500 |
HOSE ASM Price: $76.84 |
| 42 |
61-2490 |
HOSE ASM Price: $109.21 |
| 43 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 44 |
HY2562 |
DISCONTINUED This part replaces 256-2. Price: Call Us |
| 45 |
61-2430 |
LIFT HUB WA Price: $116.98 |
| 46 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 47 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 48 |
83-9130 |
CABLE KEEPER Price: $20.60 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 49 |
94-1750-03 |
STOP ASM This part replaces 94-1750. Price: $32.72 |
| 50 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
237-37 |
BUMPER-RUBBER Price: $4.33 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
592855201 |
Belts This part replaces 532130969. Price: $27.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 73 |
596136501 |
Bolts This part replaces 874490540. Price: $3.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 99 |
532415742 |
ROD.SPRING.BYPASS.K46.LT.Z Price: $7.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
593861001 |
Rods This part replaces 532448275. Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $5.99 |
| 171 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532441455. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
585658602 |
Stop This part replaces 585658601. Price: $4.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 210 |
532400980 |
ROCKER.ASM.PEDAL.CONTR Price: $32.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532416863 |
PEDAL.FORWARD.HUSQVARNA.DEALER Price: $32.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 225 |
531149001 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532403319. Price: $5.99 |
| 227 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 230 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 284 |
532417693 |
NUT.U-CHNL.1/4-20.550DP.350PNL Price: $3.99 |
| 307 |
874180412 |
SCREW.MACHINE.CR.1/4-20 Price: $3.99 |
| 325 |
585668505 |
BRACKET TORQUE STRAP This part replaces 585668502. Price: $5.99 |
| 326 |
585670803 |
BRACKET TORQUE STRAP This part replaces 585670802. Price: $4.99 |
| 336 |
587259602 |
Bolts This part replaces 587259601. Price: $3.99 |
