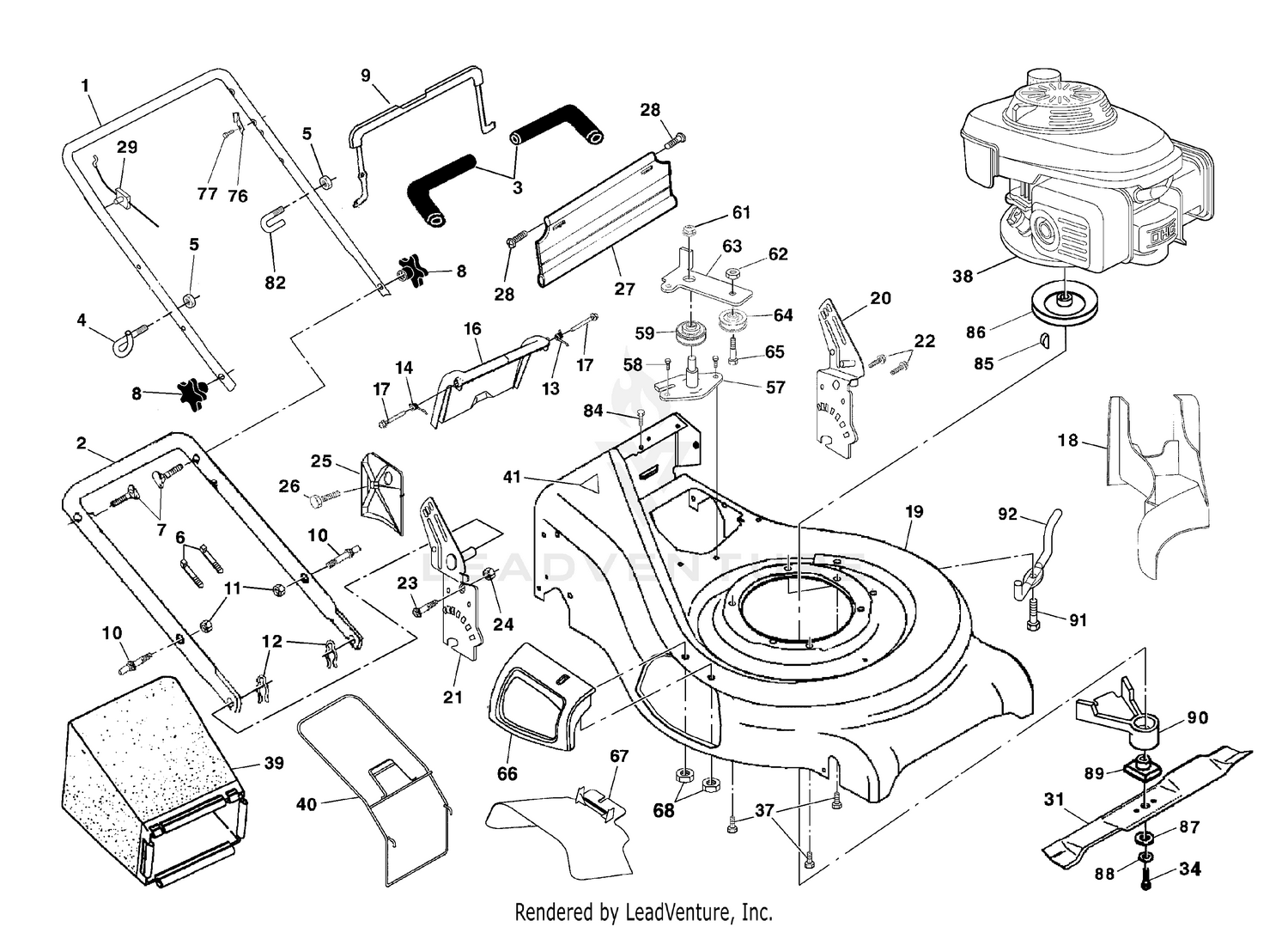

| Ref | Part Number | Description |
|---|
| 2 |
532197202 |
HANDLE.LOWER.21.GREY This part replaces 532174205. Price: $19.99 |
| 3 |
532182748 |
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) Price: $7.99 |
| 4 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532179585. Price: $7.99 |
| 5 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 6 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 7 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532131959. Price: $9.99 |
| 8 |
532185588 |
KNOB.HANDLE.STAR.HUSQ.GRAY Price: $5.99 |
| 9 |
532187940 |
BAIL.DSTRT.FL.AW.ORANGE This part replaces 532190620. Price: $17.99 |
| 10 |
532188821 |
BOLT Price: $4.99 |
| 11 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 12 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 13 |
532186052 |
SPRING.RH.REAR.DOOR.21.RWGD Price: $4.99 |
| 14 |
532186053 |
SPRING.LH.REAR.DOOR.21.RWGD Price: $8.99 |
| 16 |
532190574 |
DOOR.REAR.PLASTIC.21.RWGD.BLAC Price: $36.99 |
| 17 |
532184193 |
BOLT Price: $4.99 |
| 18 |
532198170 |
PLUG.MULCHER.RGD.21. This part replaces 532187535. Price: $32.99 |
| 19 |
532407535 |
HOUSING.21.RWD.ORANGE.WALK. This part replaces 532185601. Price: $139.99 |
| 20 |
532193917 |
BRKT.ASM.HNDL.21.RWGD.LT.BLACK This part replaces 532190563. Price: $11.99 |
| 21 |
532194031 |
BRKT.ASM.HNDL This part replaces 532190564. Price: $32.99 |
| 22 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 23 |
596031601 |
Screws This part replaces 532163183. Price: $2.99 |
| 24 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 25 |
532161333 |
CLIPPING DEFLECTOR Price: $9.99 |
| 26 |
532163409 |
SCREW Price: $3.99 |
| 27 |
532408442 |
SKIRT.REAR.21.RWGD.BLACK(2 2M) This part replaces 532188986. Price: $8.99 |
| 28 |
532088652 |
HINGE SCREW Price: $3.99 |
| 29 |
532183567 |
CABLE.ENGINE BRAKE.MZR This part replaces 532182755. Price: $14.99 |
| 31 |
532189028 |
BLADE.21.PUSH/RWGD/FWG Price: $19.99 |
| 34 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 37 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 39 |
532187240 |
GRASS CATCHER BAG Price: $56.99 |
| 40 |
532194644 |
FRAME.CATCHER.21.RGD.AG This part replaces 532188817. Price: $49.99 |
| 41 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532107339. Price: $3.99 |
| 57 |
532193315 |
BRACKET.IDLER.ASM.EZ This part replaces 532185899. Price: $5.99 |
| 58 |
532057808 |
SCREW Price: $1.99 |
| 59 |
532195326 |
KIT.PULLEY.IDLER. This part replaces 532184543. Price: $27.99 |
| 61 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 62 |
873930500 |
NUT.CENTERLOCK.5/16- This part replaces 532155552. Price: $3.99 |
| 63 |
532185898 |
IDLER ARM Price: $3.99 |
| 64 |
532166043 |
IDLER PULLEY Price: $27.99 |
| 65 |
532160829 |
SHOULDER BOLT Price: $4.99 |
| 66 |
532183058 |
DOOR.ASM.MULCH.21.RWD This part replaces 532190510. Price: $99.99 |
| 67 |
532169699 |
DEFLECTOR.21.MCUT.RWGD.GRAY This part replaces 532190512. Price: $8.99 |
| 68 |
532088349 |
NUT Price: $3.99 |
| 76 |
532850733 |
BRACKET.UPSTOP This part replaces 532125162. Price: $4.99 |
| 77 |
532750634 |
SCREW Price: $2.99 |
| 82 |
532182003 |
CLIP Price: $5.99 |
| 84 |
532054583 |
SCREW Price: $4.99 |
| 85 |
532187723 |
HI-PRO KEY Price: $3.99 |
| 86 |
532184941 |
PULLEY.ENG.25MMM Price: $14.99 |
| 87 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 88 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 89 |
532418373 |
ADAPTER.BLADE.W/KEY.25MM.CE This part replaces 532184590. Price: $9.99 |
| 90 |
532188786 |
DEBRIS SHEILD Price: $6.99 |
| 91 |
532188040 |
SCREW Price: $2.99 |
| 92 |
532188839 |
BRACKET.DEBRIS.SHIELD.BZP This part replaces 532190939. Price: $4.99 |
