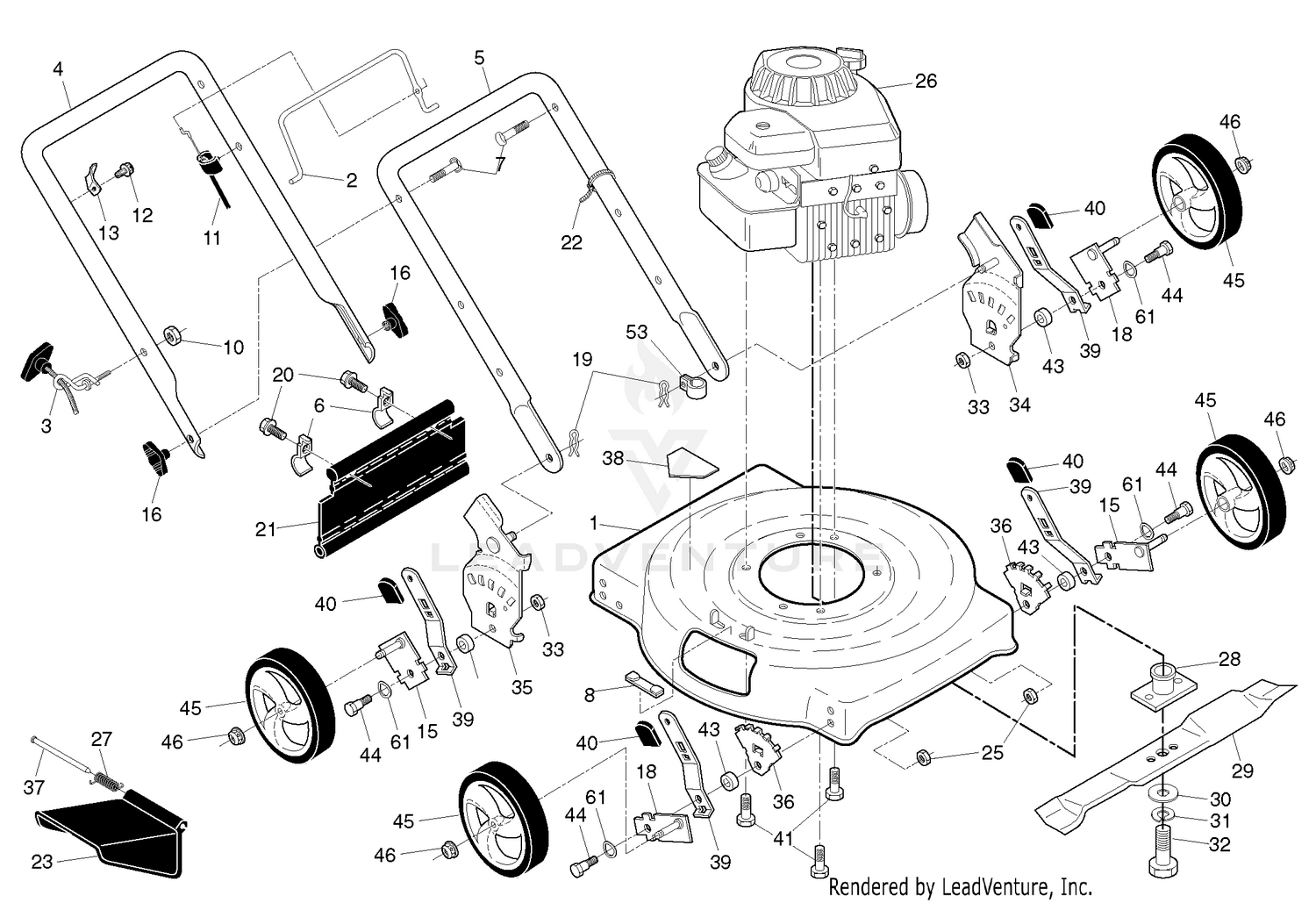

| Ref | Part Number | Description |
|---|
| 1 |
138-8207 |
DAMPER This part replaces 105-7280. Price: $181.45 |
| 2 |
105-7239 |
ROD-THREADED Price: $40.86 |
| 2 |
194177X428 |
Control Bar Price: Call Us |
| 3 |
103-1167 |
JOINT-BALL END, LH Price: $30.99 |
| 3 |
194788 |
Rope Guide Price: Call Us |
| 4 |
108-5208 |
RH LEVER AND GRIP ASM Price: $66.24 |
| 4 |
194179X479 |
Upper Handle Price: Call Us |
| 5 |
108-5209 |
LH LEVER AND GRIP ASM Price: $91.15 |
| 5 |
169708X479 |
Lower Handle Price: Call Us |
| 6 |
120-5562-03 |
LEVER-CONTROL, MOTION This part replaces 108-9833-03. Price: $81.51 |
| 6 |
192301X004 |
Bracket, Rear Skirt Price: Call Us |
| 7 |
191574 |
Handle Bolt 5/16-18 Price: Call Us |
| 7 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 8 |
105-7199 |
END-ROD, ISOLATED Price: $93.34 |
| 8 |
161622 |
Clip, Closeout Price: Call Us |
| 9 |
3250-35 |
SCREW-PPH Price: $3.24 |
| 10 |
132004 |
Locknut, Hex 1/4-20 Price: Call Us |
| 10 |
323-7 |
SCREW-HH Price: $0.65 |
| 11 |
1-633102 |
BEARING-FLANGE, SIDE Price: $17.99 |
| 11 |
183281 |
Engine Zone Control Cable Price: Call Us |
| 12 |
323-6 |
SCREW-HH Price: $0.66 |
| 12 |
750634 |
Screw, Hex Head, Threaded, Rolled #10-24 x 1/2 Price: Call Us |
| 13 |
3256-53 |
WASHER-FLAT Price: $0.25 |
| 13 |
429930X004 |
Up-Stop Bracket Price: Call Us |
| 14 |
99-3410 |
SWITCH Price: $95.63 |
| 15 |
322-9 |
SCREW-HH Price: $3.09 |
| 15 |
401174X004 |
Axle Arm Assembly, Left Front & Right Rear Price: Call Us |
| 16 |
189713X428 |
Handle Knob Price: Call Us |
| 16 |
32120-46 |
RING-RETAINING Price: $1.99 |
| 17 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 18 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 18 |
401175X004 |
Axle Arm Assembly, Right Front & Left Rear Price: Call Us |
| 19 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 19 |
51793 |
Hairpin Cotter Price: Call Us |
| 20 |
139-1728 |
BOLT-HH FT This part replaces 9114524. Price: $1.29 |
| 20 |
750097 |
Screw, Tapping, Hex Washer Head #10-24 Price: Call Us |
| 21 |
32128-26 |
NUT-FLANGE Price: $5.89 |
| 21 |
413160 |
Rear Skirt Price: Call Us |
| 22 |
322-6 |
SCREW-HH Price: $0.45 |
| 22 |
664-26 |
Wire Tie Price: Call Us |
| 23 |
108-9824 |
NUT-SWITCH Price: $1.97 |
| 23 |
160831 |
Discharge Guard Price: Call Us |
| 24 |
108-9830 |
SHAFT-PIVOT Price: $40.68 |
| 25 |
105-3455 |
BUSHING Price: $2.89 |
| 25 |
426589 |
Nut, Hex, Flangelock 5/16-18 Price: Call Us |
| 26 |
105-3481 |
WASHER-THRUST Price: $1.19 |
| 27 |
32152-6 |
NUT-LOCK, CONE Price: $7.99 |
| 27 |
408585 |
Torsion Spring Price: Call Us |
| 28 |
108-9829-03 |
LEVER-DAMPER Price: $24.06 |
| 28 |
851514 |
Blade Adapter Price: Call Us |
| 29 |
108-9831 |
HUB-CONTROL Price: $124.06 |
| 30 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 30 |
851074 |
Hardened Washer Price: Call Us |
| 31 |
3219-3 |
NUT-HEX Price: $0.34 |
| 31 |
850263 |
Helical Lockwasher 3/8 Price: Call Us |
| 32 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 32 |
851084 |
Screw, Hex Head, Grade 8, 3/8-24 x 1-3/8 Price: Call Us |
| 33 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 33 |
73930500 |
Nut, Hex, Flangelock 5/16-18 Price: Call Us |
| 34 |
1-303105 |
YOKE-ADJUSTABLE Price: $11.99 |
| 34 |
400781X479 |
Wheel Bracket Support (Left) Price: Call Us |
| 35 |
1-603737 |
BOLT-RETURN, NEUTRAL Price: $7.99 |
| 35 |
400782X479 |
Wheel Bracket Support (Right) Price: Call Us |
| 36 |
1-603735 |
BUSHING-FLANGED Price: $5.69 |
| 36 |
407494X005 |
Wheel Bracket Adjuster Price: Call Us |
| 37 |
160833 |
Hinge Rod Price: Call Us |
| 37 |
3219-2 |
NUT-HEX Price: $0.37 |
| 38 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 38 |
404763 |
Danger Decal Price: Call Us |
| 39 |
1-603807 |
SPRING-RETURN, NEUTRAL Price: $3.29 |
| 39 |
401621X004 |
Selector Spring Price: Call Us |
| 40 |
283-1 |
PIN-CLEVIS Price: $1.63 |
| 40 |
87877 |
Selector Knob Price: Call Us |
| 41 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 41 |
150406 |
Screw, Hex Head, Threaded, Rolled 3/8-16 x 1 Price: Call Us |
| 42 |
3220-16 |
NUT-HEX JAM, LH Price: $1.79 |
| 43 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 43 |
401629 |
Spacer Price: Call Us |
| 44 |
401638 |
Shoulder Bolt 5/16-18 x .33 Price: Call Us |
| 45 |
193850X471 |
Wheel & Tire Assembly Price: Call Us |
| 46 |
409148 |
Nut, Hex, Flangelock 3/8-16 Price: Call Us |
| 53 |
197991 |
Clip, Cable Price: Call Us |
| 61 |
401630 |
Washer, Curved, Cylindrical Price: Call Us |
