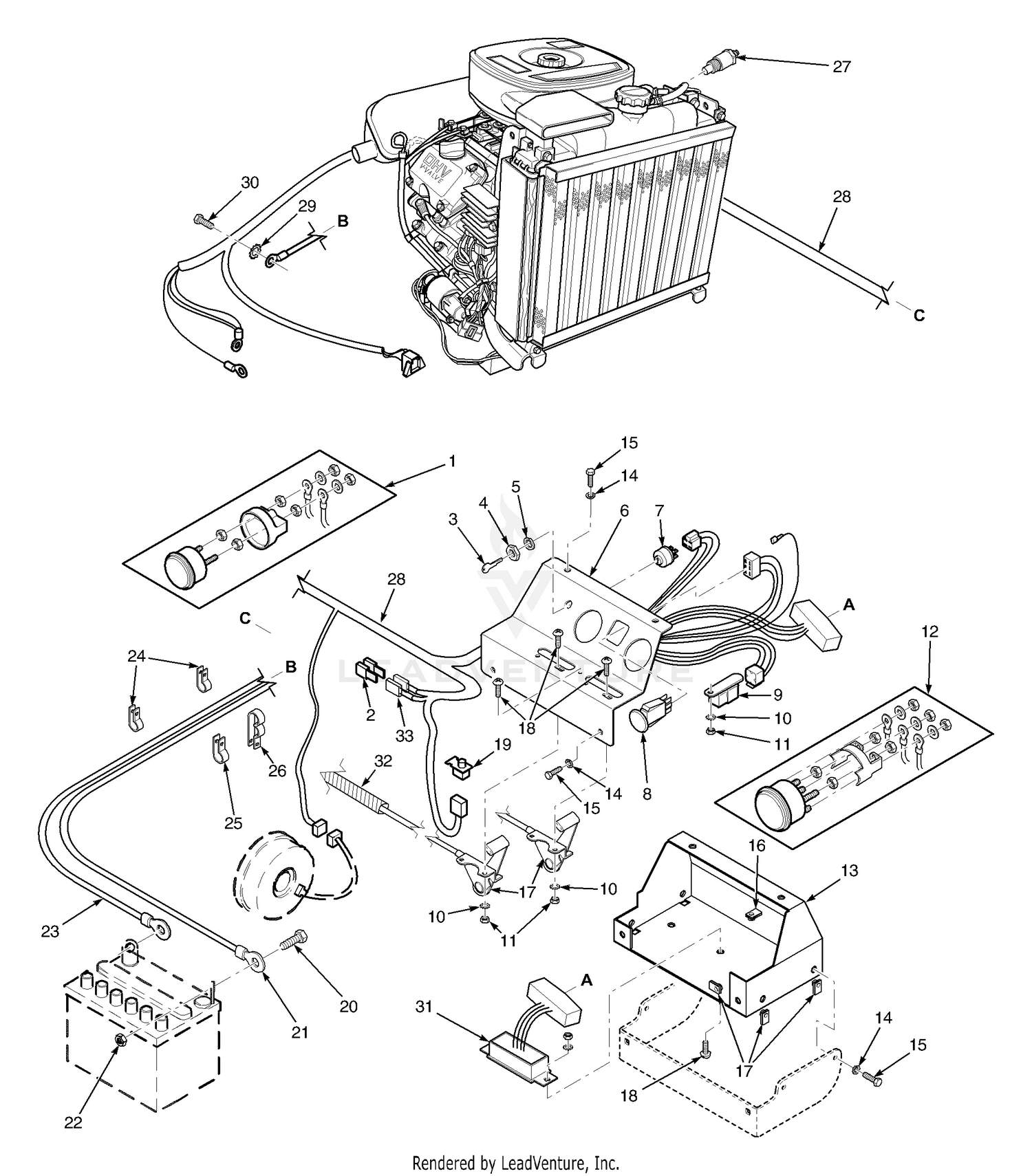

| Ref | Part Number | Description |
|---|
| 1 |
481755 |
Ammeter Price: Call Us |
| 2 |
48298 |
Fuse, 20 AMP Price: Call Us |
| 3 |
48017-02 |
Key & Ring Assembly Price: Call Us |
| 4 |
48017-04 |
Nut, Hex 5/8-32 Price: Call Us |
| 5 |
48017-03 |
Lockwasher, 5/8" Internal Price: Call Us |
| 6 |
423526 |
Instrument Panel, Top w/Decals Price: Call Us |
| 7 |
48798 |
Key Switch Price: Call Us |
| 8 |
463034 |
SEALED PTO SWITCH KIT This part replaces 481687. Price: Call Us |
| 9 |
48788 |
Relay Price: Call Us |
| 10 |
04031-01 |
Lockwasher, #10 External Tooth Price: Call Us |
| 11 |
04020-01 |
Nut, Hex #10-32 Price: Call Us |
| 12 |
481183 |
Water Temp. Gauge (STT - KA Only) Price: Call Us |
| 13 |
451081 |
Base, Instrument Panel Price: Call Us |
| 14 |
04030-02 |
Lockwasher, 1/4" Price: Call Us |
| 15 |
04001-01 |
Bolt, Hex Head 1/4-20 x 3/4" Price: Call Us |
| 16 |
04110-01 |
U-Nut, 1/4-20 Price: Call Us |
| 17 |
481662 |
Throttle And Choke Controls Price: Call Us |
| 18 |
04010-01 |
Screw, Phillips Washer Head #10-32 x 1/2" Price: Call Us |
| 19 |
481638 |
Switch, Interlock-Seat Price: Call Us |
| 20 |
04001-44 |
Bolt, Hex Head 1/4-20 x 1/2” Price: Call Us |
| 21 |
48029-06 |
Cable, Battery - Red Price: Call Us |
| 22 |
04020-02 |
Nut, Hex 1/4-20 Price: Call Us |
| 23 |
48029-11 |
Cable, Battery - Black Price: Call Us |
| 24 |
48030-09 |
Clamp, Cable 1/2" ID. Price: Call Us |
| 25 |
48030-10 |
Clamp, Cable 3/4" ID. Price: Call Us |
| 26 |
48030-11 |
Clamp, Cable Price: Call Us |
| 27 |
481670 |
Sending Unit, Water Temp. Price: Call Us |
| 28 |
482657 |
Wire Harness, STT Liquid Cooled Price: Call Us |
| 29 |
04031-03 |
Lockwasher, 5/16" External Tooth Price: Call Us |
| 30 |
04002-12 |
Bolt, Hex Head M8-1.25 x 20 Price: Call Us |
| 31 |
483599 |
Electric Module This part replaces 482313. Price: Call Us |
| 32 |
481945 |
HEATSHIELD, FLEXIBLE (PER INCH) This part replaces 481945-01. Price: Call Us |
| 33 |
48430 |
Fuse Holder w/Fuse and Connector Price: Call Us |
