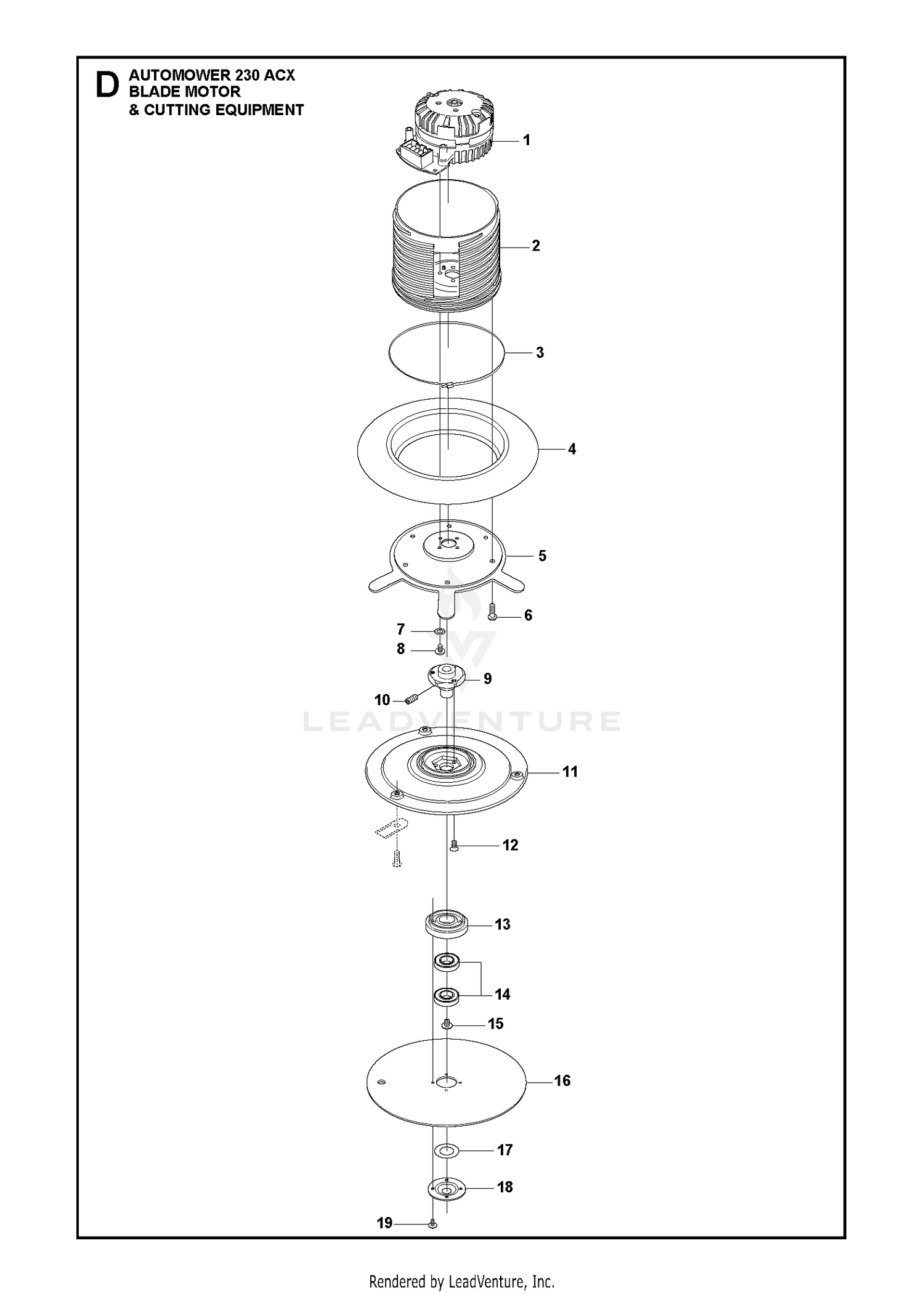

BLADE MOTOR CUTTING EQUIPMENT
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 535123601 | MOTOR Price: $109.99 |
| 2 | 510144101 | MOTOR BOWL CUTTING MOTOR Price: $24.99 |
| 3 | 525251401 | TIE WRAP Price: $3.99 |
| 4 | 535122301 | BELLOWS Price: $49.99 |
| 5 | 522771502 | PLATE Price: $19.99 |
| 6 | 575543314 | SCREW 14MM Price: $3.99 |
| 7 | 734113741 | WASHER Price: $3.99 |
| 8 | 502239101 | SCREW Price: $5.99 |
| 9 | 535075501 | HUB CUTTING DISC Price: $8.99 |
| 10 | 728828501 | SCREW Price: $1.99 |
| 11 | 535126301 | BLADE DISC Price: $17.99 |
| 12 | 535130502 | SCREW TORX M4X8 8.8 NYLON PATC This part replaces 535130501. Price: $2.99 |
| 13 | 535126401 | BEARING Price: $7.99 |
| 14 | 535075702 | SPACER Price: $11.99 |
| 15 | 535076001 | SCREW Price: $3.99 |
| 16 | 535075901 | PLATE SKID Price: $17.99 |
| 17 | 535082501 | GASKET Price: $2.99 |
| 18 | 535081501 | COVER SKID PLATE Price: $5.99 |
