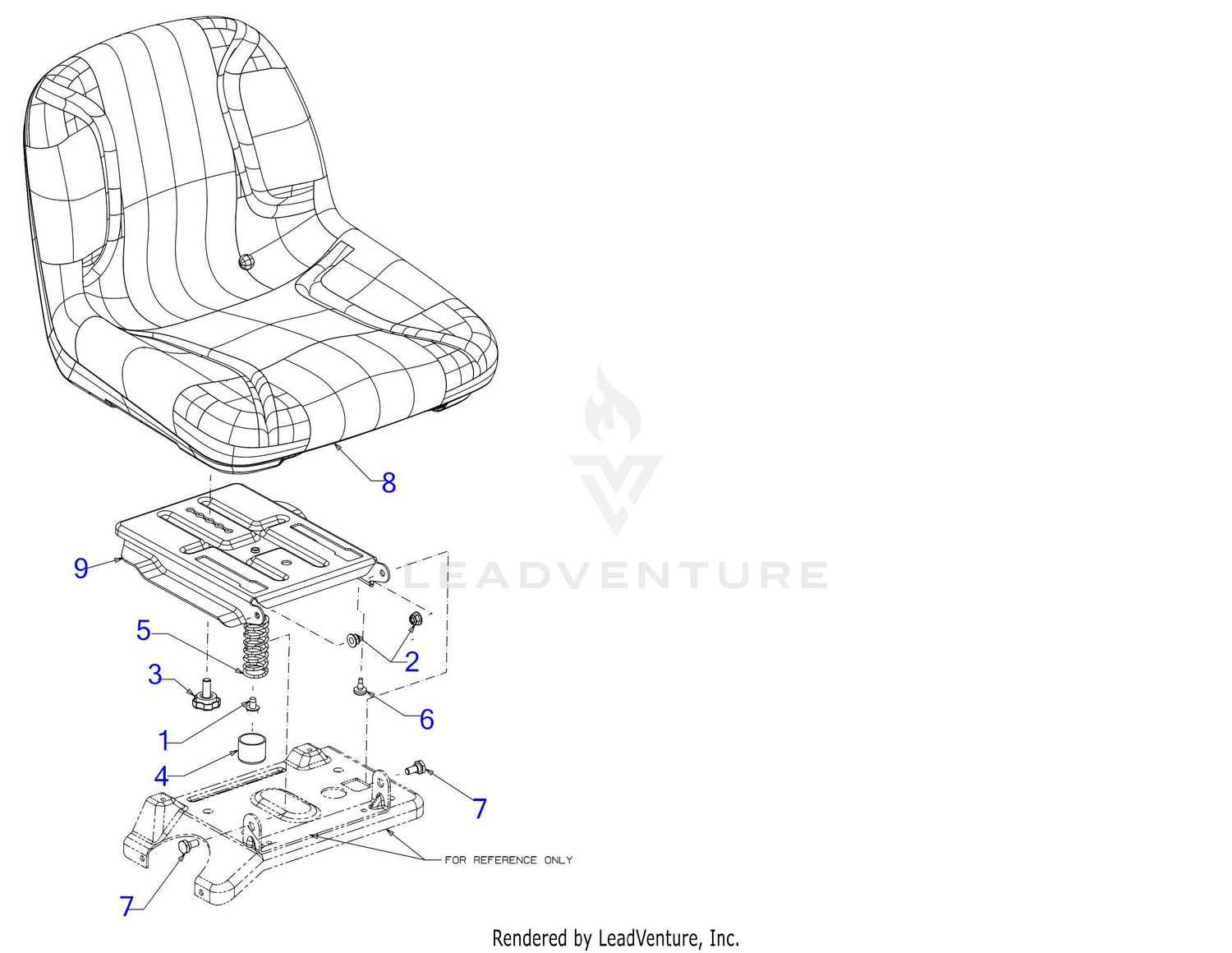

Seat
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 710-0607 | SCREW 5/16-18 x .500 Price: $6.06 |
| 2 | 712-04063 | FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 3 | 720-04009A | SEAT ADJUSTMENT KNOB Price: $14.52 |
| 4 | 720-05005 | SEAT SPRING CAP Price: $2.77 |
| 5 | 732-04905 | SEAT SPRING Price: $3.49 |
| 6 | 735-0199A | Rubber Bumper This part replaces 935-0199A. Price: $6.89 |
| 7 | 738-0140 | Shoulder Screw, .435 x .178, 5/16 x .56 This part replaces 938-0140. Price: $4.93 |
| 8 | 757-04088A | HIGH BACK SEAT (BLACK) Price: $231.11 |
