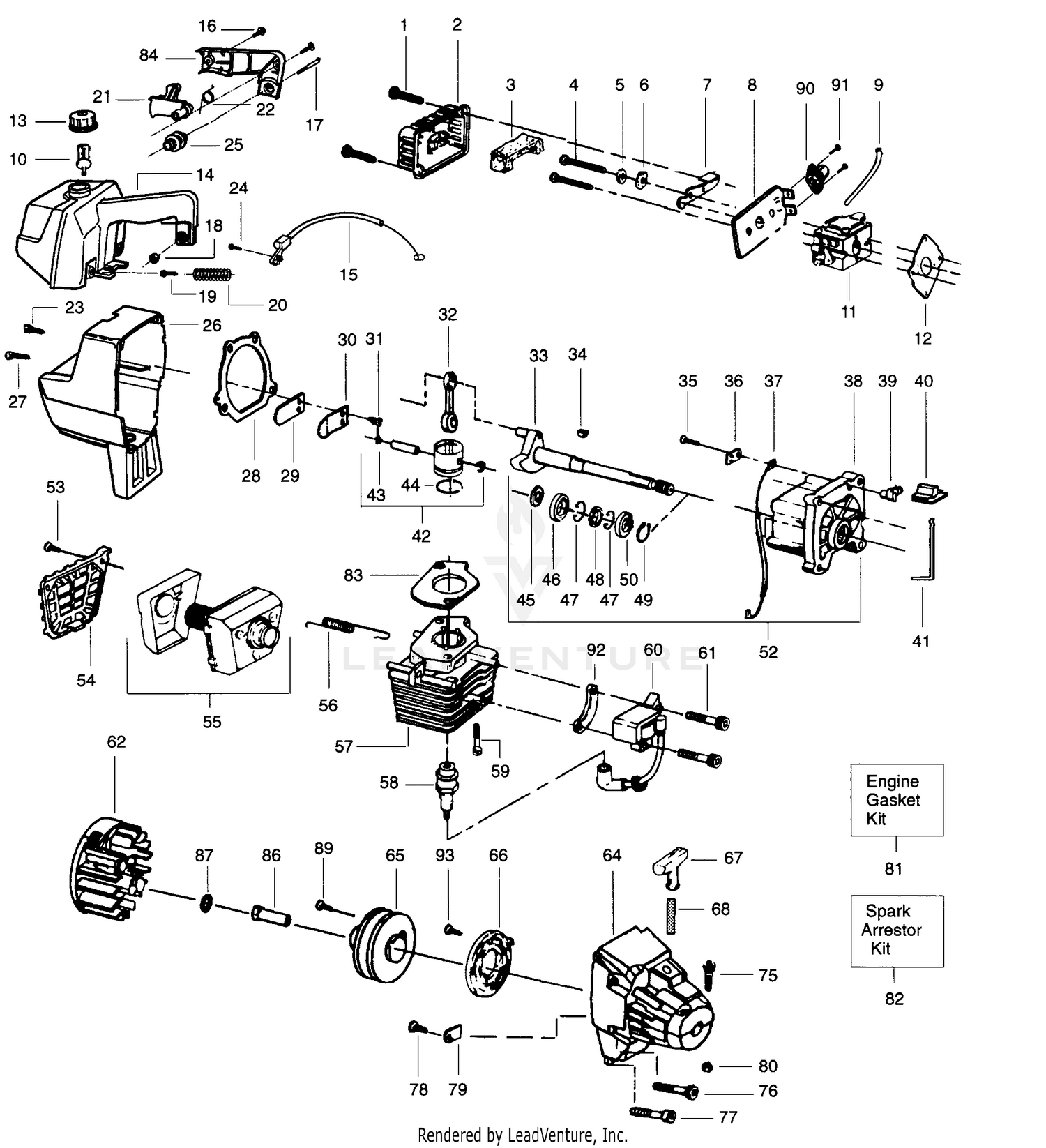

| Ref | Part Number | Description |
|---|
| 1 |
530015773 |
Screw Price: $1.99 |
| 2 |
530027529 |
Air Filter Cover Price: $3.42 |
| 3 |
530027530 |
Air Filter Price: $1.99 |
| 4 |
530015849 |
Screw Price: $1.99 |
| 5 |
530015852 |
Spacer Price: $1.99 |
| 6 |
530015254 |
Wave Washer Price: $1.99 |
| 7 |
530038103 |
Choke Shutter Price: $1.99 |
| 8 |
530027527 |
Air Filter Plate - Type 1 Price: $2.99 |
| 8 |
530037930 |
Air Filter Plate - Type 2-3 & Model GTI16D Price: $2.99 |
| 9 |
530069247 |
Fuel Line Price: $3.99 |
| 9 |
530069571 |
Return Line - Type 2-3 & Model GTI16D Price: $2.99 |
| 10 |
530095646 |
Assy-Fuel Pickup This part replaces 530014362. Price: $2.99 |
| 11 |
530069648 |
Carburetor - WA-219B - Type 2-3 & Model GTI16D Price: $3.33 |
| 11 |
545081825 |
KIT CARBURETOR ASSY This part replaces 530069637. Price: $49.99 |
| 12 |
530019156 |
Carburetor Gasket Price: $3.99 |
| 13 |
530014347 |
Fuel Cap Ass'y. Price: $4.99 |
| 14 |
530029552 |
Handle & Tank Ass'y - Type 1 Price: $23.40 |
| 14 |
530047102 |
Handle & Tank Ass'y - Type 2-3 & Model GTI16D Price: $10.20 |
| 15 |
530037499 |
Type 3 & 4 This part replaces 530027964. Price: $3.99 |
| 16 |
530015805 |
Screw Price: $1.99 |
| 17 |
530015809 |
Shoulder Bolt Price: $0.99 |
| 18 |
530015807 |
Nut Price: $1.99 |
| 19 |
530015713 |
Screw Price: $1.99 |
| 20 |
530027926 |
Rear Isolator Spring Price: $1.99 |
| 21 |
530027924 |
Throttle Trigger Price: $0.99 |
| 22 |
530027925 |
Throttle Spring Price: $1.99 |
| 23 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 24 |
530015775 |
Screw Price: $1.99 |
| 25 |
530024256 |
Isolator Price: $3.99 |
| 26 |
530027923 |
Shroud Price: $8.24 |
| 27 |
530015771 |
Screw Price: $1.99 |
| 28 |
530019154 |
Gasket-C'case/Shroud Price: $1.99 |
| 29 |
530027593 |
Reed Price: $1.99 |
| 30 |
530027594 |
Reed Stop Price: $1.99 |
| 31 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 32 |
530010960 |
Connecting Rod Ass'y. Price: $14.99 |
| 33 |
530010945 |
Crankshaft Ass'y. See Service Ref. 1 Price: $49.19 |
| 34 |
530015126 |
Flywheel Key Price: $1.99 |
| 35 |
530015780 |
Screw Price: $1.99 |
| 36 |
530027546 |
Switch Insulator Price: $2.99 |
| 37 |
530027547 |
Lead Wire Price: $1.99 |
| 38 |
530014016 |
Crankcase Ass'y. (Incl. 46-48 & 50) Price: Call Us |
| 39 |
530027545 |
Switch Ramp Price: $1.99 |
| 40 |
530038309 |
Switch Button Price: $1.99 |
| 41 |
530027959 |
Switch Spring Price: $1.99 |
| 42 |
530069240 |
Piston Kit (Incl. 43,44 & pin) Model GTI 17LE Price: Call Us |
| 42 |
530069899 |
Piston Kit This part replaces 530069275. Price: $19.99 |
| 43 |
530015162 |
Piston Pin Retainer Price: $1.99 |
| 44 |
530025875 |
Piston Ring, Models GTI 16, GTI 16 SUPER & GTI 16D Price: $4.99 |
| 44 |
530027369 |
Piston Ring, Model GTI 17LE Price: $4.99 |
| 46 |
530032103 |
Inner Bearing Price: Call Us |
| 47 |
530015787 |
Retaining Ring Price: $1.99 |
| 48 |
530019158 |
Crankshaft Seal Price: $2.99 |
| 49 |
530015789 |
Retaining Ring Price: $2.99 |
| 50 |
530032102 |
Outer Bearing Price: $8.99 |
| 52 |
530014004 |
Crankcase & Crankshaft Ass'y. (Incl. 33, 38 & 46-50) Price: Call Us |
| 53 |
530015717 |
Screw Price: $1.99 |
| 54 |
530027781 |
Muffler Guard Price: $1.99 |
| 55 |
530069310 |
Muffler Kit This part replaces 530069257. Price: $9.99 |
| 56 |
530036409 |
Muffler Spring Price: $1.99 |
| 57 |
530012247 |
Cylinder, Model GTI 17LE Price: $12.99 |
| 57 |
530069626 |
Cylinder, Models GTI 16, GTI 16 SUPER, GTI 16D Price: $1.92 |
| 58 |
503235112 |
Spark Plug This part replaces 952030201. Price: $5.99 |
| 58 |
530030077 |
Spark Plug, - Type 1 Price: $2.27 |
| 59 |
530015239 |
Screw Price: $1.99 |
| 60 |
530039134 |
Ignition Module Kit Price: $44.99 |
| 61 |
530015816 |
Screw This part replaces 530015128. Price: $1.99 |
| 62 |
530047198 |
Flywheel Ass'y. Price: $23.99 |
| 64 |
530014044 |
Fan Housing Price: Call Us |
| 65 |
530071387 |
Kit-Starter Pulley This part replaces 530069291. Price: $6.99 |
| 66 |
545008010 |
STARTER SPRING This part replaces 530029395. Price: $3.99 |
| 67 |
530027569 |
Starter Handle Price: $1.99 |
| 68 |
530069232 |
Rope Kit Price: $3.99 |
| 75 |
530015767 |
Screw Price: $1.99 |
| 76 |
530015770 |
Screw Price: Call Us |
| 77 |
530015769 |
Screw Price: $1.99 |
| 78 |
530015496 |
Screw Price: $1.99 |
| 79 |
530027523 |
Pulley Retainer Price: $2.99 |
| 80 |
530015768 |
Locknut Price: $1.99 |
| 81 |
530069276 |
Engine Gasket Kit (Inc. 12,28,83) Price: $4.99 |
| 82 |
952701612 |
Spark Arrestor Kit Price: Call Us |
| 83 |
530019267 |
GASKET CYL W/ ADHESIVE This part replaces 530019178. Price: $2.99 |
| 84 |
530027917 |
Handle Cover Price: $22.99 |
| 86 |
530027953 |
Drive Coupling Price: $1.99 |
| 87 |
530015828 |
Washer Price: $1.99 |
| 89 |
530016080 |
Screw-Pulley Price: $1.99 |
| 90 |
530038874 |
Primer Ass'y. - Type 2-3 & Model GTI16D Price: $5.99 |
| 91 |
530016091 |
Screw-Prim. - Type 2-3 & Model GTI16D Price: $1.99 |
| 92 |
530027525 |
Spacer, Model GTI 17LE Price: $0.99 |
| 93 |
530015882 |
Screw-Starter Spring - Type 3 & Model GTI16D Price: $1.99 |
