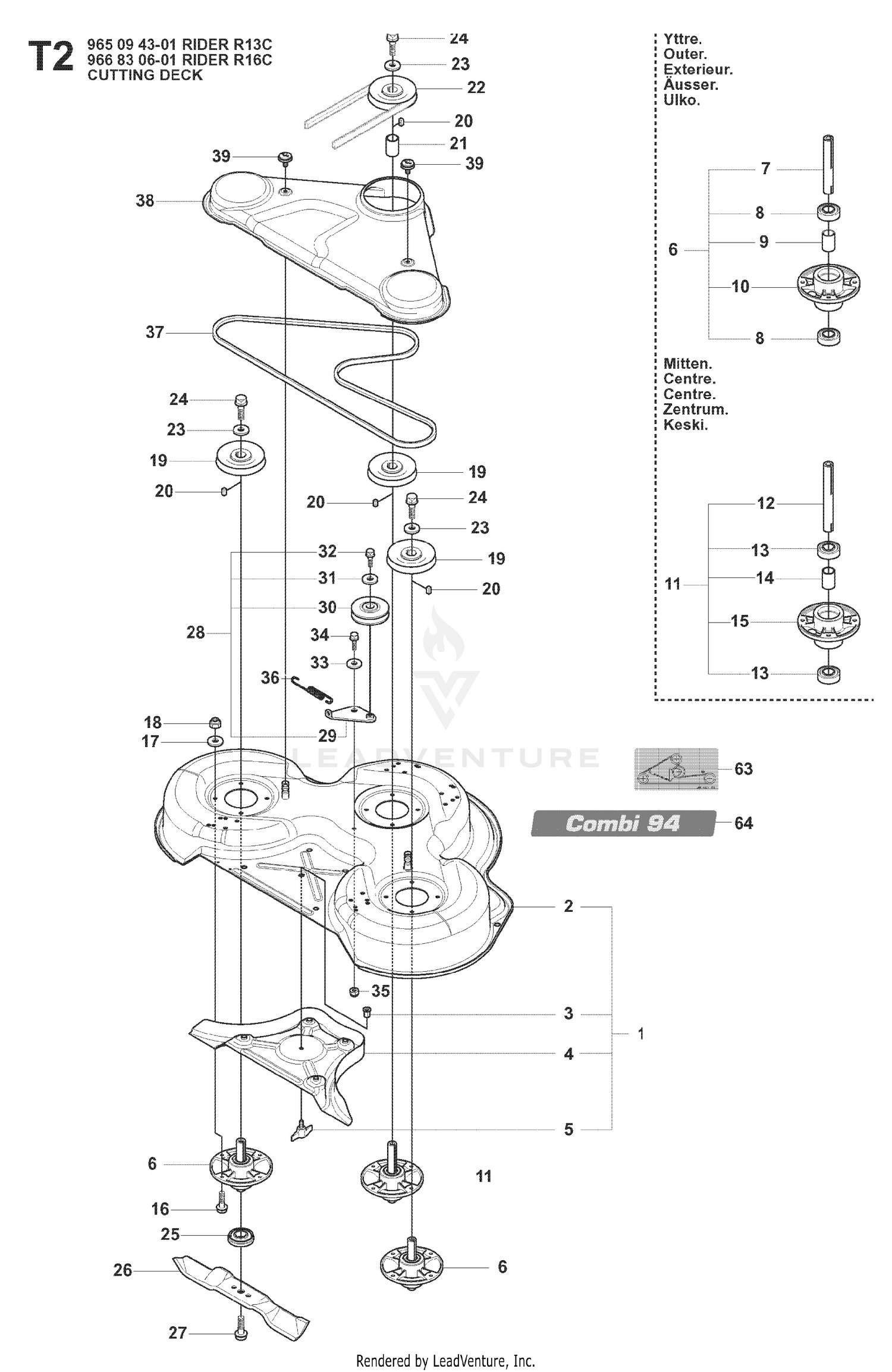

MOWER DECK / CUTTING DECK 2
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 544065704 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 544065506 | NEEDS DESCRIPTION Price: Call Us |
| 3 | 104-3396 | SCREW-HH Price: $0.75 |
| 3 | 506916201 | NUT Price: $4.99 |
| 4 | 544065801 | PLUG C93 & C94 Price: $44.99 |
| 4 | 99-8662 | TUBE-SPRING Price: $21.55 |
| 5 | 3218-5 | NUT-JAM Price: $0.27 |
| 5 | 544066101 | KNOB Price: $4.99 |
| 6 | 576384102 | BLADE HOUSING ASSY This part replaces 544065901. Price: $79.99 |
| 6 | 87-7270 | WASHER-THRUST Price: $0.89 |
| 7 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 7 | 544067902 | SHAFT Price: $37.99 |
| 8 | 3290-357 | NUT-HHF, WHIZ Price: $0.61 |
| 8 | 738230434 | BEARING Price: $17.99 |
| 9 | 119-4275 | SPRING-COMPRESSION Price: $60.71 |
| 9 | 544068001 | SPACER Price: $11.99 |
| 10 | 576384201 | BEARING HOUSING This part replaces 544067801. Price: $29.99 |
| 11 | 544065903 | NEEDS DESCRIPTION Price: Call Us |
| 12 | 110-4069 | BRACKET Price: $5.57 |
| 12 | 544067901 | SHAFT Price: $39.99 |
| 13 | 115-2007 | ROD-SPRING Price: $34.97 |
| 13 | 738230434 | BEARING Price: $17.99 |
| 14 | 544068001 | SPACER Price: $11.99 |
| 14 | 92-2762 | PIN-HAIR Price: $1.09 |
| 15 | 119-4162 | SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 15 | 576384201 | BEARING HOUSING This part replaces 544067801. Price: $29.99 |
| 16 | 535423801 | BOLT Price: $4.99 |
| 17 | 107-7400 | PIN-LYNCH Price: $9.56 |
| 17 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 18 | 110-4058 | BRACKET-CHAIN Price: $32.43 |
| 18 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 19 | 112-8935 | FRAME-CENTER Price: $455.11 |
| 19 | 506922101 | PULLEY Price: $29.99 |
| 20 | 107-2979 | BOLT-SHOULDER Price: $3.94 |
| 20 | 506533501 | KEY Price: $3.99 |
| 21 | 3234-19 | SCREW-HHF Price: $1.73 |
| 21 | 544068003 | SPACING SLEEVE Price: $12.99 |
| 22 | 130-8094 | WASHER-PLAIN Price: $5.25 |
| 22 | 506778601 | PULLEY Price: $49.99 |
| 23 | 108-4279 | SPACER-FRAME Price: $8.34 |
| 23 | 734117441 | WASHER Price: $3.99 |
| 24 | 117-3752 | TUBE-SUPPORT Price: $68.98 |
| 24 | 506675402 | BOLT Price: $5.99 |
| 25 | 112-8937 | CARRIER FRAME ASM Price: $893.50 |
| 25 | 544064901 | BLADE BRACKET Price: $7.99 |
| 26 | 302-5 | FITTING-GREASE Price: $0.59 |
| 26 | 579652510 | BLADE Price: $22.99 |
| 27 | 506675402 | BOLT Price: $5.99 |
| 27 | 67-9410 | WASHER Price: $2.04 |
| 28 | 506797301 | Price: Call Us |
| 28 | 94-8946 | WASHER-THRUST Price: $1.96 |
| 30 | 586964001 | Belt Tensioners This part replaces 506793201. Price: $34.99 |
| 31 | 734116441 | SPACER Price: $3.99 |
| 32 | 506558302 | BOLT Price: $3.99 |
| 33 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 34 | 725245171 | SCREW Price: $2.08 |
| 35 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 36 | 506533101 | SPRING Price: $9.99 |
| 37 | 589530701 | BELT Price: $49.99 |
| 38 | 544066301 | BELT COVER C93 & C94 GREY Price: $44.99 |
| 39 | 544400501 | SCREW Price: $3.99 |
| 63 | 506789701 | Decal Price: $21.55 |
| 64 | 544238101 | Price: Call Us |
