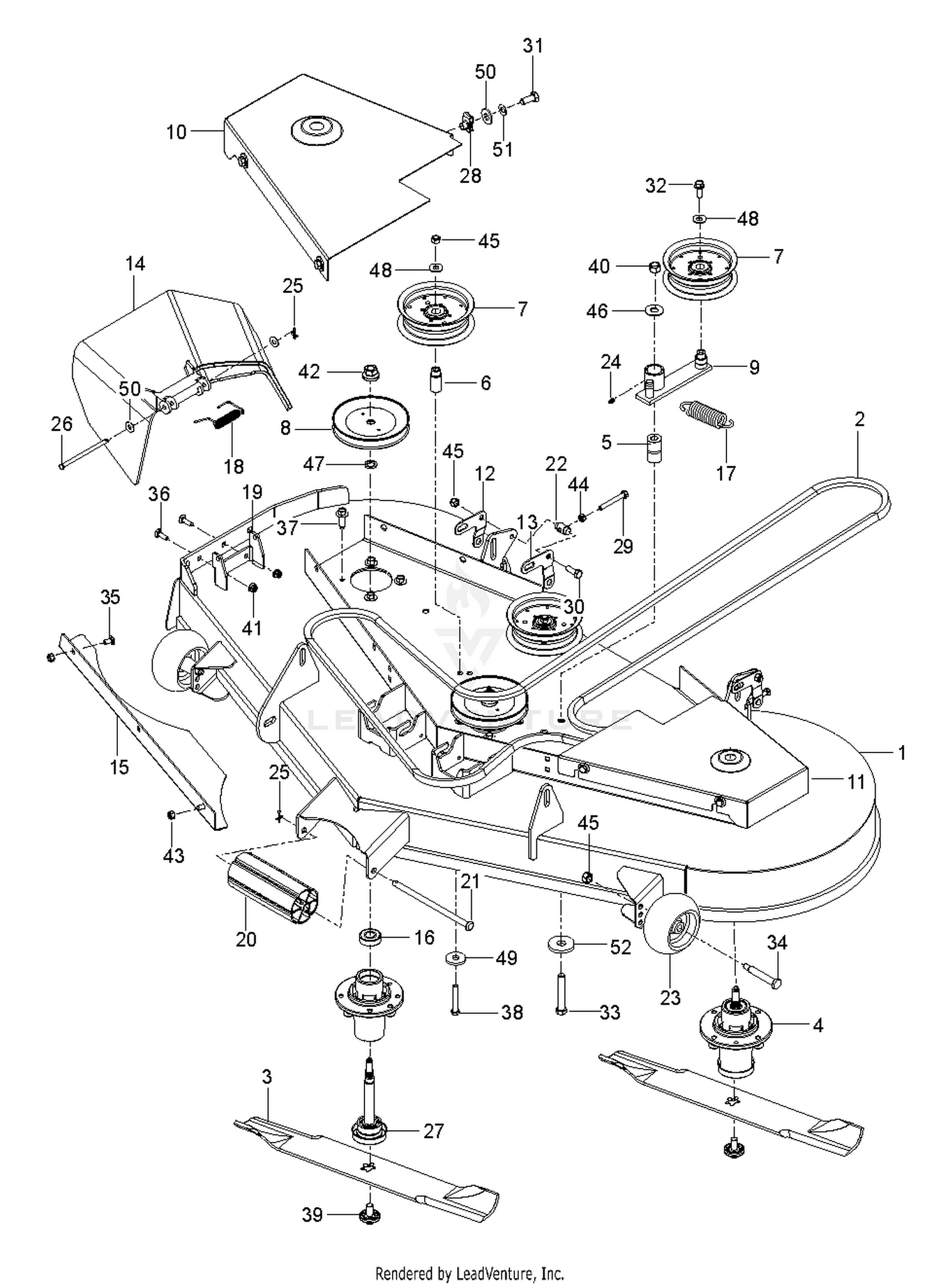

MOWER DECK / CUTTING DECK
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 522795901 | BELT, DECK This part replaces 539104335. Price: $79.99 |
| 3 | 539113312 | BLADE, 21" Price: $24.99 |
| 4 | 539131898 | MANDREL ASM, CAST IRON Price: $69.99 |
| 5 | 539103427 | PIVOT BUSHING Price: $7.99 |
| 6 | 596841501 | Bushings Price: $7.99 |
| 7 | 589766102 | Pulleys Price: $27.99 |
| 8 | 539113300 | PULLEY Price: $19.99 |
| 10 | 539113319 | BELT SHIELD, RH ORANGE Price: $79.99 |
| 11 | 584385601 | BELT.SHIELD.LH.ORANGE This part replaces 539113322. Price: $74.99 |
| 12 | 584859402 | BRACKET.RT.PNT.MS431 Price: $3.99 |
| 13 | 584859404 | BRACKET.LH.PNT.MS431 Price: $3.99 |
| 14 | 539110734 | DISCHARGE CHUTE 61" Price: $44.99 |
| 15 | 539113317 | CONFINEMENT PLATE 61 Price: $34.99 |
| 16 | 532110485 | BEARING Price: $11.99 |
| 17 | 539103256 | SPRING Price: $9.99 |
| 18 | 596646001 | Springs Price: $3.99 |
| 19 | 581606002 | BRACKET MZ CHUTE Price: $9.99 |
| 20 | 532176066 | NOSE ROLLER 48" Price: $11.99 |
| 21 | 594092501 | Rods Price: $5.99 |
| 22 | 596565501 | Nuts Price: $9.99 |
| 23 | 532133957 | WHEEL GAGE DONUT Price: $11.99 |
| 24 | 596899901 | GSPW Zerks Price: $2.99 |
| 25 | 596029501 | Pins Price: $2.99 |
| 26 | 595935501 | Pins Price: $2.99 |
| 27 | 597023501 | MANDRELS Price: $24.99 |
| 28 | 539104763 | U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 29 | 596437101 | Screws Price: $2.99 |
| 30 | 596564401 | Bolts Price: $3.99 |
| 31 | 596030501 | SCREW HEXAGON HEAD SCREW 5/16- Price: $3.99 |
| 32 | 596583101 | Screws Price: $3.99 |
| 33 | 596435301 | Bolts Price: $3.99 |
| 34 | 596434403 | BOLT SHOULDER 3/8-16X3.38 Price: $1.99 |
| 35 | 596039401 | BOLT ROUND HEAD SQUARE NECK BO Price: $2.99 |
| 36 | 596435701 | Bolts Price: $2.99 |
| 37 | 584953901 | BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 38 | 596564405 | Bolts Price: $2.99 |
| 39 | 532193003 | BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 40 | 596135601 | GSPW NUTS Price: $3.99 |
| 41 | 594944401 | NUT HEXAGON FLANGE 5/16-18 ST Price: $5.99 |
| 42 | 596134801 | Nuts Price: $1.00 |
| 43 | 596583702 | Nuts Price: $2.99 |
| 44 | 596582601 | Nuts Price: $2.99 |
| 45 | 596240901 | GSPW Nuts Price: $2.99 |
| 46 | 595316401 | Washers Price: $2.99 |
| 47 | 532187690 | WASHER.SPACER.MANDREL Price: $3.99 |
| 48 | 596433701 | GSPW Washers Price: $2.99 |
| 49 | 596770301 | Washers Price: $4.99 |
| 50 | 596134901 | GSPH Price: $2.99 |
| 51 | 596565001 | Washers Price: $2.99 |
| 52 | 596437501 | Washers Price: $8.99 |
