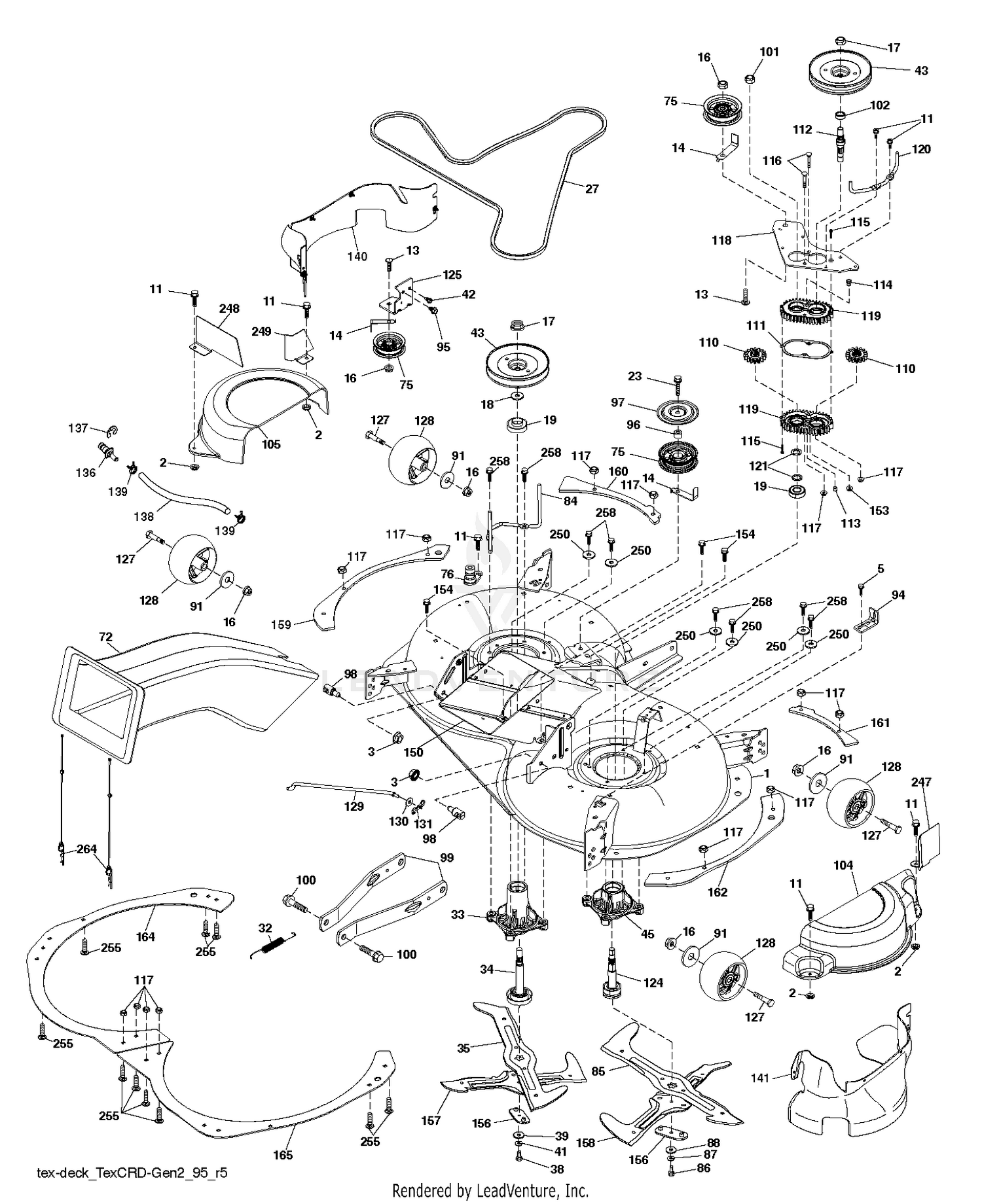

| Ref | Part Number | Description |
|---|
| 1 |
581928401 |
DECK SVCX 107HP EZMUL 498 This part replaces 580973301. Price: $279.99 |
| 2 |
532423062 |
PALNUT 1/4 Price: $2.99 |
| 5 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 11 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 13 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 14 |
597024901 |
Keepers This part replaces 532156085. Price: $3.99 |
| 16 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 17 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 18 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 19 |
585323901 |
BEARING.MANDREL.TOP.EXTENDED Price: $12.99 |
| 23 |
599972501 |
BOLT This part replaces 817490628. Price: $2.99 |
| 27 |
532445887 |
BELT.ELECT.MOWER.DRIVE 97.8 EL Price: $49.99 |
| 32 |
583584001 |
SPRING.DRVE.107&97CM.ELEC.DECK This part replaces 532446205. Price: $9.99 |
| 33 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 34 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 587256501. Price: $49.99 |
| 35 |
532180583 |
BLADE.3N1.LH.CRD Price: $27.99 |
| 38 |
590884002 |
Screws This part replaces 590884001. Price: $1.99 |
| 39 |
581526501 |
WASHER.7/16.FLAT Price: $2.99 |
| 41 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 42 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 43 |
583568201 |
PULLEY.MANDREL.5.438 PD This part replaces 532443239. Price: $44.99 |
| 45 |
532137152 |
HOUSING.MANDREL.44/46" VENT Price: $34.99 |
| 72 |
581454103 |
CHUTE.SLOTTED.HOLES.TEX.CRD.II Price: $79.99 |
| 75 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 84 |
583567901 |
KEEPER.BELT.MANDREL PULLEY This part replaces 532443235. Price: $9.99 |
| 85 |
532180584 |
BLADE.3N1.RH.CRD Price: $27.99 |
| 86 |
583117001 |
BOLT.3/8-24X1.25GR8. LHTHRD This part replaces 532181713. Price: $3.99 |
| 87 |
596238701 |
Washers This part replaces 539990118. Price: $3.99 |
| 88 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 91 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 94 |
532197250 |
BRKT.CLUTCH.CABLE Price: $4.99 |
| 95 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 96 |
583261101 |
SPACER.NORAM.CRD This part replaces 532400271. Price: $4.99 |
| 97 |
583119101 |
SHIELD.IDLER.MOWER.CRD. This part replaces 532182061. Price: $4.99 |
| 98 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 99 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 100 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 101 |
596040601 |
Hardware This part replaces 873680900. Price: $3.99 |
| 102 |
532402511 |
SPACER BEARING Price: $3.99 |
| 104 |
581714001 |
COVER.MANDREL.107.RH.GEN.2 Price: $19.99 |
| 105 |
532444755 |
COVER.MANDREL.107.LH.GEN.2 Price: $17.99 |
| 110 |
587934801 |
CRD.SPUR.GEAR Price: $11.99 |
| 111 |
583514001 |
GASKET.GEARCASE.97.CRD (2 2) This part replaces 532436979. Price: $4.99 |
| 112 |
583571601 |
SHAFT.CRD.GEARCASE.ADAPTER This part replaces 532443852. Price: $14.99 |
| 114 |
588170501 |
VENT.BREATHER.1/8 NPT Price: $8.99 |
| 115 |
583608901 |
SCREW.TORX#10-24X1 This part replaces 818031016. Price: $2.99 |
| 116 |
594976601 |
Bolts This part replaces 872110414. Price: $1.99 |
| 117 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 118 |
583567701 |
ARM.CLUTCHING.107.TEX.CRD This part replaces 532443232. Price: $17.99 |
| 120 |
583568001 |
KEEPER.RH.MANDREL.BELT This part replaces 532443236. Price: $9.99 |
| 121 |
583514101 |
WASHER.687.I.D.X.1 OD.X.062THK This part replaces 532436985. Price: $2.99 |
| 124 |
583514201 |
MANDREL SHAFT NON/GREASEABLE This part replaces 532436986. Price: $37.99 |
| 125 |
583514801 |
BRACKET.IDLER.CHASSIS.97.CRD This part replaces 532436994. Price: $8.99 |
| 127 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 128 |
589527301 |
WHEEL.GAUGE.RALLY Price: $8.99 |
| 129 |
583568101 |
ROD.SWAY.97&107.CRDI&II This part replaces 532443237. Price: $17.99 |
| 130 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 131 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 136 |
583544201 |
WASHOUT.PORT.REMOTE.HOOKUP This part replaces 532439639. Price: $3.99 |
| 137 |
812000029 |
RING CLIP Price: $3.99 |
| 139 |
532440742 |
HOSE.3/8.CLAMP (2 2) Price: $2.99 |
| 140 |
501580001 |
GUARD.ASSEMBLY.107.LH.FRENCH Price: $32.99 |
| 141 |
501579602 |
GUARD.ASSEMBLY.107.RH.FRENCH Price: $34.99 |
| 150 |
596012302 |
CHUTE LOWER.WLDT.107.CRDII Price: $54.99 |
| 153 |
596040601 |
Hardware This part replaces 593274601. Price: $3.99 |
| 154 |
583254901 |
SCREW.1/4-20X.50-0T30 This part replaces 532199855. Price: $2.99 |
| 156 |
583588901 |
ADAPTOR.CROSSBLADE.107 This part replaces 532446995. Price: $5.99 |
| 157 |
532446993 |
BLADE 107CM.CROSS.BLADE Price: $27.99 |
| 158 |
532180425 |
BLADE.CROSS.RH.CRD.107 Price: $39.99 |
| 159 |
585309405 |
REINFORCE.PLATE.LH.FT.X431 Price: $6.99 |
| 160 |
585309505 |
REINFORCE.PLATE.LHS.BOLT.431 Price: $11.99 |
| 161 |
585316005 |
REINFORCE.PLATE.RH.FRT.X431 Price: $11.99 |
| 162 |
585316105 |
REINFORCE.PLAT.RH.SD.BLT.X431 Price: $22.99 |
| 164 |
589358502 |
BAFFLE.PLATE.PNT.107CRD.LT.BLK Price: $44.99 |
| 165 |
587426102 |
BAFFLE.PNT.107.CRD.PLATE.RT.BK Price: $34.99 |
| 247 |
589009602 |
GUARD BELT.CRD.RH.ISO X431 BLA Price: $8.99 |
| 248 |
581263602 |
GUARD.STEEL.CRD.MANDREL.COV.FR Price: $17.99 |
| 249 |
581263502 |
GUARD.STEEL.CRD.MANDREL.COV.FR Price: $12.99 |
| 250 |
819111212 |
WASHER Price: $4.99 |
| 255 |
592807801 |
BOLT CUP HEAD SQUARE NECK 1/4- This part replaces 539109800. Price: $2.99 |
| 258 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $3.99 |
| 264 |
589392902 |
Retainers This part replaces 589392901. Price: $3.99 |
