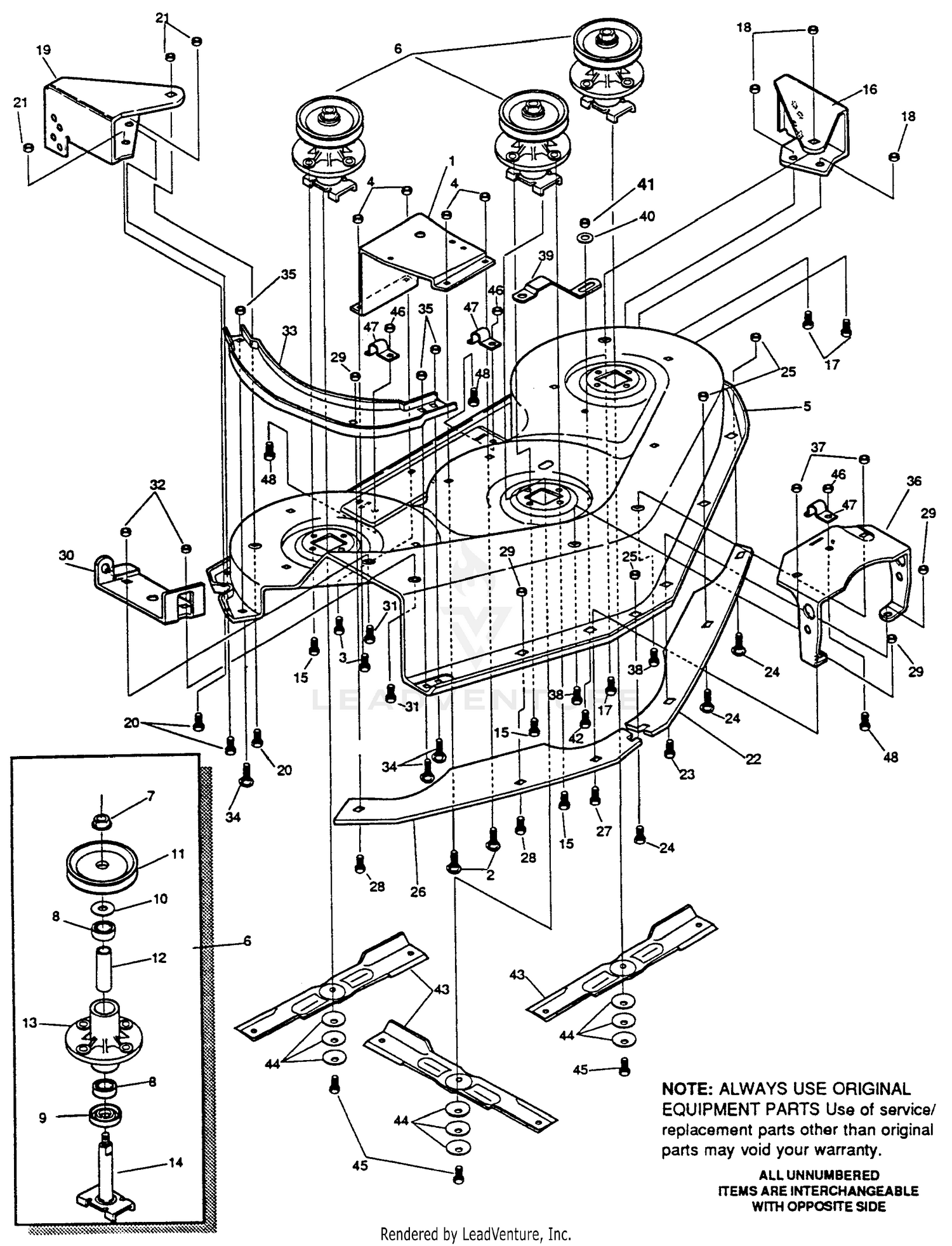

| Ref | Part Number | Description |
|---|
| 1 |
312699 |
Support Bracket 46" Price: Call Us |
| 2 |
126211 |
Bolt, 5/16-18X .63 CARR Price: Call Us |
| 3 |
120228 |
Screw, 5/16-18X .63 HHC Price: Call Us |
| 4 |
1498 |
Nut, 5/16-18 REGHEXCTRLK Price: Call Us |
| 5 |
313229 |
Mower Deck 46" Sus. SD Price: Call Us |
| 6 |
302297 |
Quill, Assy 46" Deck Price: Call Us |
| 7 |
1282 |
Nut, 7/16-20 WDFLLK Price: Call Us |
| 8 |
49562 |
Bearing, Ball Price: Call Us |
| 9 |
50616 |
Dust Shield Price: Call Us |
| 10 |
56280 |
Spacer Price: Call Us |
| 11 |
56391 |
Quill Pulley BRZ 960 Price: Call Us |
| 12 |
58128 |
Spacer, L&RH Quill Price: Call Us |
| 13 |
58162 |
Casting LH Price: Call Us |
| 14 |
302295 |
Saddle & Shaft Assy. Price: Call Us |
| 15 |
50634 |
Screw, 5/16-18X .87 HX WA TAP Price: Call Us |
| 16 |
312708 |
Bracket Gauge Wheel L.H. Price: Call Us |
| 17 |
120228 |
Screw, 5/16-18X .63 HHC Price: Call Us |
| 18 |
1498 |
Nut, 5/16-18 REGHEXCTRLK Price: Call Us |
| 19 |
312700 |
Bracket Gauge Wheel R.H. Price: Call Us |
| 20 |
120228 |
Screw, 5/16-18X3/4 HHC Price: Call Us |
| 21 |
1498 |
Nut, 5/16-18 REGHEXCTRLK Price: Call Us |
| 22 |
312710 |
Baffle 46" Deck Price: Call Us |
| 23 |
120228 |
Screw, 5/16-18 x .63 Price: Call Us |
| 24 |
126211 |
Bolt, 5/16-18X .63 CARR Price: Call Us |
| 25 |
1498 |
Nut, 5/16-18 REGHEXCTRLK Price: Call Us |
| 26 |
312706 |
Baffle RH 46" Deck Price: Call Us |
| 27 |
120228 |
Screw, 5/16-18 x 5/8 In. Price: Call Us |
| 28 |
126211 |
Bolt, 5/16-18X .63 CARR Price: Call Us |
| 29 |
1498 |
Nut, 5/16-18 REGHEXCTRLK Price: Call Us |
| 30 |
312703 |
Bracket Chute Mount Price: Call Us |
| 31 |
120228 |
Screw, 5/16-18X .63 HHC Price: Call Us |
| 32 |
1498 |
Nut, 5/16-18 REGHEXCTRLK Price: Call Us |
| 33 |
312702 |
Brace, Skid Price: Call Us |
| 34 |
126211 |
Carriage Bolt, 5/16-18 x 5/8 In. Price: Call Us |
| 35 |
1498 |
Nut, 5/16-18 REGHEXCTRLK Price: Call Us |
| 36 |
312705 |
Lift Support Bracket Price: Call Us |
| 37 |
1498 |
Nut, 5/16-18 REGHEXCTRLK Price: Call Us |
| 38 |
120228 |
Screw, 5/16-18X .63 HHC Price: Call Us |
| 39 |
314020 |
Support Bracket Price: Call Us |
| 40 |
120393 |
Washer, Flat .344X .69X.065 Price: Call Us |
| 41 |
1498 |
Nut, 5/16-18 REGHEXCTRLK Price: Call Us |
| 42 |
120228 |
Screw, 5/16-18X .63 HHC Price: Call Us |
| 43 |
317071 |
Blade, 16.13 High-Lift Price: Call Us |
| 44 |
2483 |
Washer,.39IDX1.25DX.07 BELLVIL Price: Call Us |
| 45 |
39573 |
Screw, 3/8-24X1.00 NYLHHCGR5 Price: Call Us |
| 46 |
1498 |
Nut 5/16-18 REG HEX CTR ,LK Price: Call Us |
| 47 |
312701 |
Clip Price: Call Us |
