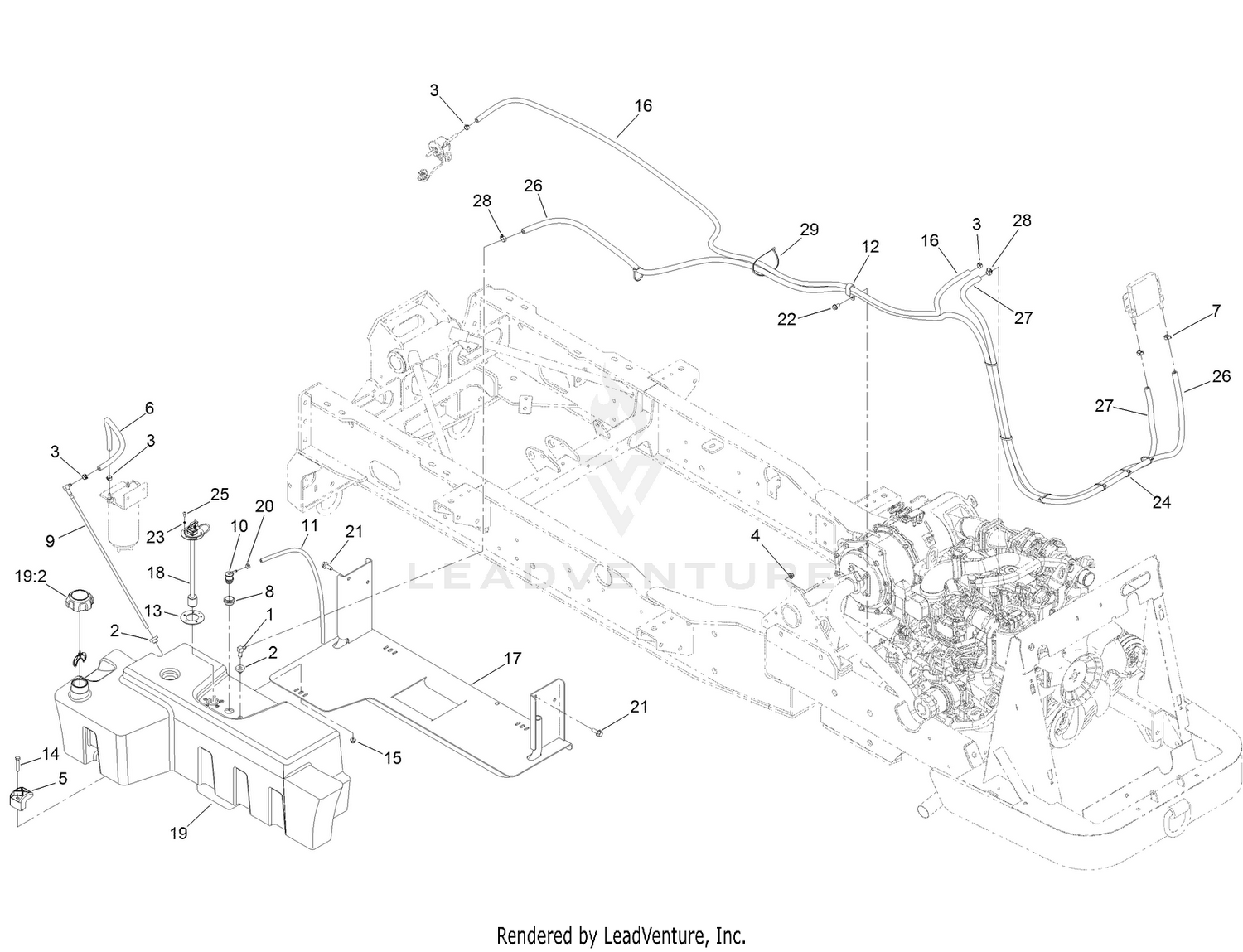

Fuel Tank and Line Assembly
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 46-6550 | FITTING-ELBOW, 90 DEG Price: $37.39 |
| 2 | 46-6560 | BUSHING Price: $2.94 |
| 3 | 92-2379 | CLAMP-HOSE Price: $0.34 |
| 4 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 5 | 107-4543 | CLAMP Price: $13.47 |
| 6 | 110-4109 | HOSE-FUEL Price: $11.24 |
| 7 | 103-1988 | Clamp-Hose Price: $0.69 |
| 8 | 114-0284 | GROMMET Price: $2.39 |
| 9 | 114-3836 | PIPE-STAND Price: $30.00 |
| 10 | 114-0285 | VALVE-ROLLOVER Price: $15.40 |
| 11 | 119-8149 | HOSE-FUEL Price: $12.55 |
| 12 | 120-1959 | CLAMP Price: $1.97 |
| 13 | 121-1707 | GASKET-FUEL, VITON Price: $22.66 |
| 14 | 125-7944 | SCREW-HH Price: $0.92 |
| 15 | 130-6655 | NUT-FLANGE, NI Price: $0.22 |
| 16 | 136-9708 | HOSE-FUEL Price: $52.91 |
| 17 | 136-9730-03 | SUPPORT-TANK Price: $408.96 |
| 18 | 136-9739 | GAUGE-FUEL, FLOAT Price: $130.71 |
| 19 | 136-9740 | FUEL TANK ASM Price: $512.64 |
| 20 | 2412-80 | CLAMP-HOSE Price: $4.39 |
| 21 | 3234-42 | SCREW-HHF Price: $1.10 |
| 22 | 3234-7 | SCREW-HHF Price: $1.99 |
| 23 | 3253-15 | WASHER-LOCK Price: $1.49 |
| 24 | 3290-378 | TIE-CABLE Price: $0.79 |
| 25 | 32122-24 | SCREW-PTH Price: $0.27 |
| 26 | 136-9978 | HOSE-FUEL Price: $88.26 |
| 27 | 136-9979 | HOSE-FUEL Price: $38.86 |
| 28 | 2412-108 | CLAMP-WORM Price: $1.29 |
