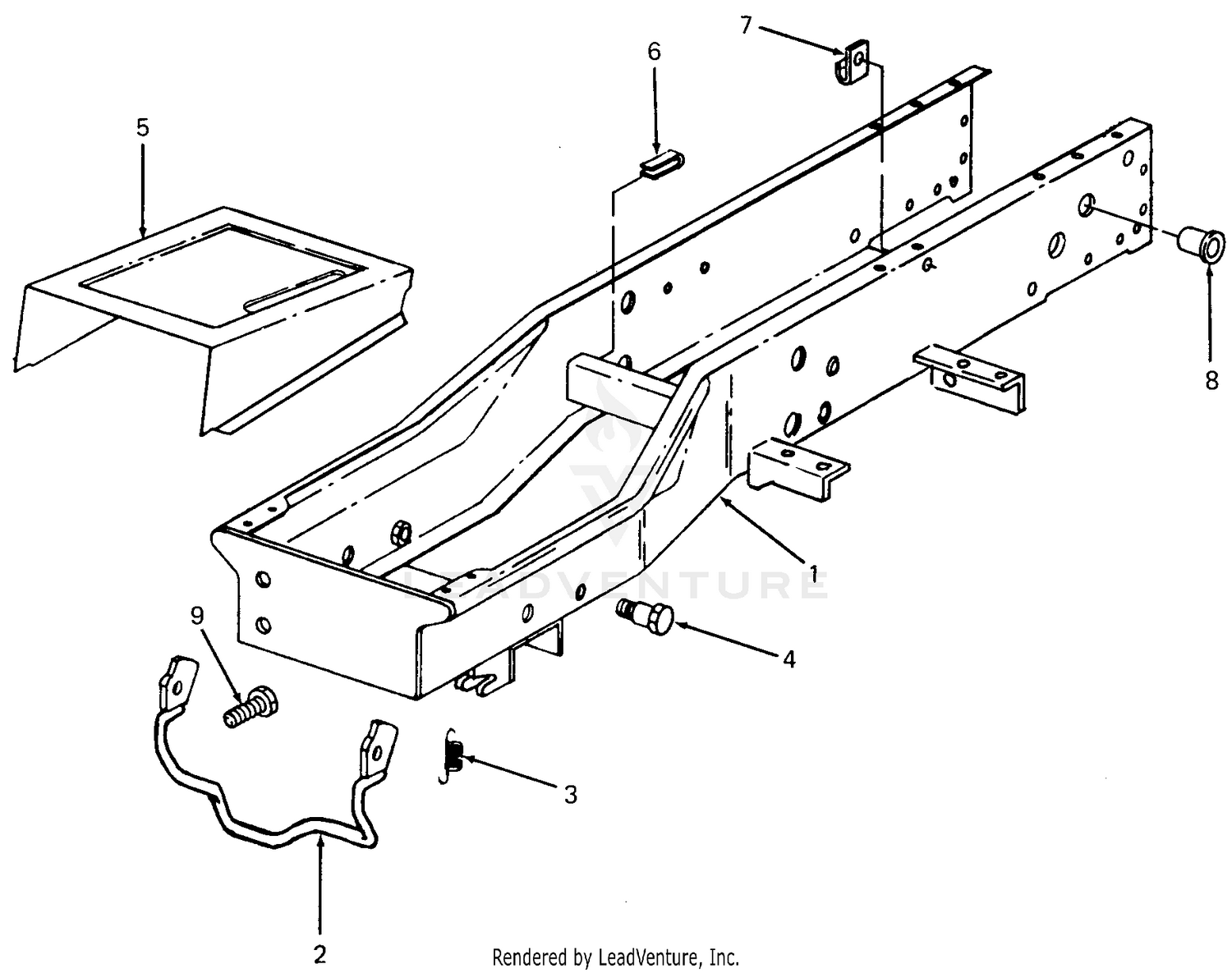

| Ref | Part Number | Description |
|---|
| 1 |
703-0234 |
FRAME ASSEMBLY Not Available Price: |
| 2 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 2 |
703-1726 |
LATCH ASSEMBLY Not Available Price: |
| 3 |
59-9740 |
FLEX DRAW LATCH ASM Price: $36.89 |
| 3 |
932-3002 |
Extension Spring, .51 x 2.12 This part replaces 732-3002. Price: $7.93 |
| 4 |
738-3001 |
BOLT-SHOUL Not Available Price: |
| 4 |
94-6764 |
Frame Price: Call Us |
| 5 |
759-3454 |
Cover, Frame w/Graphic Price: Call Us |
| 5 |
95-3417-03 |
DISCONTINUED This part replaces 95-3417. Price: Call Us |
| 6 |
726-3013 |
CABLE CLIP Not Available Price: |
| 6 |
95-6281-03 |
HINGE BRACKET ASM This part replaces 95-6281. Price: $48.40 |
| 7 |
726-3008 |
Clip, Cable Price: $4.26 |
| 7 |
95-3428 |
RIVET Price: $2.45 |
| 8 |
723-3042 |
SNAP BUSHING 7/8 Not Available Price: |
| 8 |
95-6304 |
DECAL - GM 1000L LOGO Price: Call Us |
| 9 |
710-3182 |
SCREW 1/2-20X1.0 GR5 Not Available Price: |
| 9 |
95-6330 |
Asm-Hood (Incl. Ref. #50) Price: $1,321.71 |
| 10 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 11 |
321-4 |
SCREW-HH Price: $0.99 |
| 12 |
76-4790 |
PAD-RUBBER Price: $17.89 |
| 13 |
93-7830 |
DECAL-TORQUE This part replaces 67-1720. Price: $23.91 |
| 14 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 15 |
63-7320 |
DISCONTINUED Price: Call Us |
| 16 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 17 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 18 |
27-7310 |
DECAL-REFUELING Price: $27.52 |
| 19 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 20 |
92-5548-01 |
SHIELD-STOP, PEDAL This part replaces 92-5548. Price: $31.35 |
| 21 |
32128-33 |
NUT-HF Price: $0.25 |
| 22 |
66-3050 |
DISCONTINUED Price: Call Us |
| 23 |
92-8798 |
DECAL - WARNING Price: $36.29 |
| 24 |
66-2830 |
DISCONTINUED Price: Call Us |
| 25 |
66-3040-03 |
COVER-BOX, TOOL This part replaces 66-3040. Price: $26.24 |
| 26 |
3290-359 |
SCREW-HWH Price: $6.23 |
| 27 |
63-7310 |
DISCONTINUED Price: Call Us |
| 28 |
106-8095 |
DECAL-TOWER This part replaces 66-2470. Price: $48.49 |
| 29 |
66-3200 |
TREAD-FOOTREST, LH Price: $7.38 |
| 30 |
66-3210 |
TREAD-FOOTREST, LH Price: $30.94 |
| 31 |
32148-7 |
NUT-CLINCH Price: $0.98 |
| 32 |
92-5772 |
DISCONTINUED Price: Call Us |
| 33 |
92-5540 |
TREAD-FOOTREST, RH Price: $23.53 |
| 34 |
63-7300 |
DISCONTINUED Price: Call Us |
| 35 |
32148-10 |
NUT-CLINCH Price: $1.29 |
| 36 |
32128-20 |
NUT-HF Price: $0.99 |
| 37 |
3290-271 |
RIVET-POP Price: $0.25 |
| 39 |
92-5545-01 |
COVER-TOWER, FRONT This part replaces 92-5545. Price: $78.48 |
| 40 |
53-4430 |
DECAL-OIL Price: $8.99 |
| 41 |
32148-9 |
NUT-CLINCH Price: $2.65 |
| 42 |
32148-11 |
NUT-CLINCH Price: $1.56 |
| 43 |
62-5550 |
DECAL Price: $9.32 |
| 44 |
63-8050 |
BOX-CONTROL Price: $106.29 |
| 45 |
66-8760 |
DISCONTINUED Price: Call Us |
| 48 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 49 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 50 |
32148-8 |
NUT-CLINCH Price: $2.31 |
| 51 |
322-6 |
SCREW-HH Price: $0.45 |
| 52 |
95-6320 |
DECAL - SERVICE Price: $31.78 |
| 503200002 |
503200710 |
SCREW M5 X 10 This part replaces 503200002. Price: $4.99 |
| 503200038 |
503200038 |
SCREW M6X30 Price: $1.60 |
| 503211410 |
503210525 |
SCREW This part replaces 503211410. Price: $4.99 |
