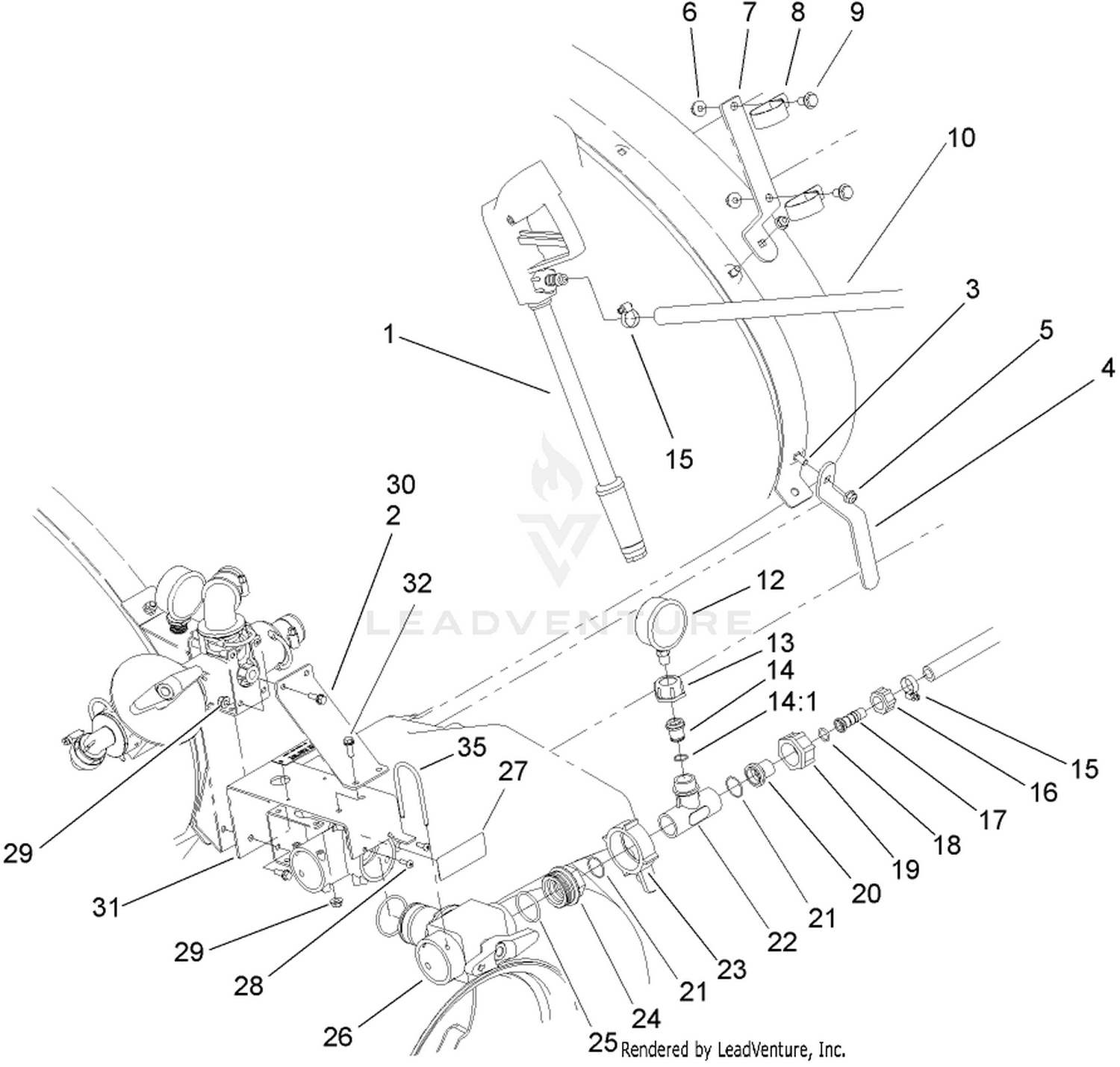

Spray Gun Kit Assembly
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 100-6733 | SPRAYER-HANDHELD Price: $257.98 |
| 2 | 106-1359-03 | BRACKET-SUPPORT Price: $30.83 |
| 3 | 3230-1 | BOLT-CARR Price: $1.49 |
| 4 | 40153-03 | HOOK-HOSE Price: $24.35 |
| 5 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 6 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 7 | 121-4986-03 | BRACKET-SPRAYGUN This part replaces 106-5092-03. Price: $33.29 |
| 8 | 2412-147 | CLAMP-R Price: $2.51 |
| 9 | 3234-1 | SCREW-HHF Price: $1.62 |
| 10 | 107-8751 | HOSE-SPRAY GUN Price: $105.53 |
| 12 | 120-8547 | GAUGE-PRESSURE This part replaces 100-8576. Price: $172.62 |
| 13 | 99-0850 | NUT Price: $10.38 |
| 14 | 106-5072 | REDUCER ASM Price: $9.76 |
| 15 | 2412-36 | CLAMP-HOSE Price: $1.28 |
| 16 | 99-0766 | NUT Price: $5.16 |
| 17 | 104-8797 | HOSEBARB Price: $28.24 |
| 18 | 100-6653 | O-RING Price: $3.11 |
| 19 | 99-0769 | NUT Price: $13.25 |
| 20 | 99-0770 | NIPPLE-REDUCING Price: $17.47 |
| 21 | 100-6655 | GASKET Price: $10.22 |
| 22 | 100-8699 | TEE Price: $94.17 |
| 23 | 100-8669 | NUT Price: $17.03 |
| 24 | 104-9067 | ADAPTER-VALVE Price: $56.66 |
| 25 | 100-8671 | O-RING Price: $3.81 |
| 27 | 106-5081 | DECAL-CONTROL, SPRAY Price: $13.06 |
| 28 | 32144-32 | SCREW Price: $2.29 |
| 29 | 32128-33 | NUT-HF Price: $0.25 |
| 30 | 104-8728-03 | BRACKET-SUPPORT Price: $38.62 |
| 31 | 104-8727-03 | BRACKET-VALVE Price: $43.67 |
| 32 | 3234-4 | SCREW-HHF Price: $0.50 |
