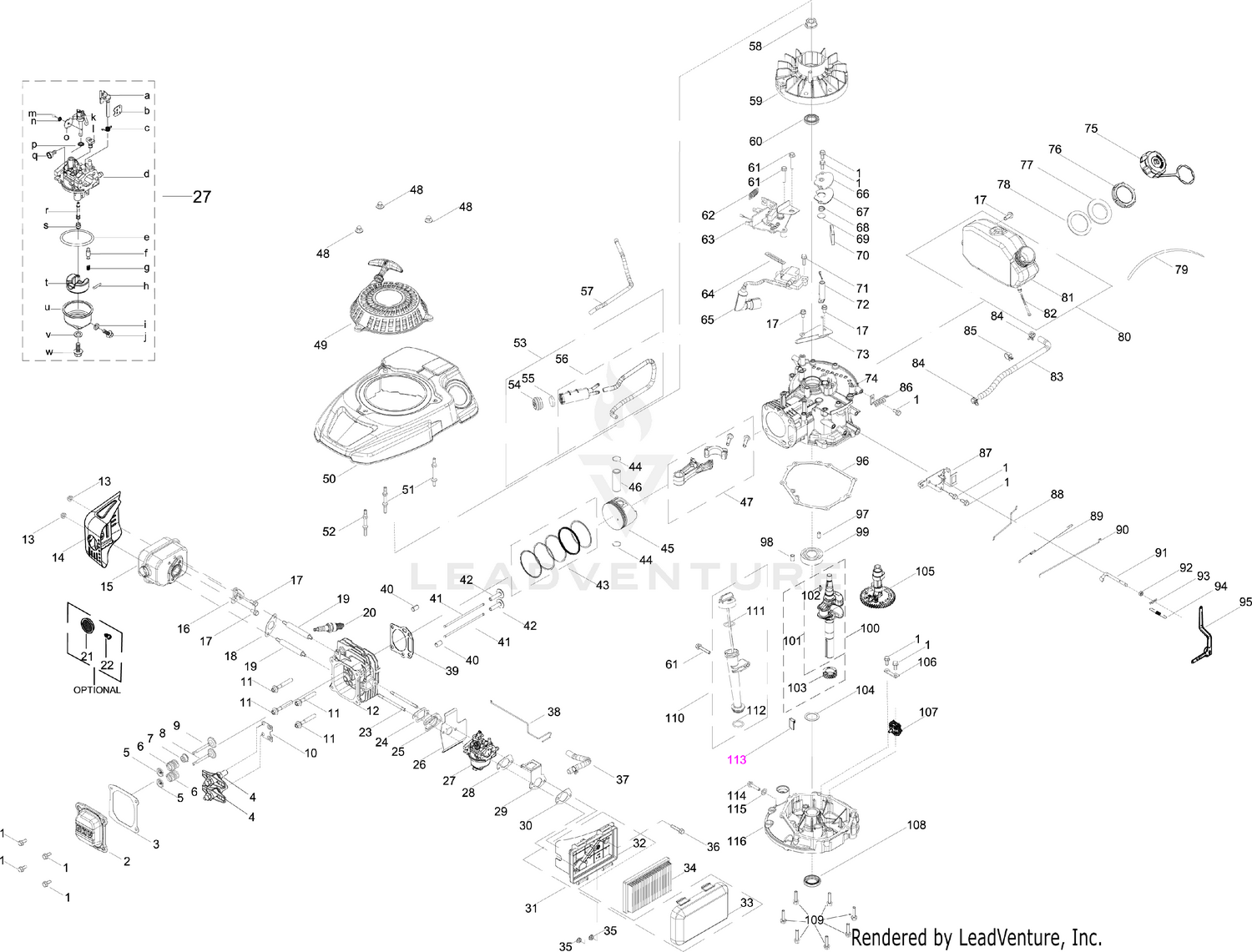

5X65VUC General Assembly
Parts (136)
| Ref | Part Number | Description |
|---|---|---|
| a | 711P06281A | CHOKE SHAFT Price: $2.45 |
| b | None | Choke Plate |
| c | 732P05200A | CHOKE RETURN SPRING Price: $2.45 |
| d | None | Carburetor Body |
| e | 721-04710A | FLOAT BOWL O-RING Price: $2.15 |
| f | 751P14049A | NEEDLE VALVE Price: $3.06 |
| g | 732P05025A | NEEDLE VALVE SPRING Price: $2.63 |
| h | 711P06053A | FLOAT PIN Price: $2.45 |
| i | 721P04711A | FUEL DRAIN PLUG GASKET Price: $1.48 |
| j | 710-06227A | Fuel Drain Plug Price: Call Us |
| k | None | Throttle Shaft |
| l | None | Idle Jet Assembly |
| m | None | Screw M3×6 Throttle Plate |
| n | 736P05209A | LOCK WASHER 3MM Price: $2.45 |
| o | 708P05096A | THROTTLE PLATE Price: $2.45 |
| p | 721P04714A | CARB SHAFT GASKET Price: $1.22 |
| q | 710P06038A | SPEED IDLE SCREW Price: $2.45 |
| r | None | Emulsion Tube |
| s | None | Main Jet |
| t | 731P09155A | FLOAT Price: $2.39 |
| u | None | Fuel Bowl |
| v | 721-04709A | FLOAT BOWL GASKET Price: $2.15 |
| w | 710-06226 | FUEL BOWL BOLT Price: $2.98 |
| 1 | 710-04916 | BOLT M6-1 x 14 GR8.8 Price: $3.86 |
| 2 | 951-14609A | VALVE COVER Price: $14.42 |
| 3 | 751P18586A | VALVE COVER GASKET Price: $3.94 |
| 4 | 951-11606A | ROCKER ARM Price: $29.12 |
| 5 | 908-04094A | VALVE RETURN SPRING Price: $3.20 |
| 6 | 751P12004A | VALVE SPRING Price: $1.74 |
| 7 | 921-04237A | INTAKE VALVE SEAL Price: $7.20 |
| 8 | 951-14641A | EXHAUST VALVE Price: $8.71 |
| 9 | 951-14640A | INTAKE VALVE Price: $8.71 |
| 10 | 951-11687A | PUSH ROD GUIDE This part replaces 951-11687. Price: $6.12 |
| 11 | 910-06185 | BOLT-M8 x 54 Price: $5.88 |
| 12 | 951-14639 | CYLINDER HEAD Price: $108.54 |
| 13 | 712-05015 | HEX NUT Price: $5.78 |
| 14 | 951-15072 | MUFFLER SHIELD Price: $22.38 |
| 15 | 951-14429A | MUFFLER ASSEMBLY This part replaces 951-14429. Price: $55.88 |
| 16 | 951-14428A | CHOKE TEMP CONTROL THERMOSTAT This part replaces 951-14428. Price: $36.29 |
| 17 | 710-04915 | BOLT M6-1 x 12 GR8.8 Price: $3.82 |
| 18 | 951-14427A | MUFFLER GASKET Price: $6.38 |
| 19 | 710-05094 | STUD M6-1 x 95 Price: $3.78 |
| 20 | 951-14437A | SPARK PLUG (F5RTC/RN11YC4/BPR5ES) Price: $6.35 |
| 21 | 951-10351A | SPARK ARRESTOR Price: $48.91 |
| 22 | 710-04983 | SCREW M3.5 x 9.5 Price: $3.65 |
| 23 | 951-14425 | CARBURETOR STUD-M6 x 87 Price: $6.18 |
| 24 | 751P18606A | CARBURETOR INSULATOR GASKET This part replaces 751P18606. Price: $4.14 |
| 25 | 951-11738A | CARBURETOR INSULATOR This part replaces 951-11738. Price: $4.60 |
| 26 | 951-14424 | CARBURETOR GASKET Price: $9.35 |
| 27 | 651P08640 | CARBURETOR This part replaces 651-08640. Price: $29.38 |
| 28 | 721P05942A | AIR FILTER BRACKET GASKET Price: $5.20 |
| 29 | 951-14420A | CHOKE TEMP CONTROL BRACKET Price: $8.96 |
| 30 | 951-14419A | AIR FILTER BASE GASKET Price: $7.08 |
| 31 | 951-14631 | AIR FILTER HOUSING ASSEMBLY Price: $16.11 |
| 33 | 931-10202 | AIR FILTER COVER Price: $8.96 |
| 34 | 951-14632A | AIR FILTER Price: $14.83 |
| 35 | 712-05015 | HEX NUT Price: $5.78 |
| 36 | 710-04969 | BOLT-M6-1 x 30 GR8.8 Price: $3.66 |
| 37 | 951-11520 | BREATHER HOSE Price: $5.48 |
| 38 | 951-14421A | CHOKE TEMP CONTROL LINKAGE This part replaces 951-14421. Price: $7.10 |
| 39 | 751P18607A | HEAD GASKET This part replaces 751P18607. Price: $4.14 |
| 40 | 715P04090A | PIN (10MMx16MM) Price: $2.95 |
| 41 | 747P04862A | PUSH ROD This part replaces 747-04862. Price: $5.10 |
| 42 | 951-14432A | TAPPET Price: $7.49 |
| 43 | 951-14433A | PISTON RING SET Price: $34.45 |
| 44 | 951-11603A | WRIST PIN CLIP Price: $2.90 |
| 45 | 951-14434A | PISTION Price: $56.68 |
| 46 | 951-14435A | PISTON PIN Price: $9.22 |
| 47 | 951-14436A | CONNECTING ROD This part replaces 951-14436. Price: $61.10 |
| 48 | 712-04276A | ACORN NUT M6-1 Price: $5.38 |
| 49 | 951-05360A | RECOIL STARTER ASSEMBLY Price: $50.15 |
| 50 | 631P05655 | BLOWER HOUSING Price: $14.84 |
| 51 | 951-14397 | STARTER/SHROUD REAR STUD Price: $8.66 |
| 52 | 951-14398 | STARTER/SHROUD FRONT STUD Price: $8.66 |
| 54 | 951-14127 | CARBON CANISTER FILTER CAP Price: $6.30 |
| 55 | 951-14400 | CARBON CANISTER FILTER Price: $11.71 |
| 56 | 951-14629 | CARBON CANISTER Price: $25.97 |
| 57 | 935-05046 | CARBON CANISTER PURGE HOSE Price: $6.24 |
| 58 | 712-04287A | FLYWHEEL NUT M14-1.5 Price: $5.33 |
| 59 | 951-14401A | FLYWHEEL Price: $103.19 |
| 60 | 951-11596A | UPPER CRANKSHAFT SEAL Price: $5.44 |
| 61 | 710-04980 | BOLT M6-1 x 35 GR8.8 Price: $3.42 |
| 62 | 932-04546 | ENGINE BRAKE SPRING Price: $5.15 |
| 63 | 951-15543 | ENGINE BRAKE ASSEMBLY Price: $34.47 |
| 64 | 951-11622A | FLEXIBLE CLAMP Price: $3.42 |
| 65 | 925-07281 | IGNITION COIL Price: $43.06 |
| 66 | 951-14404 | BREATHER COVER PLATE Price: $12.64 |
| 67 | 951-14405A | BREATHER GASKET Price: $7.39 |
| 68 | 732-04718A | BREATHER VALVE SPRING Price: $3.30 |
| 69 | 951-11614A | BREATHER VALVE Price: $3.13 |
| 70 | 951-11730A | BREATHER SCREEN Price: $3.84 |
| 71 | 710-04918 | BOLT M6-1 x 20 GR8.8 Price: $3.56 |
| 72 | 951-11529A | AIR VANE Price: $6.25 |
| 73 | 951-14719 | AIR VANE BRACKET Price: $7.35 |
| 74 | 751P18989 | CRANKCASE Price: $65.57 |
| 75 | 951-14407 | FUEL CAP ASSEMBLY Price: $12.62 |
| 76 | 731-08104 | FUEL TANK NUT Price: $6.38 |
| 77 | 951-14406A | FUEL TANK GROMMET Price: $9.68 |
| 78 | 731-08133 | FUEL TANK LOWER GROMMET Price: $7.21 |
| 79 | 725-06031A | CABLE TIE 3x150 Price: $2.04 |
| 81 | 931-04629 | FUEL TANK Price: $61.16 |
| 82 | 951-12296A | FUEL FILTER Price: $8.68 |
| 83 | 935-05047 | FUEL HOSE Price: $13.42 |
| 84 | 951-11700A | CARBURETOR HOSE CLAMP Price: $3.60 |
| 85 | 723-04071A | FUEL LINE SUPPORT CLAMP Price: $2.77 |
| 86 | 951-11680 | FLEXIBLE CLAMP Price: $3.61 |
| 87 | 951-15800 | COMPONENT BRACKET Price: $5.15 |
| 88 | 951-14408 | CHOKE LINKAGE Price: $5.68 |
| 89 | 951-14409 | THROTTLE LINKAGE SPRING Price: $7.61 |
| 90 | 951-14410 | THROTTLE LINKAGE Price: $7.21 |
| 91 | 951-11621 | GOVERNOR ARM SHAFT Price: $8.68 |
| 92 | 951-11902A | OIL SEAL Price: $3.36 |
| 93 | 714-04078A | COTTER PIN Price: $3.19 |
| 94 | 951-14411 | GOVERNOR SPRING Price: $8.34 |
| 95 | 951-05485 | GOVERNOR ARM ASSEMBLY Price: $6.88 |
| 96 | 751P18609A | CRANKCASE COVER GASKET This part replaces 751P18609. Price: $5.02 |
| 97 | 715-04092A | DOWEL PIN 7 X 14 Price: $2.97 |
| 98 | 715-04096A | DOWEL PIN 9 X 14 Price: $3.66 |
| 99 | 751P11369A | BEARING Price: $5.19 |
| 100 | None | CRANKSHAFT ASSEMBLY |
| 101 | 751P19128 | CRANKSHAFT Price: $75.00 |
| 102 | 751P10307A | WOODRUFF KEY Price: $2.01 |
| 103 | 931-10288A | GEAR Price: $8.18 |
| 104 | 736-04491A | THRUST WASHER Price: $3.30 |
| 105 | 751P18628A | CAMSHAFT This part replaces 751P18628. Price: $17.80 |
| 106 | 951-11609A | GOVERNOR GEAR MOUNTING PLATE Price: $3.94 |
| 107 | 951-11549 | GOVERNOR GEAR/SHAFT ASSEMBLY Price: $10.58 |
| 108 | 951-11545A | LOWER CRANKSHAFT SEAL This part replaces 951-11545. Price: $9.07 |
| 109 | 710-04943 | BOLT-M6-1 x 28 GR8.8 Price: $3.76 |
| 110 | 951-05438 | OIL DIPSTICK ASSEMBLY Price: $12.27 |
| 111 | 921-04795A | O-RING Price: $3.38 |
| 112 | 921-04697A | O-RING Price: $2.45 |
| 113 | 951-11733 | OIL RETURN SEAL Price: $4.28 |
| 114 | 710-04906 | OIL DRAIN PLUG Price: $5.86 |
| 115 | 736-04440A | FLAT WASHER Price: $6.01 |
| 116 | 951-14418A | CRANKCASE COVER This part replaces 951-14418. Price: $83.09 |
