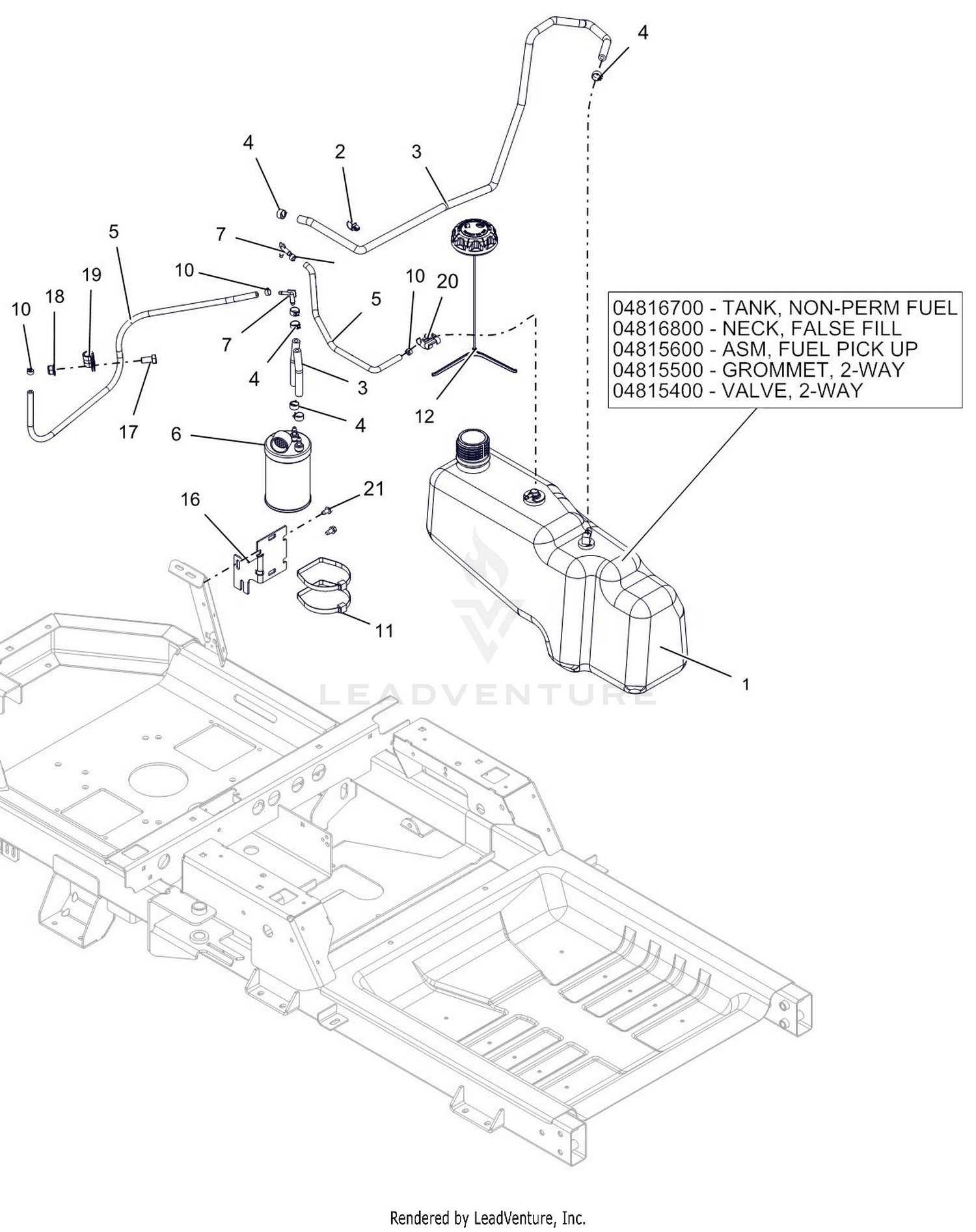

| Ref | Part Number | Description |
|---|
| 1 |
05244600 |
ASM, FUEL TANK - ZTX This part replaces 04751200. Price: $142.95 |
| 2 |
00367900 |
ROUTING CLIP (1/2" ID) Price: $1.45 |
| 4 |
03278800 |
CLAMP, FUEL LINE Price: $0.95 |
| 5 |
03375900 |
HOSE, .188 LOW-PERM BULK GAS Price: $0.95 |
| 6 |
04082500 |
CARBON CANISTER, 300CC Price: $56.95 |
| 7 |
04097000 |
FITTING-3/16X1/4 90DEGREE VAC Price: $13.45 |
| 10 |
04097700 |
CLAMP-HOSE- SPRING .188 Price: $1.45 |
| 11 |
04102900 |
P-PLASTIC TIE STRAP LARGE Price: Call Us |
| 12 |
09190200 |
CAP-FUEL- 2.25 RATCHET INLET V This part replaces 04589200. Price: $18.45 |
| 16 |
04834651 |
BRKT, CARB CANISTER MOUNT Price: $14.45 |
| 17 |
05901702 |
BLT,HEX .38-16X.75 G5 ZCC This part replaces 05959400. Price: $1.45 |
| 18 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 19 |
06908200 |
CLAMP, CUSHIONED STEEL Price: $5.45 |
| 20 |
07001712 |
CLIP, T, .38-.50 Price: $3.45 |
