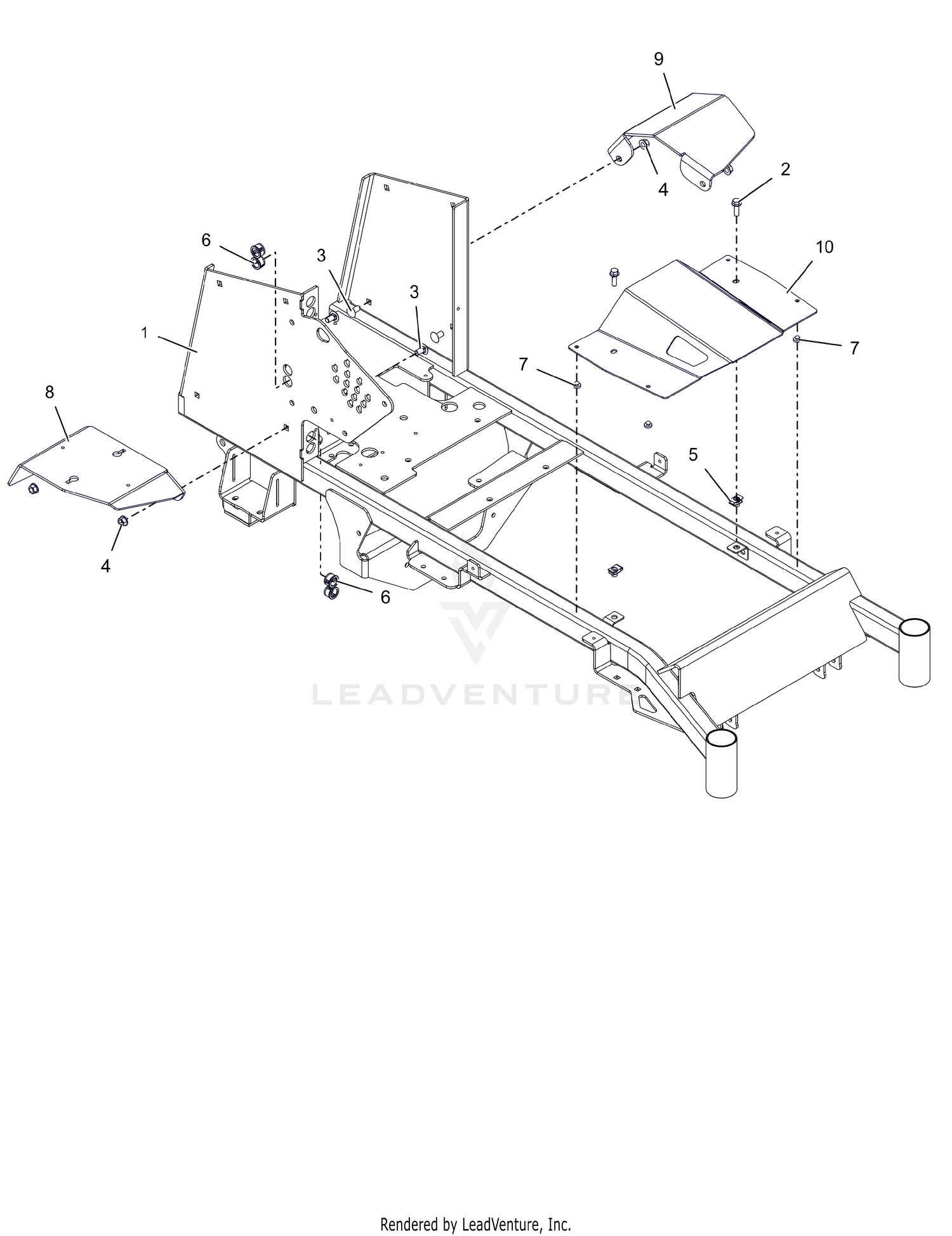

Frame - 32"
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 30279100 | WLDMT, RIDGELINE 32 FRAME (ORANGE) Price: Call Us |
| 2 | 05902228 | BLT- HEX-FLG .31-18X1.00 ZB500 Price: $1.45 |
| 3 | 06200336 | BLT, RHSSN .38-16X.75 G5 ZCC Price: $2.45 |
| 4 | 06500901 | NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95 |
| 5 | 07000829 | NUT-CLIP RETAINER 5/16-18X.56 Price: $2.45 |
| 6 | 07500126 | BUSH, PANEL SNAP .687X.875X.56 Price: $3.45 |
| 7 | 07503100 | BUMPER GROMMET Price: $3.45 |
| 8 | 30286159 | FENDER- RH Price: $30.95 |
| 9 | 30286259 | FENDER- LH Price: $30.95 |
