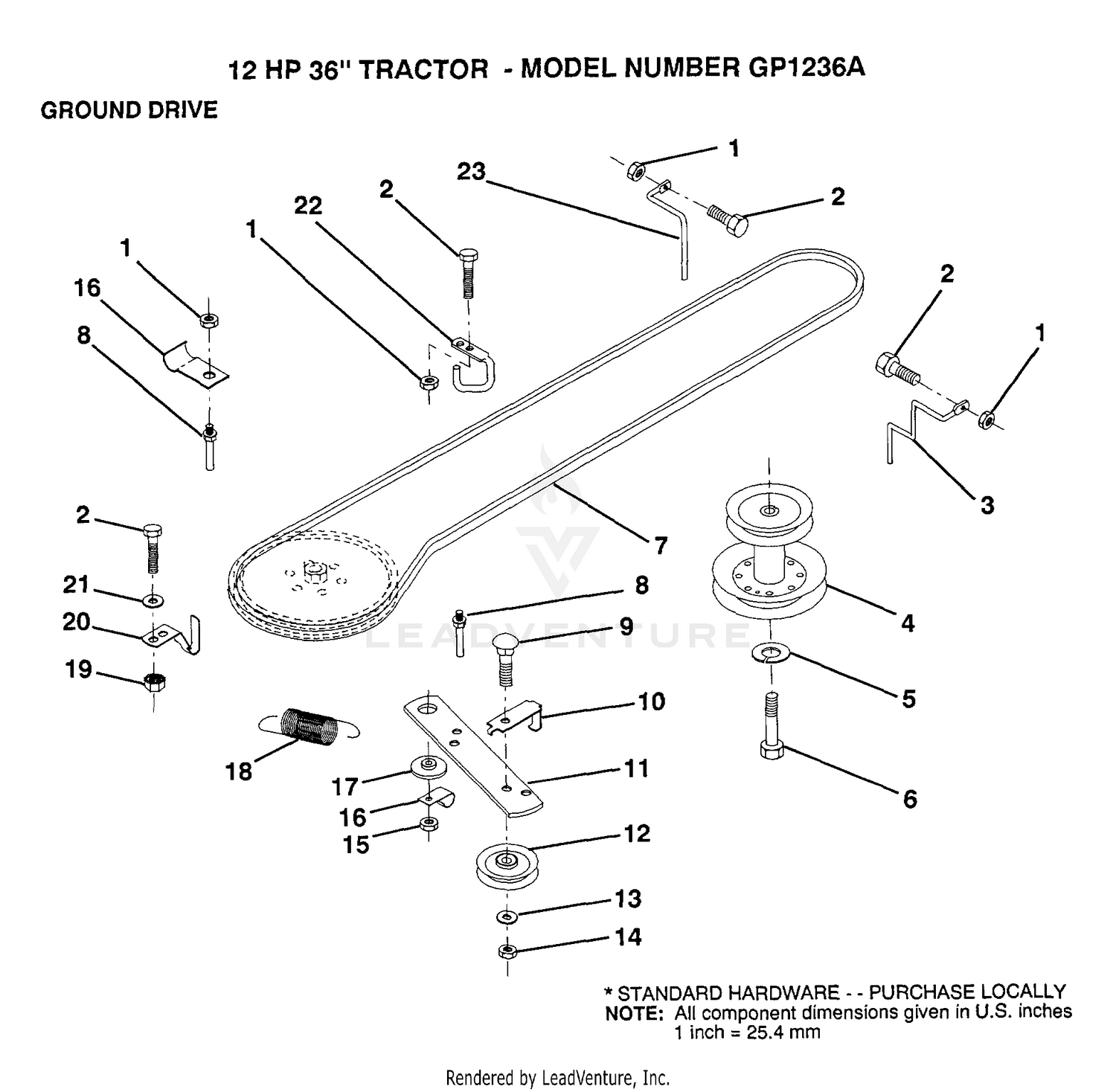

GROUND DRIVE
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3272-11 | PIN-COTTER Price: $0.99 |
| 1 | 73680500 | SUB= 73690500 Price: Call Us |
| 2 | 74760512 | BOLT Price: Call Us |
| 2 | 93-5366 | SHAFT-LATCH Price: $34.55 |
| 3 | 131205 | SUB= 532131205 Price: Call Us |
| 3 | 93-5367 | SPRING-TORSION Price: $30.35 |
| 4 | 134828 | SUB= 138029 Price: Call Us |
| 4 | 93-5363 | LATCH ASM Price: $171.01 |
| 5 | 10040700 | LOCKWASHER Price: Call Us |
| 5 | 93-3094 | PLUG-CAP Price: $1.91 |
| 6 | 33115-060 | SCREW-HH Price: $2.29 |
| 6 | 71170744 | HEX BOLT Price: Call Us |
| 7 | 124525X | BELT Price: Call Us |
| 7 | 93-5308 | WASHER-ISO MOUNT Price: $1.07 |
| 8 | 104-0136 | MOUNT-ISO Price: $17.42 |
| 9 | 33025-00 | NUT-LOCK, NI Price: $0.54 |
| 9 | 72140612 | BOLT Price: Call Us |
| 10 | 3272-5 | PIN-COTTER Price: $1.39 |
| 11 | 123395X | SUB= 140911 Price: Call Us |
| 11 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 12 | 4859J | SUB= 123674X Price: Call Us |
| 12 | 93-5348 | ABRASIVE-FLOOR Price: $34.12 |
| 13 | 19131316 | WASHER Price: Call Us |
| 13 | 33103-016 | SCREW-HHF Price: $5.18 |
| 14 | 73930600 | LOCKNUT Price: Call Us |
| 14 | 93-5507 | ABRASIVE-PLATFORM Price: $22.40 |
| 15 | 73680600 | SUB= 73690600 Price: Call Us |
| 15 | 93-5349 | ABRASIVE-FLOOR Price: $19.34 |
| 16 | 93-5447 | NUT-CLINCH Price: $0.95 |
| 17 | 122052X | SPACER RETAINER Price: Call Us |
| 17 | 93-5232-01 | Platform Price: Call Us |
| 18 | 131459 | SUB= 532131459 Price: Call Us |
| 18 | 93-5310-01 | COVER-TUBES Price: $85.03 |
| 19 | 73510500 | NUT Price: Call Us |
| 19 | 93-5335 | STRIP-FOAM, SEAT Price: $3.33 |
| 20 | 93-5334 | STRIP-FOAM, SEAT Price: $3.78 |
| 21 | 19111016 | WASHER Price: Call Us |
| 21 | 3290-355 | PIN-HAIR Price: $2.09 |
| 22 | 283-83 | PIN-CLEVIS Price: $9.52 |
| 23 | 98-2395-03 | SEAT-BASE ASM Price: $229.69 |
| 24 | 93-5338 | ROD-PROP Price: $124.99 |
| 25 | 240-5 | GROMMET Price: $13.66 |
| 26 | 93-7834 | DECAL-FOOTREST, RH Price: $36.92 |
| 27 | 93-5449 | NUT-CLINCH Price: $4.12 |
| 30 | 93-5255 | STRIP-FOAM, PLAT Price: $28.80 |
| 31 | 95-3033 | ROD Price: $69.93 |
| 32 | 32121-79 | PIN-ROLL Price: $10.59 |
| 33 | 28-0570 | SPRING-COMPRESSION Price: $33.04 |
| 34 | 3256-69 | WASHER-FLAT Price: $0.62 |
| 35 | 33114-020 | SCREW-HH Price: $0.28 |
| 36 | 33024-00 | NUT-LOCK, NI Price: $0.75 |
| 37 | 74-0720 | TUBE-MANUAL Price: $22.99 |
| 38 | 2412-133 | CLAMP-R Price: $3.19 |
| 39 | 33114-016 | SCREW-HH Price: $0.27 |
| 40 | 99-5789 | STRIP-FOAM Price: $4.11 |
