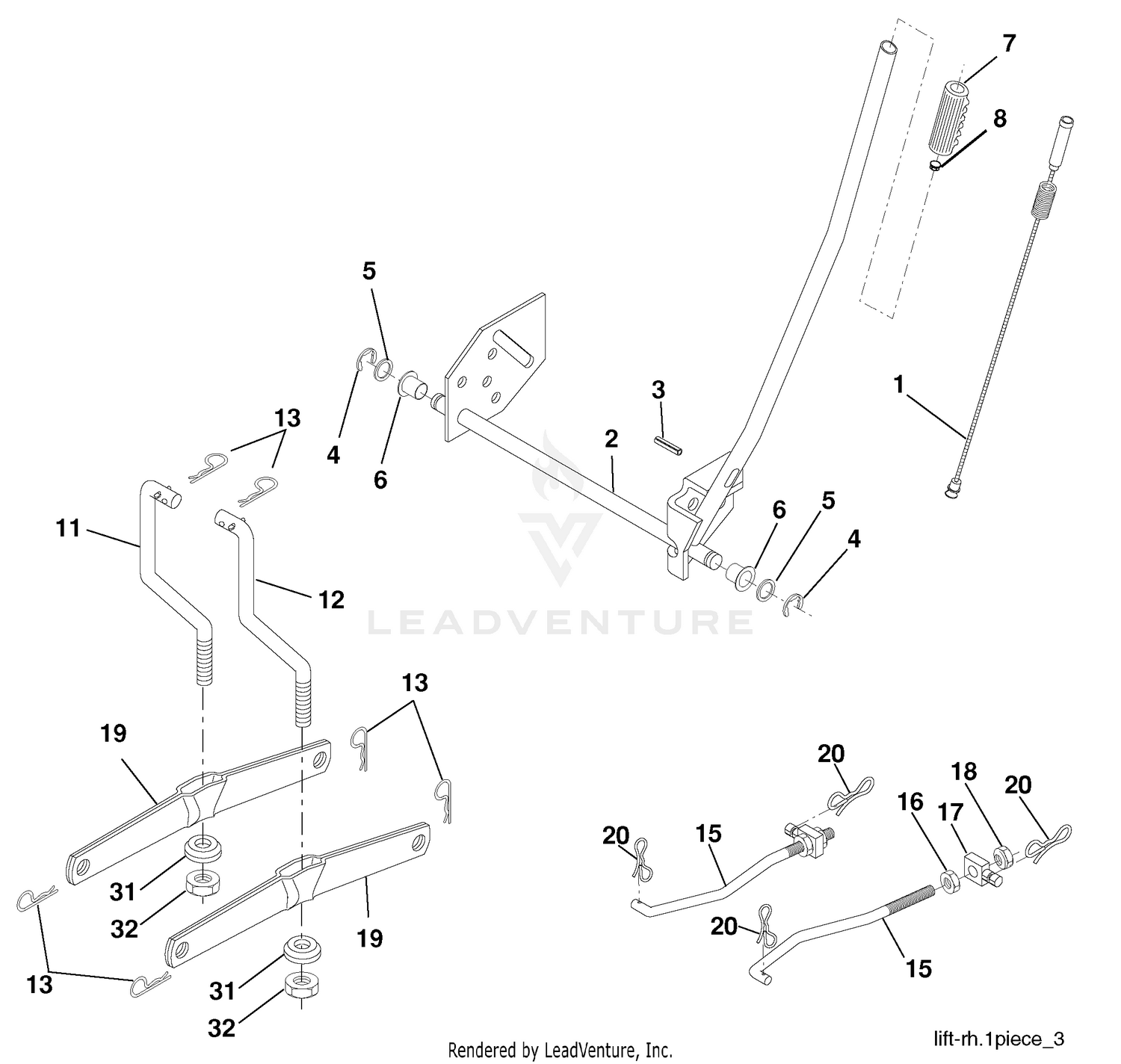

Mower Lift

Mower Lift

Parts (29)

RefPart NumberDescription
1 198417 Wire Asm Inner/Sprg w/Plunger Price: Call Us
2 198070 Shaft Asm Lift Price: Call Us
3 188822 Pin Groove Price: Call Us
4 12000002 E Ring #5133-62 Price: Call Us
5 19211621 Washer 21/32 x 1 x 21 Ga. Price: Call Us
6 120183X Bearing Nylon Price: Call Us
7 109413X Grip Handle Price: Call Us
8 124526X Button Plunger Price: Call Us
10 108-4415 TUBE-BREATHER Price: $22.62
11 139865 Link Lift Lh Price: Call Us
12 139866 Link Lift Rh Price: Call Us
13 4939M Retainer Spring Price: Call Us
15 173288 Link Front Price: Call Us
16 73350800 Nut Jam Hex 1/2-13 unc Price: Call Us
17 175689 Trunnion Blk Zinc Price: Call Us
18 73800800 Nut Lock w/Wsh 1/2-13 unc Price: Call Us
19 139868 Arm Suspension Rear Price: Call Us
20 105-2879 CLAMP-HOSE Price: $2.19
20 194209 Pin Cotter 7/16 Bow Tie Lock Price: Call Us
31 169865 Bearing Pvt Lift Price: Call Us
40 108-4416 CYLINDER HEAD COVER ASM Price: $114.62
50 108-7059 SHIELD-BREATHER Price: $6.73
60 98-7766 PIPE-RETURN, WATER Price: $9.95
70 110-3714 COVER-BREATHER This part replaces 108-2862. Price: $22.08
80 110-3715 VALVE-BREATHER This part replaces 108-2861. Price: $173.99
90 98-9364 SCREW (WITH WASHER) Price: $0.32
100 108-7062 GASKET-COVER, HEAD Price: $48.79
110 108-7063 BOLT Price: $4.73
120 107-9075 PLUG-FILLER, OIL This part replaces 98-7429. Price: $7.25
