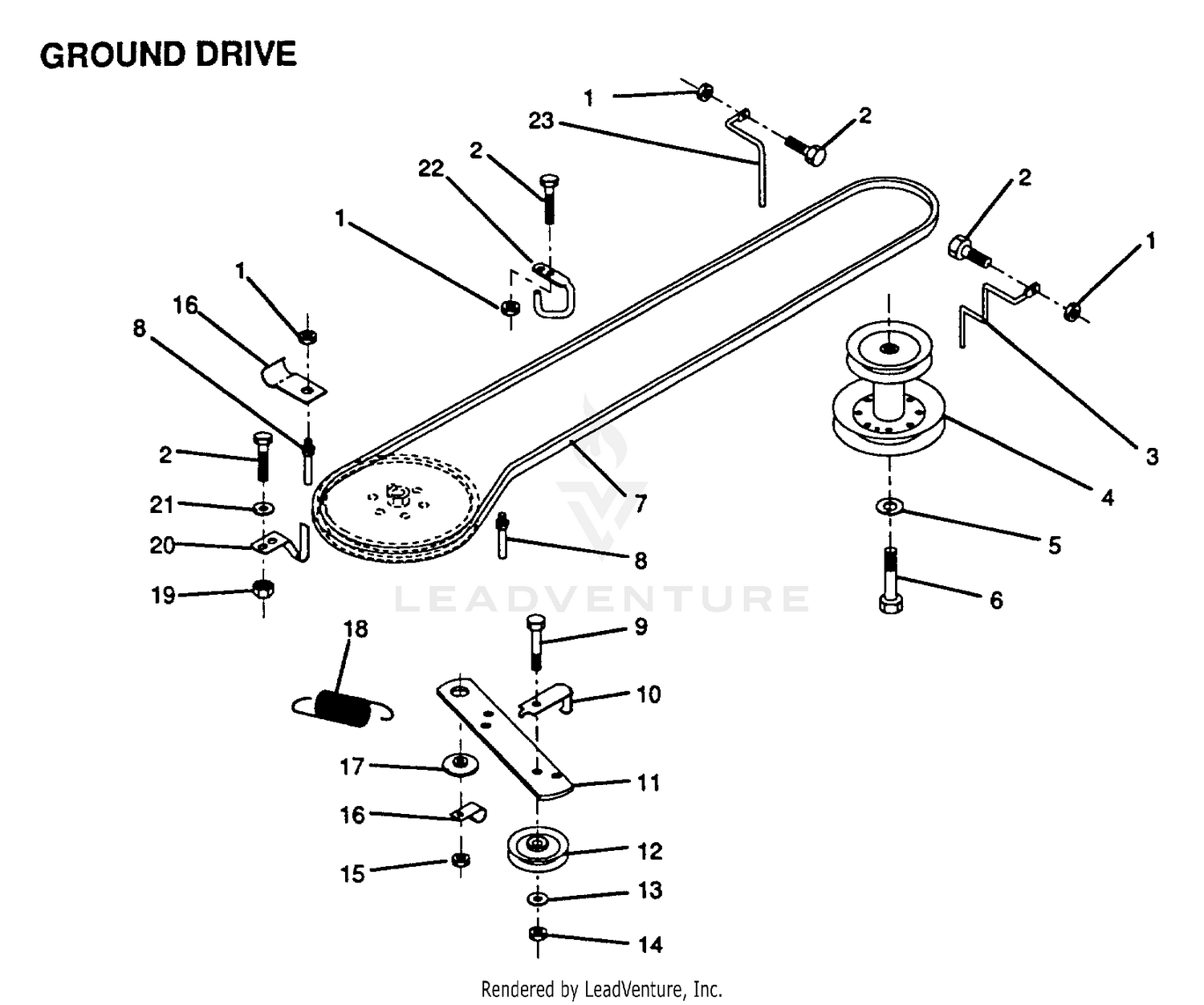

| Ref | Part Number | Description |
|---|
| 1 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 1 |
73680500 |
SUB= 73690500 Price: Call Us |
| 2 |
104-7704 |
SPRING-LATCH, BRAKE Price: $12.68 |
| 2 |
74760512 |
BOLT Price: Call Us |
| 3 |
123448X |
KEEPER ENG BEL LH Price: Call Us |
| 3 |
3220-2 |
NUT-JAM Price: $0.50 |
| 4 |
123400X |
SUB= 135893 Price: Call Us |
| 4 |
93-2010-01 |
FRAME ASM Price: $3,690.13 |
| 5 |
10040700 |
LOCKWASHER Price: Call Us |
| 5 |
93-8062 |
DECAL-BRAKE, PARKING Price: $4.95 |
| 6 |
33123-016 |
SCREW-CARR Price: $1.21 |
| 6 |
74770720 |
SUB= 71130720 Price: Call Us |
| 7 |
124525X |
BELT Price: Call Us |
| 7 |
33123-016 |
SCREW-CARR Price: $1.21 |
| 8 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 9 |
33023-00 |
NUT-LOCK This part replaces 49-7810. Price: $0.25 |
| 9 |
74760624 |
SUB= 74930624 Price: Call Us |
| 10 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 11 |
104-2096 |
BRACKET-SWITCH Price: $35.42 |
| 11 |
123395X |
SUB= 140911 Price: Call Us |
| 12 |
104-7703 |
HINGE-LOWER Price: $22.15 |
| 12 |
4859J |
SUB= 123674X Price: Call Us |
| 13 |
104-2094 |
BRAKE-LATCH Price: $150.10 |
| 13 |
19131316 |
WASHER Price: Call Us |
| 14 |
104-7702 |
PLATE-SWITCH Price: $16.15 |
| 14 |
73930600 |
LOCKNUT Price: Call Us |
| 15 |
73680600 |
SUB= 73690600 Price: Call Us |
| 15 |
83-1700 |
BUSHING-FLANGE Price: $7.80 |
| 16 |
2751R |
CLIP T Price: Call Us |
| 16 |
93-2073-01 |
SHIELD-WHEEL, LH Price: $104.03 |
| 17 |
122052X |
SPACER RETAINER Price: Call Us |
| 17 |
93-2072-01 |
SHIELD-WHEEL, RH Price: $92.07 |
| 18 |
123397X |
SUB= 131461 Price: Call Us |
| 18 |
283-61 |
PIN-YOKE Price: $1.56 |
| 19 |
282-2 |
YOKE Price: $30.04 |
| 19 |
73510500 |
NUT Price: Call Us |
| 20 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 21 |
19111016 |
WASHER Price: Call Us |
| 21 |
93-2075-01 |
BRAKE PEDAL ASM Price: $188.33 |
| 22 |
93-7629 |
PAD-FOOT, BRAKE Price: $25.13 |
| 23 |
283-87 |
PIN-CLEVIS Price: $8.89 |
| 24 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 25 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 26 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 27 |
33114-020 |
SCREW-HH Price: $0.28 |
| 28 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 29 |
104-2057 |
SENSOR Price: $136.35 |
