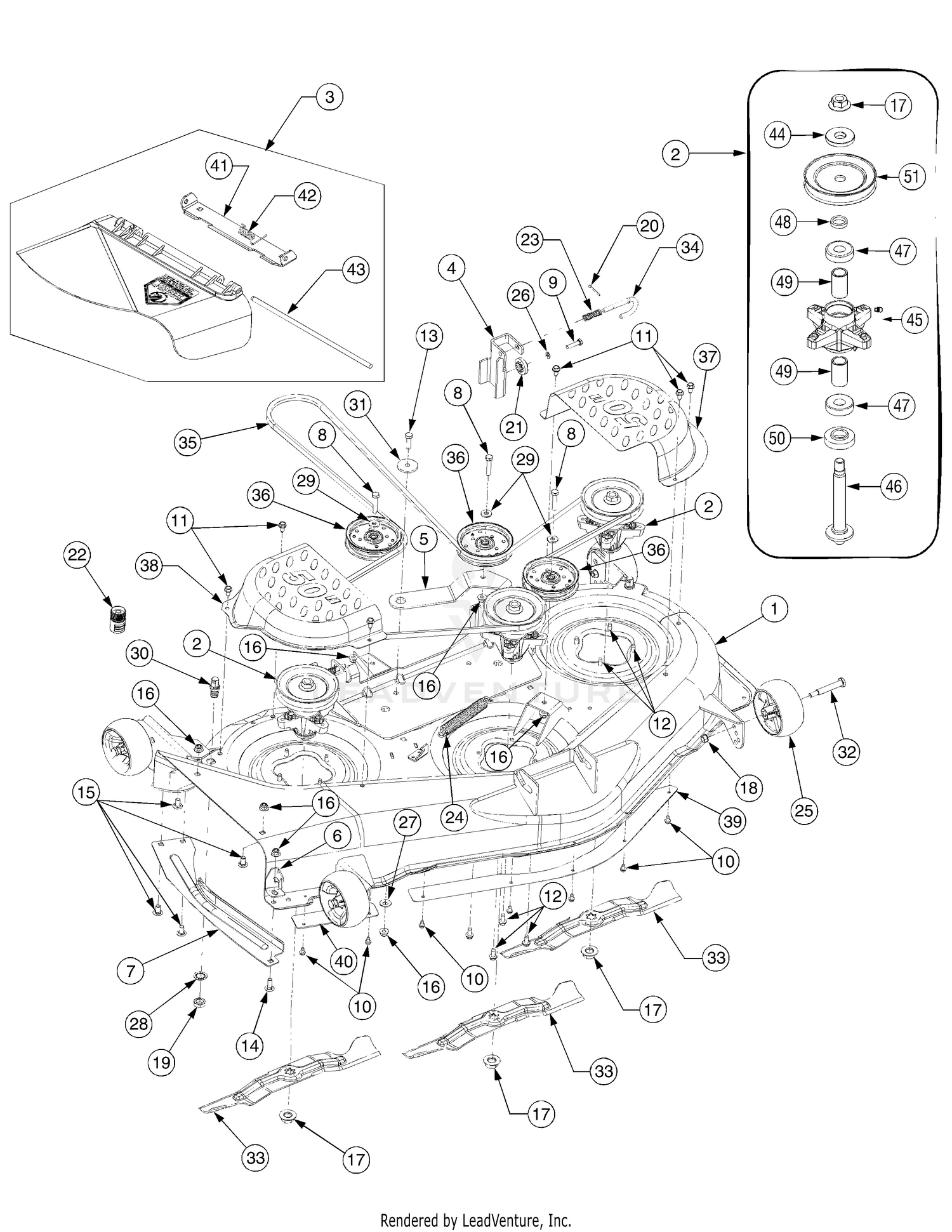

| Ref | Part Number | Description |
|---|
| 1 |
777D10896 |
LABEL-50" CUT TROY-BILT RZT Not Available Price: |
| 1 |
777S30503 |
Graphic, Danger Price: $10.32 |
| 1 |
777S32598 |
Graphic, Danger Not Available Price: |
| 1 |
977I22282 |
LABEL-BELT ROUTE This part replaces 777I22282. Price: $17.77 |
| 2 |
918-04125C |
PULLEY & SPINDLE ASSEMBLY 5.39" W/O FTG This part replaces 618-04126A. Price: $123.95 |
| 3 |
631-04070C |
Discharge Chute This part replaces 631-04070A. Price: $107.73 |
| 3 |
977S30145 |
Danger Label This part replaces 777S30284. Price: $8.93 |
| 4 |
683-0254B |
Bracket Assembly, Deck, Hanger LH Not Available This part replaces 683-0254. Price: |
| 5 |
703-05825A |
Arm, Idler Price: $36.34 |
| 6 |
703-3279 |
Bracket, Stop Price: $35.25 |
| 7 |
703-3511B-0637 |
Finger Guard This part replaces 703-3511A. Price: $61.47 |
| 8 |
710-0347 |
Screw, Hex Cap, 3/8-16 x 1.75 GR5 Price: $4.39 |
| 9 |
710-0528 |
Screw, Hex Cap, 5/16-18 x 1.25 GR5 Price: $3.90 |
| 10 |
710-0599 |
Screw, Hex Wash. Hd. Tapp,1/4-20 x .5 Price: $3.86 |
| 11 |
710-0726 |
Screw, Hex Wash. Hd. Tapp, 5/16-12 x .75 Price: $3.82 |
| 12 |
710-1260A |
Screw, Hex Wash. Hd. Tapp, 5/16-18 x .75 Price: $3.34 |
| 13 |
710-3005 |
Screw, Hex Cap, 3/8-16 x 1.25 GR5 Price: $3.61 |
| 14 |
710-3168 |
Screw, Carriage, 3/8-16 x 1.0 Price: $3.61 |
| 15 |
710-3178 |
CARRIAGE BOLT 3/8-16 x .75 Price: $3.93 |
| 16 |
712-04065 |
Nut, Hx Insert Flange Lck, 3/6-16 GrF Price: $3.68 |
| 17 |
712-0417A |
HEX NUT Price: $6.50 |
| 18 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 19 |
712-0641 |
Nut, Hex, M16-1.5 Price: $5.58 |
| 20 |
714-0470 |
Pin, Cotter, 1/8 x 1.25 Price: $3.90 |
| 21 |
917-04074 |
Adjustment, Deck, Gear This part replaces 717-04074. Price: $11.45 |
| 22 |
921-04041 |
WATER NOZZLE This part replaces 721-04041. Price: $20.19 |
| 23 |
932-0306A |
COMPRESSION SPRING This part replaces 732-0306A. Price: $7.69 |
| 24 |
732-0459C |
Spring, Extension, .94 Dia x 6.74 This part replaces 732-0459. Price: $16.05 |
| 25 |
734-04155 |
Wheel, Deck Ball, 5.0 Price: $19.04 |
| 26 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 27 |
736-0407 |
Washer, Bell, .45 x 1.0 x .062 Price: $3.64 |
| 28 |
736-0225 |
Washer, Internal Tooth Lock, 5/8 Price: $3.90 |
| 29 |
736-3072 |
Washer, Flat, .38 x .93 x .110 HT Price: $4.11 |
| 30 |
737-04003D |
DECK WASH NOZZLE This part replaces 737-04003C. Price: $20.69 |
| 31 |
738-04162C |
Shoulder Spacer, .8840 x .190 This part replaces 738-04162A. Price: $12.76 |
| 32 |
938-3056 |
Shoulder Screw, 1/2 Dia x 2.50 This part replaces 738-3056. Price: $8.53 |
| 33 |
942-04053C |
BLADES This part replaces 742-04053A. Price: $26.85 |
| 34 |
747-1116 |
Rod, Deck Hanger Price: $11.17 |
| 35 |
954-04044A |
DECK SPINDLE BELT This part replaces 754-04044A. Price: $59.35 |
| 36 |
753-08171 |
Pulley Kit, Idler, 4.25"Dia This part replaces 756-04129. Price: $33.06 |
| 37 |
783-04399 |
Cover, Belt LH Price: $83.68 |
| 38 |
783-04400 |
Cover, Belt RH Price: $83.68 |
| 39 |
783-04414A |
Deck Skirt, Center This part replaces 783-04414. Price: $28.73 |
| 40 |
783-04415 |
Skirt, RH Price: $25.09 |
| 41 |
783-05030 |
Bracket, Chute Mounting Price: $25.57 |
| 42 |
732-04372 |
Spring, Torsion Price: $8.93 |
| 43 |
711-04565 |
Pin, Hinge Price: $13.59 |
| 44 |
736-0315 |
Washer, Flat, .76 x 1.50 x .12 Price: $5.94 |
| 45 |
937-3000 |
GREASE FITTING This part replaces 7373000. Price: $4.04 |
| 46 |
738-1010A |
Shaft, Spindle, 5.75 Price: $43.21 |
| 47 |
741P0919B |
BALL BEARING This part replaces 741-0919. Price: $18.90 |
| 48 |
748-0160A |
Spacer, .79 x 1.25 x .175 Price: $5.87 |
| 49 |
750-1000 |
Spacer, .80 x 1.10 x 1.32 Price: $3.90 |
| 50 |
750-1349A |
Spacer, .79 x 1.82 x .55 Price: $12.22 |
