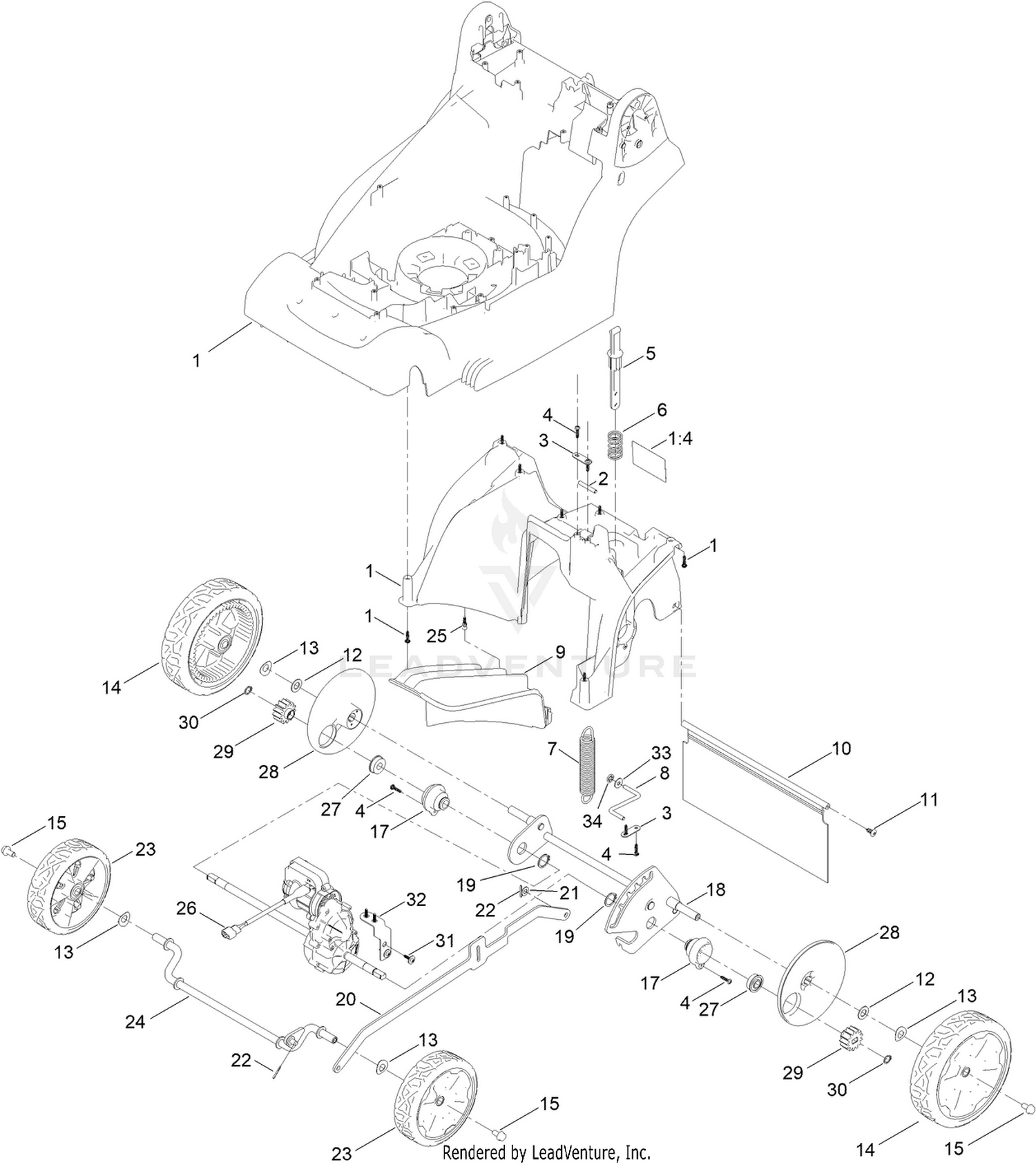

| Ref | Part Number | Description |
|---|
| 1 |
134-6914 |
DECK, GLUED (43) Price: Call Us |
| 2 |
134-4096 |
BAR, SPRING MOUNT Price: Call Us |
| 3 |
134-4394 |
AXLE PLATE, SMALL Price: Call Us |
| 4 |
134-7001 |
SCREW Price: Call Us |
| 5 |
134-4319 |
HOC BUTTON PLUNGER Price: Call Us |
| 6 |
134-4088 |
SPRING, HOC BUTTON Price: Call Us |
| 7 |
134-4092 |
HOC SPRING, 4 WHEEL Price: Call Us |
| 8 |
134-4321 |
HOC WIRE Price: Call Us |
| 9 |
134-5295 |
MULCH PLUG Price: Call Us |
| 10 |
134-4437 |
SHIELD-TRAILING Price: Call Us |
| 11 |
139-1692 |
SCREW-THD This part replaces 117-1092. Price: $0.39 |
| 12 |
ZWP1L000U |
WASHER-PLAIN Price: Call Us |
| 13 |
134-4457 |
WAVE WASHER, FRONT WHEELS Price: Call Us |
| 14 |
134-4363 |
WHEEL-REAR ASSEMBLY Price: Call Us |
| 15 |
134-4358 |
BOLT, M8 X 1.25, 16MM Price: Call Us |
| 17 |
134-4452 |
BEARING MOUNT Price: Call Us |
| 18 |
134-4050 |
REAR AXLE FRAME, ASSY, WHEEL Price: $36.72 |
| 19 |
134-4435 |
CIRCLIP, EXT Price: $3.21 |
| 20 |
134-4029 |
Cover, Exhaust-Right Price: Call Us |
| 21 |
106-4756 |
WASHER-PLAIN Price: Call Us |
| 22 |
134-4454 |
COTTER PIN Price: Call Us |
| 23 |
134-4307 |
WHEEL-TORO FRONT ASSEMBLY Price: Call Us |
| 24 |
134-4312 |
FRONT AXLE, ASSEMBLY Price: Call Us |
| 25 |
134-5294 |
PIN, RETAINING, MULCH PLUG Price: Call Us |
| 26 |
134-4102 |
TRANSMISSION, 4-WHEEL Price: Call Us |
| 27 |
104-8699 |
BEARING-BALL Price: $4.39 |
| 28 |
134-4033 |
INNER COVER, REAR WHEEL Price: Call Us |
| 29 |
134-5214 |
GEAR-PINION, 13T Price: Call Us |
| 30 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 31 |
134-4476 |
SCREW, T20 X 18, FLANGED Price: Call Us |
| 32 |
134-4391 |
BRACKET, GEARBOX, 4-WHEEL Price: Call Us |
| 33 |
134-5439 |
WASHER Price: Call Us |
