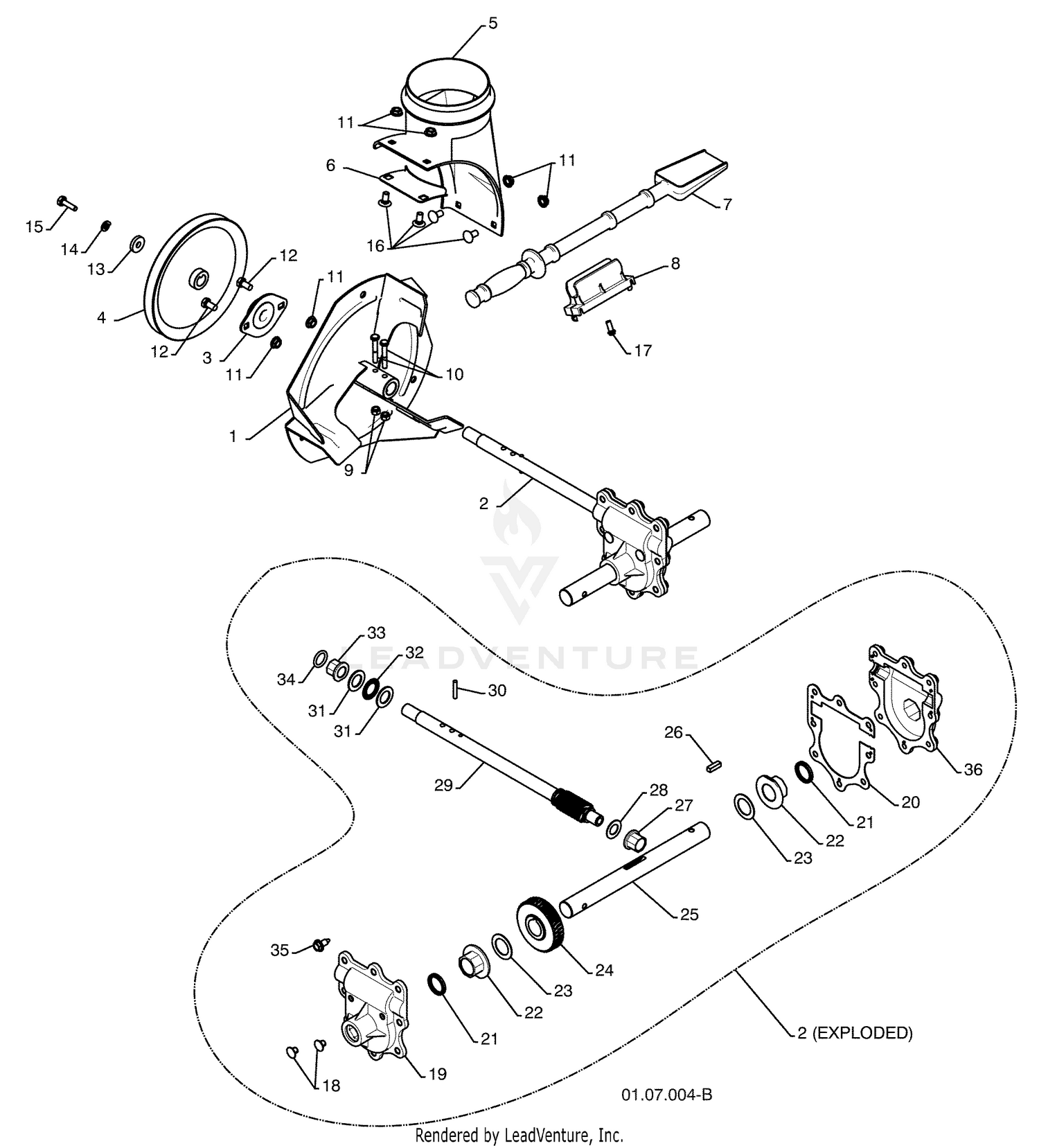

| Ref | Part Number | Description |
|---|
| 1 |
531167901 |
SERVICE KIT IMPELLER WELDMENT This part replaces 532184105. Price: $44.99 |
| 1 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 2 |
2412-133 |
CLAMP-R Price: $3.19 |
| 2 |
598831601 |
Service Kit This part replaces 532196710. Price: $199.99 |
| 3 |
108-6703 |
ADJUSTER-SEAT This part replaces 66-8530. Price: $183.47 |
| 3 |
532188909 |
BEARING FLANGE Price: $24.99 |
| 4 |
532427071 |
PULLEY.IMPELLER.SNOW This part replaces 532191079. Price: $27.99 |
| 4 |
82-9060 |
DISCONTINUED Price: Call Us |
| 5 |
585056901 |
CHUTE.DISCHARGE.BASE This part replaces 532175322. Price: $9.99 |
| 5 |
71-2410 |
PLATE-SUSPENSION, UPPER Price: $198.33 |
| 6 |
597433002 |
Brackets This part replaces 532184095. Price: $3.99 |
| 6 |
71-2400 |
DISCONTINUED Price: Call Us |
| 7 |
532192199 |
CLEAN OUT TOOL Price: $14.99 |
| 7 |
71-2380 |
WASHER Price: $1.22 |
| 8 |
532405400 |
CLIP.CLEANOUT.TOOL Price: $2.99 |
| 8 |
71-2390 |
RIVET-POP Price: $2.47 |
| 9 |
323-6 |
SCREW-HH Price: $0.66 |
| 9 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 10 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 10 |
596322101 |
BOLT HEXAGON BOLT 1/4-20 X 1-5 This part replaces 874780426. Price: $2.99 |
| 11 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 11 |
83-6660-03 |
SEAT BRACKET SUPPORT ASM This part replaces 83-6660. Price: $234.45 |
| 12 |
107-1188 |
SEAT SUSPENSION This part replaces 71-2420. Price: $951.87 |
| 12 |
596031601 |
Screws This part replaces 532163183. Price: $2.99 |
| 13 |
39-5710 |
PLUG-PLASTIC Price: $8.50 |
| 13 |
819111507 |
WASHER, FLAT Price: $4.99 |
| 14 |
40-3890 |
TRIM Price: $89.47 |
| 14 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 15 |
33115-025 |
SCREW-HH This part replaces 48-7780. Price: $0.61 |
| 15 |
874940516 |
CAPSCREW.HX.HD.5/16-18X1.00.NY Price: $3.99 |
| 16 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 16 |
532180355 |
BOLT.CARRIAGE.5/16-18X Price: $3.99 |
| 17 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 17 |
532194189 |
SCREW.HWH.13-16-5.8.BZP Price: $4.99 |
| 18 |
32121-4 |
PIN-ROLL, SLOTTED Price: $3.49 |
| 18 |
532086447 |
PLUG.AUGER.GEAR.BOX.SNOW This part replaces 532407760. Price: $3.99 |
| 19 |
27-4720 |
SHAFT-PIVOT, SEAT Price: $32.27 |
| 19 |
532174688 |
HOUSING.GEARBOX.RH.SNOW This part replaces 532407761. Price: $22.99 |
| 20 |
3230-22 |
SCREW-CARR Price: $1.99 |
| 20 |
532175311 |
GASKET.AUGER.GEARBOX This part replaces 532407766. Price: $7.99 |
| 21 |
33104-025 |
SCREW-HHF Price: $6.47 |
| 21 |
532174698 |
SEAL, OIL This part replaces 532407770. Price: $4.99 |
| 22 |
48-7960 |
NUT This part replaces 33015-00. Price: $1.40 |
| 22 |
532174701 |
BUSHING FLANGE 1" This part replaces 532407762. Price: $29.99 |
| 23 |
532007396 |
WASHER RACE BEARING THRUST This part replaces 532174697. Price: $3.99 |
| 24 |
598831601 |
Service Kit This part replaces 532407763. Price: $199.99 |
| 25 |
532174657 |
SHAFT, AUGER This part replaces 532407764. Price: $59.99 |
| 26 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $4.99 |
| 27 |
532174686 |
BUSHING.FLANGE.(.625X.75) This part replaces 532407758. Price: $22.99 |
| 28 |
532174683 |
WASHER, THRUST 5/8 Price: $6.99 |
| 29 |
532407757 |
SHAFT, IMPELLER Price: $89.99 |
| 30 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532007836. Price: $3.99 |
| 31 |
532174681 |
WASHER, THRUST 3/4 Price: $11.99 |
| 32 |
532174684 |
BEARING TRUST 3/4 NTA-1220 Price: $6.99 |
| 33 |
532407769 |
BUSHING, FLANGE 3/4 Price: $7.99 |
| 34 |
532407768 |
O-RING Price: $3.99 |
| 35 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532407767. Price: $4.99 |
