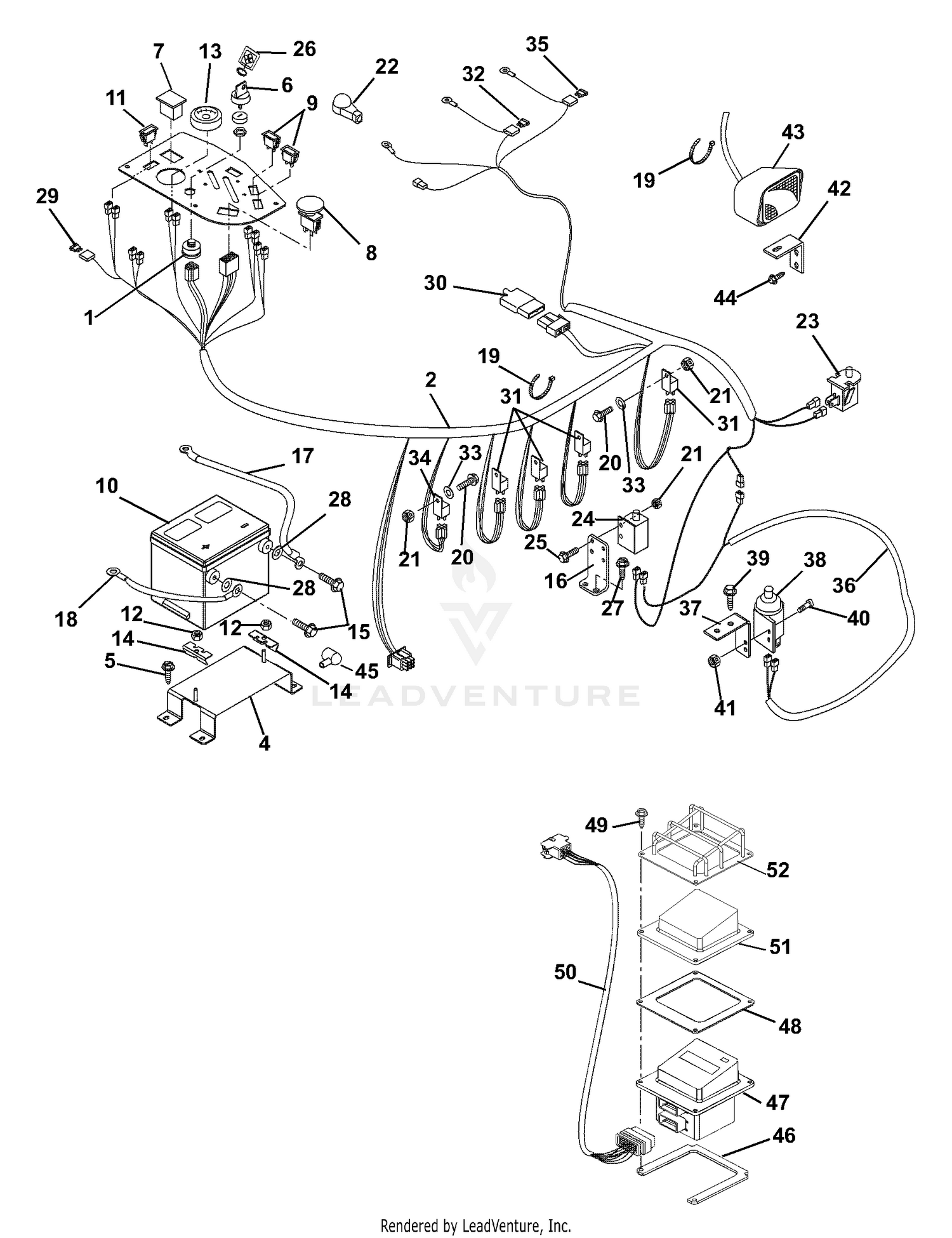

| Ref | Part Number | Description |
|---|
| 4 |
09266551 |
WMT, BATTERY SUPPORT Price: $79.95 |
| 5 |
07400129 |
SCR,TAP .375-16X.75 HWH TR ZCC This part replaces 07415400. Price: $1.45 |
| 6 |
09287000 |
KEY, W/ SHIELD Price: $14.95 |
| 8 |
01545600 |
SWITCH, CLUTCH Price: $23.95 |
| 10 |
00525500 |
BATTERY, GROUP 70 450 CCA 35 A Price: Call Us |
| 11 |
08973300 |
SWITCH, 2 POLE/ROCKER Price: $6.45 |
| 12 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 13 |
09080200 |
GAUGE, TEMPERATURE Price: $89.95 |
| 14 |
09266600 |
BRKT, BATTERY HOLD-DOWN Price: $16.45 |
| 15 |
00526400 |
BATT TERMINAL SCREW Price: Call Us |
| 16 |
09275851 |
MOUNT, SAFETY SWITCH Price: $17.45 |
| 19 |
07517300 |
CABLE TIE LG 5-1/2 This part replaces 036313. Price: $2.95 |
| 22 |
07533200 |
BOOT, EYELET TERMINAL Price: $3.45 |
| 24 |
03657100 |
SWITCH- SINGLE POLE N.O. Price: $8.45 |
| 25 |
05901837 |
BLT, HWH #10-24X.75 ZCC This part replaces 06116900. Price: $1.95 |
| 26 |
03490000 |
KEY CHAIN This part replaces 045842. Price: $7.95 |
| 27 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07412000. Price: $0.45 |
| 28 |
06401023 |
WSHR-FLT .375X.875X.083 ZCC This part replaces 06435700. Price: $1.45 |
| 29 |
00524700 |
FUSE- 15 AMP. Price: $3.45 |
| 30 |
09293501 |
DIODE, CONNECTOR SHELL This part replaces 09293500. Price: $10.45 |
| 42 |
09287551 |
BRACKET, HEADLIGHT MTG Price: $16.45 |
| 43 |
02463600 |
HEADLIGHT Price: $66.45 |
| 44 |
07400126 |
SCR,TAP .375-16X.50 HWH TR ZCC This part replaces 07412900. Price: $1.45 |
| 45 |
07533200 |
BOOT, EYELET TERMINAL Price: $3.45 |
| 21510400 |
IGNITION |
KEY SET Price: $9.45 21510400 |
