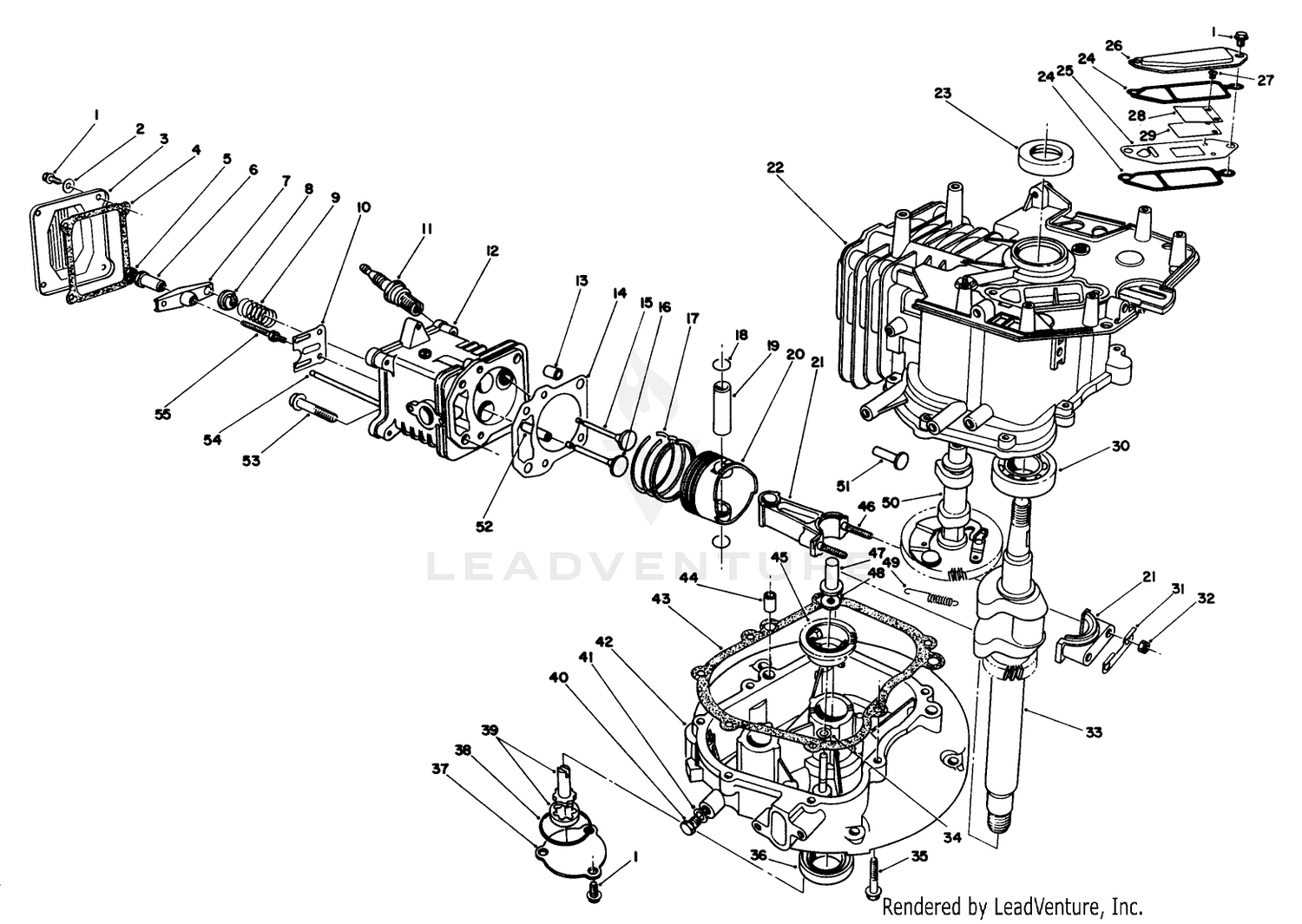

Engine Assembly (continued)(model No. Vmh7)
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 81-1170 | BOLT Price: $6.05 |
| 2 | 81-3790 | WASHER Price: Call Us |
| 3 | 81-3780 | COVER Price: $41.69 |
| 4 | 81-3770 | GASKET Price: Call Us |
| 5 | 81-3760 | NUT Price: Call Us |
| 6 | 81-3750 | PIVOT Price: Call Us |
| 7 | 81-3740 | ARM Price: $16.63 |
| 8 | 81-3730 | RETAINER Price: $7.74 |
| 9 | 81-3720 | SPRING Price: Call Us |
| 10 | 81-3710 | GUIDE Price: Call Us |
| 11 | 81-3250 | SPARK PLUG Price: $7.59 |
| 12 | 81-3700 | HEAD Price: Call Us |
| 13 | 81-3690 | PIN Price: Call Us |
| 14 | 81-4710 | GASKET Price: $20.12 |
| 15 | 81-3670 | VALVE-INTAKE Price: $21.91 |
| 16 | 81-3660 | VALVE-EXHAUST Price: Call Us |
| 17 | 81-3650 | RING SET Price: $74.13 |
| 18 | 50-0960 | CIRCLIP Price: Call Us |
| 19 | 81-3630 | PIN Price: $16.63 |
| 20 | 81-3620 | PISTON Price: Call Us |
| 21 | 81-3390 | Connection Rod Assembly (Incl. Ref. #31, 32, 46) Price: Call Us |
| 22 | 81-3280 | ENGINE BLOCK Price: $466.71 |
| 23 | 81-3290 | SEAL Price: $17.21 |
| 24 | 81-3300 | GASKET Price: Call Us |
| 26 | 81-3320 | COVER Price: Call Us |
| 30 | 81-3380 | BEARING Price: $58.68 |
| 31 | 81-3400 | Plate-Lock Price: Call Us |
| 32 | 50-0510 | NUT Price: Call Us |
| 33 | 81-3430 | CRANKSHAFT Price: Call Us |
| 34 | 81-3440 | WASHER Price: Call Us |
| 35 | 81-3450 | BOLT Price: $6.44 |
| 36 | 81-3460 | SEAL Price: $22.15 |
| 37 | 81-3470 | COVER Price: Call Us |
| 38 | 81-3480 | O-RING Price: $5.06 |
| 39 | 81-3490 | OIL PUMP Price: Call Us |
| 40 | 81-4970 | OIL DRAIN PLUG Price: $5.45 |
| 41 | 81-3510 | GASKET Price: $4.92 |
| 42 | 13-5939 | ENGINE SHORT BLOCK This part replaces 81-3520. Price: $689.81 |
| 43 | 81-3530 | GASKET Price: Call Us |
| 44 | 50-0450 | PIN Price: Call Us |
| 45 | 81-3550 | GOVERNOR FLYWEIGHT ASM Price: Call Us |
| 46 | 81-3610 | STUD Price: Call Us |
| 47 | 81-3560 | PLUNGER Price: $6.71 |
| 48 | 81-3570 | WASHER Price: $7.74 |
| 49 | 81-3580 | SPRING Price: Call Us |
| 50 | 81-3590 | CAMSHAFT Price: Call Us |
| 51 | 81-3600 | TAPPET Price: Call Us |
| 52 | 81-3830 | GUIDE Price: $33.46 |
| 53 | 50-0190 | BOLT Price: Call Us |
| 54 | 81-3810 | ROD Price: $18.65 |
| 55 | 81-3800 | STUD Price: $10.11 |
