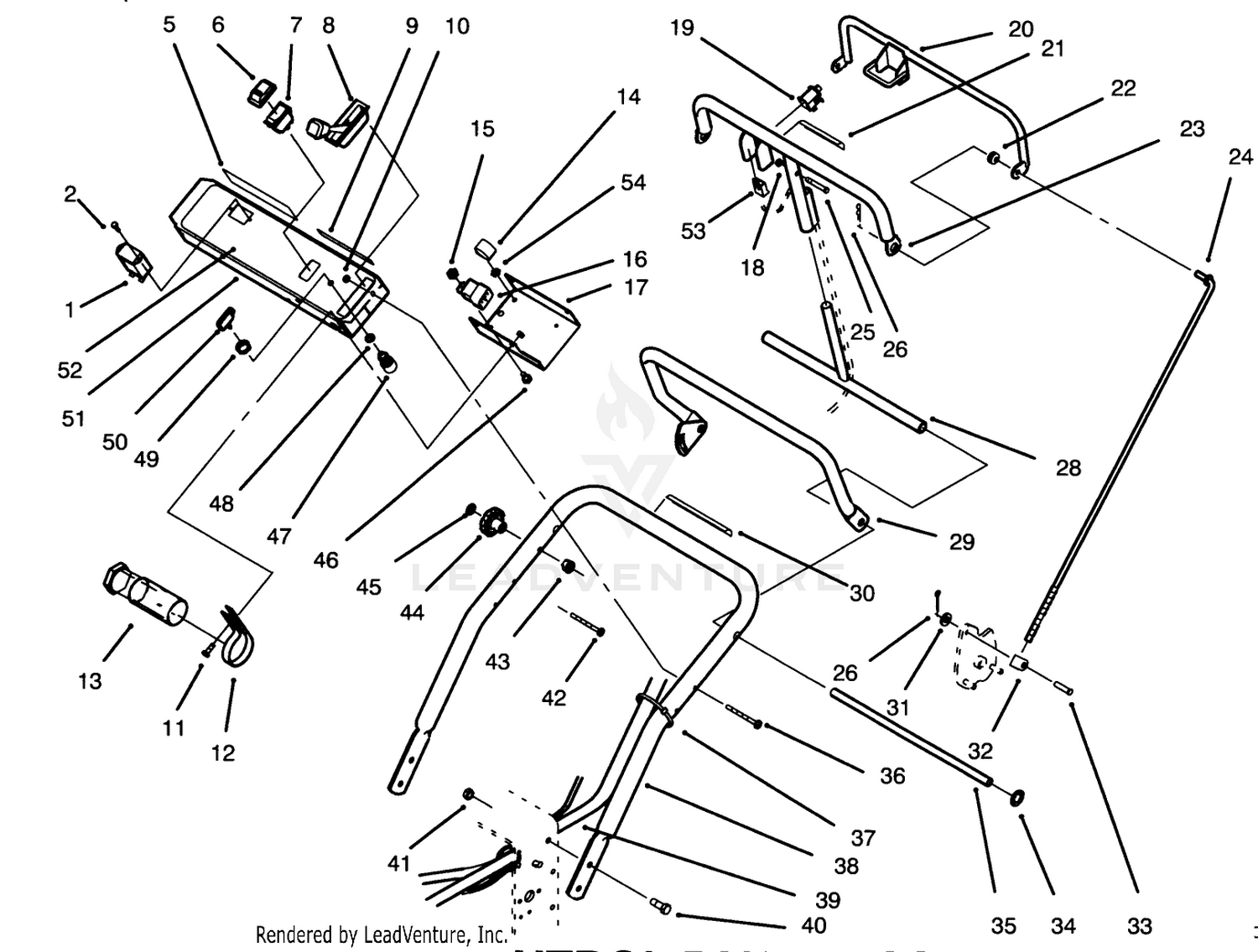

| Ref | Part Number | Description |
|---|
| 1 |
120-2244 |
HOURMETER This part replaces 75-6820. Price: $48.06 |
| 2 |
32144-18 |
SCREW-HWH Price: $1.80 |
| 5 |
71-1280 |
DECAL-INSTRUCTION, SAFETY Price: $19.73 |
| 6 |
82-3820 |
BOOT-SWITCH Price: $7.71 |
| 7 |
121-8032 |
SWITCH SERVICE KIT This part replaces 82-2300. Price: $31.73 |
| 8 |
74-0630 |
CONTROL-THROTTLE Price: $69.48 |
| 9 |
65-3090 |
DECAL-INSTRUCTION Price: $8.05 |
| 10 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 11 |
32144-19 |
SCREW-SHWH Price: $0.89 |
| 12 |
2412-120 |
CLAMP-R Price: $6.49 |
| 13 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 14 |
86-7910 |
Module Price: Call Us |
| 15 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 16 |
63-7590 |
RELAY Price: $78.15 |
| 17 |
93-1187-03 |
PANEL-BOTTOM This part replaces 93-1187. Price: $31.72 |
| 18 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 19 |
82-2190 |
SWITCH-BAIL Price: $13.99 |
| 20 |
82-7680-03 |
BAIL This part replaces 82-7680. Price: $97.99 |
| 21 |
82-2610 |
DECAL - CONTROL BAR Price: Call Us |
| 22 |
237-141 |
GROMMET-RUBBER Price: $2.39 |
| 23 |
82-7690-03 |
BAR-CONTROL This part replaces 82-7690. Price: $159.30 |
| 24 |
82-7631 |
ROD-CONTROL Price: $40.94 |
| 25 |
32105-1 |
SCREW-SHH Price: $3.19 |
| 26 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 28 |
82-3940 |
Pivot Control Assembly Price: Call Us |
| 29 |
82-4300 |
REFERENCE HANDLE WA *B Price: $93.39 |
| 30 |
82-4590 |
DECAL-WARNING Price: $7.48 |
| 31 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 32 |
74-0521 |
FITTING-ROD Price: $13.99 |
| 33 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 34 |
32151-80 |
NUT-PUSH-ON, CIRCULAR Price: $1.00 |
| 35 |
74-0470 |
PIVOT ROD Price: $30.28 |
| 36 |
32105-14 |
SCREW-SHH Price: $3.19 |
| 37 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 38 |
67-6451 |
UPPER HANDLE *R Price: $157.40 |
| 39 |
93-1188 |
DISCONTINUED Price: Call Us |
| 40 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 41 |
32128-21 |
NUT-HF Price: $0.39 |
| 42 |
3230-26 |
SCREW-CARR Price: $3.99 |
| 43 |
82-3840 |
SPACER Price: $2.43 |
| 44 |
19-4050 |
KNOB Price: $15.99 |
| 45 |
32112-18 |
BOLT RETAINER Price: Call Us |
| 46 |
321-3 |
SCREW-HH Price: $0.28 |
| 47 |
23-0660 |
SWITCH-STARTER Price: $21.99 |
| 48 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 49 |
218-461 |
NUT-HH Price: $2.50 |
| 50 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 51 |
82-2181-03 |
CONTROL PANEL This part replaces 82-2181. Price: $64.08 |
| 52 |
82-7721 |
DECAL - CONTROL PANEL Price: Call Us |
| 53 |
218-595 |
CONNECTOR-BODY Price: $6.46 |
