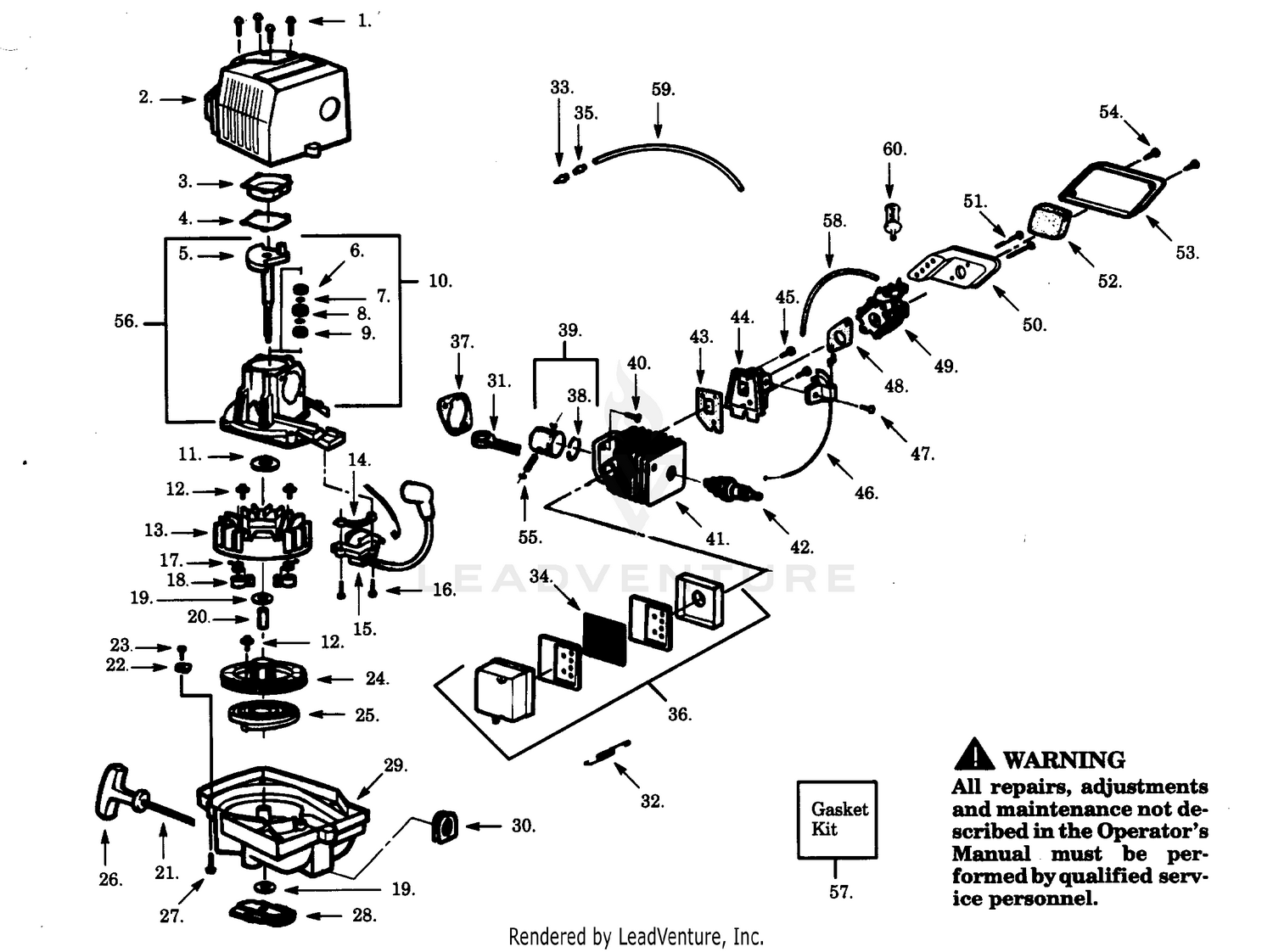

| Ref | Part Number | Description |
|---|
| 1 |
530015935 |
Screw Price: $0.99 |
| 2 |
530036454 |
Shroud Price: $12.88 |
| 3 |
3-8057 |
Tube, Reel-Front Price: Call Us |
| 3 |
530029929 |
Crankcase Cover Price: $1.99 |
| 4 |
5-2292 |
Shield, Grass Price: Call Us |
| 4 |
530019181 |
Gasket Price: $1.99 |
| 5 |
40-9120 |
DISCONTINUED This part replaces 5-1320. Price: Call Us |
| 5 |
530014307 |
Crankshaft Ass'y. Price: $14.99 |
| 6 |
5-3650 |
Hanger, Right Hand Price: Call Us |
| 6 |
530032125 |
Inner Bearing Price: $11.99 |
| 7 |
5-1286 |
DISCONTINUED Price: Call Us |
| 7 |
530015945 |
Retaining Ring Price: $1.99 |
| 8 |
3257-14 |
KEY Price: $6.19 |
| 8 |
530019179 |
Crankcase Seal Price: $2.99 |
| 9 |
3246-3 |
SCREW-HSH Price: $12.70 |
| 9 |
530032124 |
Outer Bearing Price: $4.99 |
| 10 |
5-3646 |
Hanger, Left Hand Price: Call Us |
| 11 |
530015941 |
Retaining Ring Price: $1.99 |
| 11 |
8-6820 |
CHAIN GUARD WA *R This part replaces 5-3635. Price: $124.30 |
| 12 |
322-6 |
SCREW-HH Price: $0.45 |
| 12 |
530015882 |
Screw Price: $1.99 |
| 13 |
545221701 |
FLYWHEEL ASSY This part replaces 530039149. Price: $8.99 |
| 14 |
530036145 |
Spacer Price: $1.99 |
| 15 |
530039163 |
Ignition Module Price: $34.99 |
| 16 |
530015954 |
Screw Price: $1.99 |
| 17 |
530047570 |
Spring - Starter Dog This part replaces 530029940. Price: $1.99 |
| 18 |
530029939 |
Starter Dog Price: Call Us |
| 19 |
530015828 |
Washer Price: $1.99 |
| 20 |
530015930 |
Flywheel Spacer Price: $0.99 |
| 21 |
530069232 |
Rope Kit Price: $3.99 |
| 22 |
530015963 |
Retainer Price: $0.99 |
| 23 |
530015496 |
Screw Price: $1.99 |
| 24 |
530069353 |
Starter Pulley Kit (Inc. 12) Price: $5.99 |
| 25 |
545008010 |
STARTER SPRING This part replaces 530029395. Price: $3.99 |
| 26 |
530027569 |
Starter Handle Price: $1.99 |
| 27 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 28 |
530014396 |
Clutch Ass'y. Kit Price: $14.99 |
| 29 |
534014512 |
Fan Housing Price: $3.33 |
| 30 |
530019182 |
Grommet Price: $1.99 |
| 31 |
530069615 |
Assy-Connecting Rod This part replaces 530014397. Price: $14.99 |
| 32 |
530016197 |
Muffler Spring This part replaces 530029930. Price: $1.99 |
| 33 |
530026119 |
Check Valve Price: $1.99 |
| 34 |
530036180 |
Muffler Screen Price: $1.99 |
| 35 |
530024475 |
Vent Fitting Price: $1.99 |
| 36 |
530069659 |
Muffler Kit This part replaces 530069352. Price: $11.99 |
| 37 |
530019223 |
Gasket-Cylinder This part replaces 530019187. Price: $1.99 |
| 38 |
530029924 |
Piston Ring Price: $4.99 |
| 39 |
530069613 |
Kit - Piston This part replaces 530069350. Price: $6.99 |
| 40 |
530015953 |
Screw Price: $1.99 |
| 42 |
530030073 |
Spark Plug Price: Call Us |
| 43 |
530019233 |
Gasket - Cylin./Carb. This part replaces 530019185. Price: $1.99 |
| 44 |
530049024 |
Carb. Adaptor This part replaces 530036457. Price: $5.99 |
| 45 |
530016014 |
Screw Price: $1.99 |
| 46 |
530014384 |
Throttle Cable Ass'y. Price: $5.99 |
| 47 |
530015775 |
Screw Price: $1.99 |
| 48 |
530019194 |
Gasket This part replaces 530019183. Price: $1.99 |
| 49 |
530035305 |
CARBURETOR This part replaces 530035306. Price: Call Us |
| 50 |
530036192 |
Air Box Price: $2.99 |
| 51 |
530015849 |
Screw Price: $1.99 |
| 52 |
530029934 |
Air Filter Foam Price: $1.99 |
| 53 |
530036193 |
Air Filter Cover Price: $1.99 |
| 54 |
530015635 |
Screw Price: $1.99 |
| 55 |
530015162 |
Piston Pin Retainer Price: $1.99 |
| 58 |
530069247 |
Fuel Line Price: $3.99 |
| 59 |
530069216 |
Vent Line Price: $3.99 |
| 60 |
530095646 |
Assy-Fuel Pickup This part replaces 530014199. Price: $2.99 |
