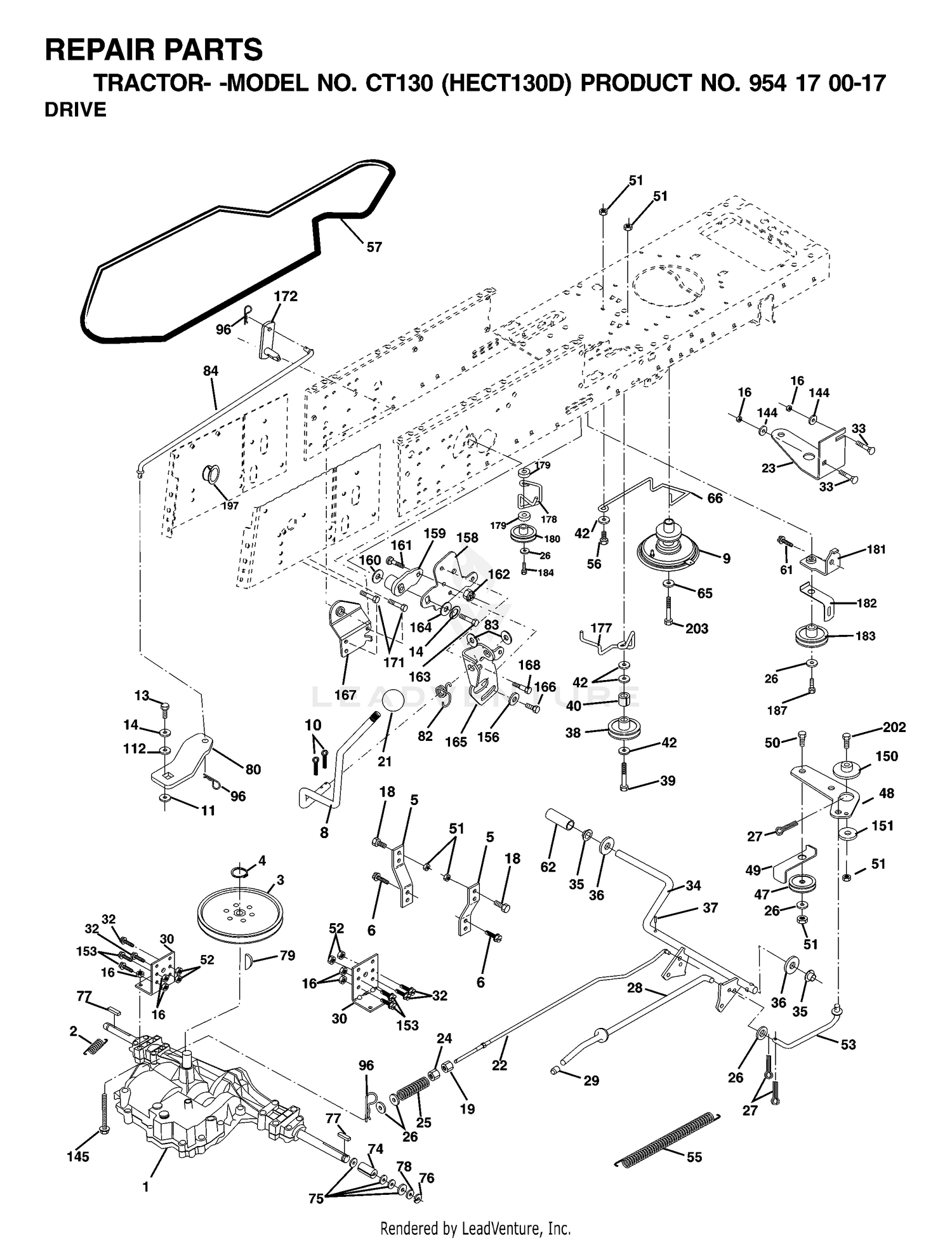

| Ref | Part Number | Description |
|---|
| 1 |
32-1140 |
DISCONTINUED This part replaces 321-13. Price: $2.04 |
| 2 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 2 |
532146682 |
SPRING,BRAKE RETURN Price: $5.99 |
| 3 |
13-6070 |
BUSHING Price: $231.61 |
| 3 |
584450701 |
PULLEY TRANSAXLE.7" This part replaces 532165999. Price: $49.99 |
| 4 |
13-6030 |
SHEAVE Price: $456.80 |
| 4 |
812000028 |
RETAINING RING LT Price: $1.99 |
| 5 |
13-2240 |
KEY-SQUARE Price: $14.31 |
| 5 |
532121520 |
STRAP TORQUE Price: $6.99 |
| 6 |
13-3790 |
FAN SHAFT Price: $671.39 |
| 7 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 8 |
3217-7 |
NUT-HEX Price: $0.28 |
| 8 |
532165619 |
ROD.SHIFT.FENDER.ADJ.LT.CRD Price: $19.99 |
| 9 |
13-2810 |
SQUARE KEY Price: $31.13 |
| 9 |
532179887 |
CLUTCH ASSY This part replaces 532170163. Price: $399.99 |
| 10 |
13-3350-01 |
MOUNTING BRKT This part replaces 13-3350. Price: $59.51 |
| 10 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 11 |
532105701 |
WASH-SHFT PLT LT Price: $3.99 |
| 11 |
67-5360 |
DECAL-DANGER Price: $14.99 |
| 12 |
13-3850-01 |
BOOT-BLOWER Price: $344.08 |
| 13 |
121-2839 |
DECAL-CAUTION This part replaces 13-6410. Price: $25.19 |
| 13 |
596136601 |
Bolts This part replaces 874550412. Price: $1.99 |
| 14 |
321-4 |
SCREW-HH Price: $0.99 |
| 14 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 15 |
323-7 |
SCREW-HH Price: $0.65 |
| 16 |
3244-14 |
SCREW-SET, SQH Price: $7.19 |
| 16 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 17 |
3218-5 |
NUT-JAM Price: $0.27 |
| 18 |
117-4979 |
DECAL-WARNING This part replaces 92-8309. Price: $12.04 |
| 18 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 19 |
121-2843 |
DECAL-WARNING This part replaces 93-7307. Price: $21.34 |
| 19 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 20 |
121-2842 |
DECAL-INSTRUCTION This part replaces 93-4041. Price: $31.63 |
| 21 |
13-3420-03 |
FAN ASM Price: $2,196.74 |
| 21 |
532121274 |
KNOB.DUCKHEAD.1/2 Price: $8.99 |
| 22 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 22 |
532165811 |
ROD Price: $47.99 |
| 23 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 23 |
532170017 |
Bracket Clutch Noram Price: Call Us |
| 24 |
325-6 |
SCREW-HH Price: $1.42 |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $4.99 |
| 25 |
56-6220 |
BEARING Price: $122.98 |
| 26 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 27 |
32153-5 |
NUT-HEX Price: $1.59 |
| 27 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 28 |
532145204 |
ROD BRAKE PARK LT Price: $3.12 |
| 30 |
13-1420-01 |
COVER-INSPECTION Price: $31.70 |
| 30 |
532130807 |
BRACKET TRANSAXLE This part replaces 532174973. Price: $3.99 |
| 31 |
32103-12 |
NUT-WING Price: $1.15 |
| 32 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 32 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 33 |
119-6263 |
BLOWER AND THROAT ASM This part replaces 13-6280-01. Price: $7,479.09 |
| 33 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 34 |
323-6 |
SCREW-HH Price: $0.66 |
| 34 |
532165496 |
SHAFT Price: $30.99 |
| 35 |
13-6390-01 |
HANDLE-FLAP Price: $134.01 |
| 35 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 36 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 36 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 37 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 37 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532124963. Price: $3.99 |
| 38 |
13-6360 |
ROD-LIFT, FLAP Price: $118.60 |
| 38 |
532165936 |
PULLEY.FLAT Price: $22.99 |
| 39 |
3218-6 |
NUT-JAM Price: $0.61 |
| 39 |
874760644 |
BOLT Price: $3.99 |
| 40 |
13-0330 |
BLOCK-PIVOT Price: $112.26 |
| 40 |
532124965 |
SPACER T Price: $3.99 |
| 41 |
323-9 |
SCREW-HH Price: $1.29 |
| 42 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 42 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 43 |
321-3 |
SCREW-HH Price: $0.28 |
| 44 |
95-3112-01 |
LOWER FLAP BLADE ASM Price: $682.32 |
| 45 |
13-3130 |
END-FLAP Price: $26.55 |
| 46 |
321-5 |
SCREW-HH Price: $0.22 |
| 47 |
13-4700 |
LOWER FLAP ASM Price: $1,182.39 |
| 47 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 48 |
13-4560-03 |
WEIGHT-FLAP Price: $25.30 |
| 48 |
532154407 |
BELLCRANK, CLUTCH Price: $5.99 |
| 49 |
321-8 |
SCREW-HH Price: $0.34 |
| 49 |
531151801 |
SERVICE KIT RETAIN BELT RETAIN This part replaces 532123205. Price: $3.99 |
| 50 |
13-1390-01 |
RETAINER-FLAP Price: $96.90 |
| 50 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874760624. Price: $6.99 |
| 51 |
3217-5 |
NUT-HEX Price: $0.25 |
| 51 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 52 |
13-6090-01 |
SIDE GUARD WA Price: $157.49 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 53 |
321-4 |
SCREW-HH Price: $0.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 54 |
322-1 |
SCREW-HH Price: $0.22 |
| 55 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 56 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 56 |
874760620 |
BOLT Price: $4.99 |
| 57 |
13-4800-01 |
BELT GUARD WA This part replaces 13-4800. Price: $1,224.67 |
| 57 |
532165631 |
V-BELT.KEV.111" Price: $54.99 |
| 58 |
32104-109 |
SCREW-HWH Price: $0.87 |
| 59 |
13-2640 |
V-BELT, ENGINE FAN Price: $355.29 |
| 60 |
325-7 |
SCREW-HH Price: $1.53 |
| 61 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 61 |
93-4020-01 |
COVER-INSPECTION Price: $28.77 |
| 62 |
532123533 |
COVER, PEDAL (1 2) Price: $6.99 |
| 62 |
93-7708 |
STRIP-SEAL Price: $10.93 |
| 65 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 66 |
531151001 |
SERVICE KIT BELT KEEPER This part replaces 532154778. Price: $6.99 |
| 74 |
532137057 |
SPACER AXLE Price: $5.99 |
| 75 |
532121749 |
WASHER Price: $2.99 |
| 76 |
812000001 |
E-RING LT Price: $3.99 |
| 77 |
532123583 |
SQUARE KEY Price: $3.99 |
| 78 |
532121748 |
WASHER Price: $3.99 |
| 79 |
532125096 |
KEY STD (1373) DANA Price: $7.99 |
| 80 |
532145090 |
ARM SHIFT Price: $6.99 |
| 82 |
532123782 |
SPRING,TORSION Price: $3.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $3.99 |
| 84 |
532165621 |
LINK Price: $34.99 |
| 96 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 112 |
596039801 |
Washers This part replaces 819091210. Price: $2.99 |
| 144 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga SD Price: $5.99 |
| 145 |
596136501 |
Bolts This part replaces 874490540. Price: $3.99 |
| 150 |
532165850 |
BUSHING.BELLCRANK.GRD.DR Price: $4.99 |
| 151 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 153 |
596580801 |
Bolts This part replaces 874760516. Price: $2.99 |
| 156 |
596218801 |
Washers This part replaces 532166002. Price: $1.99 |
| 158 |
532437458 |
BRACKET.SHIFT.MOUNT This part replaces 532165589. Price: $5.99 |
| 159 |
532444304 |
HUB.SHIFT This part replaces 532165494. Price: $5.99 |
| 160 |
819292016 |
Washer 29/32 x 1 - 1/4 x 16 Ga. Price: $6.99 |
| 161 |
872110407 |
BOLT.CARRIAGE.1/4-20 X 7/8 This part replaces 872140406. Price: $3.99 |
| 162 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 163 |
596230901 |
Screws This part replaces 874780416. Price: $2.99 |
| 164 |
819091010 |
Washer 5/8 x .281 x 10 Ga. Price: $3.15 |
| 165 |
531149501 |
SERVICE KIT BRACKET BRACKET.PI This part replaces 532165623. Price: $4.99 |
| 166 |
532166880 |
SCREW Price: $4.99 |
| 167 |
532165588 |
BRACKET.SUPT.SHIFT.CRD Price: $17.99 |
| 168 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $8.99 |
| 171 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 172 |
584324101 |
SHAFT.ASM.SHIFT.FRT.CRD This part replaces 532165635. Price: $14.99 |
| 177 |
532165932 |
KEEPER Price: $6.99 |
| 178 |
532165933 |
KEEPER Price: $3.99 |
| 179 |
532120958 |
WASHER Price: $5.99 |
| 180 |
532165630 |
PULLEY.FLAT.IDLER Price: $27.99 |
| 181 |
532165797 |
BRKT.IDLER.GRD.DR.CRD Price: $2.99 |
| 182 |
529846301 |
SERVICE KIT KEEPER.BELT.2.5".V This part replaces 532165634. Price: $5.99 |
| 183 |
532165626 |
PULLEY.V-IDLER Price: $29.99 |
| 184 |
596564005 |
BOLT This part replaces 817490644. Price: $8.99 |
| 187 |
874760620 |
BOLT This part replaces 817490620. Price: $4.99 |
| 202 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 203 |
501606701 |
BOLT.HEX.7/16-20X5.GR5.GREEN This part replaces 871170780. Price: $7.99 |
