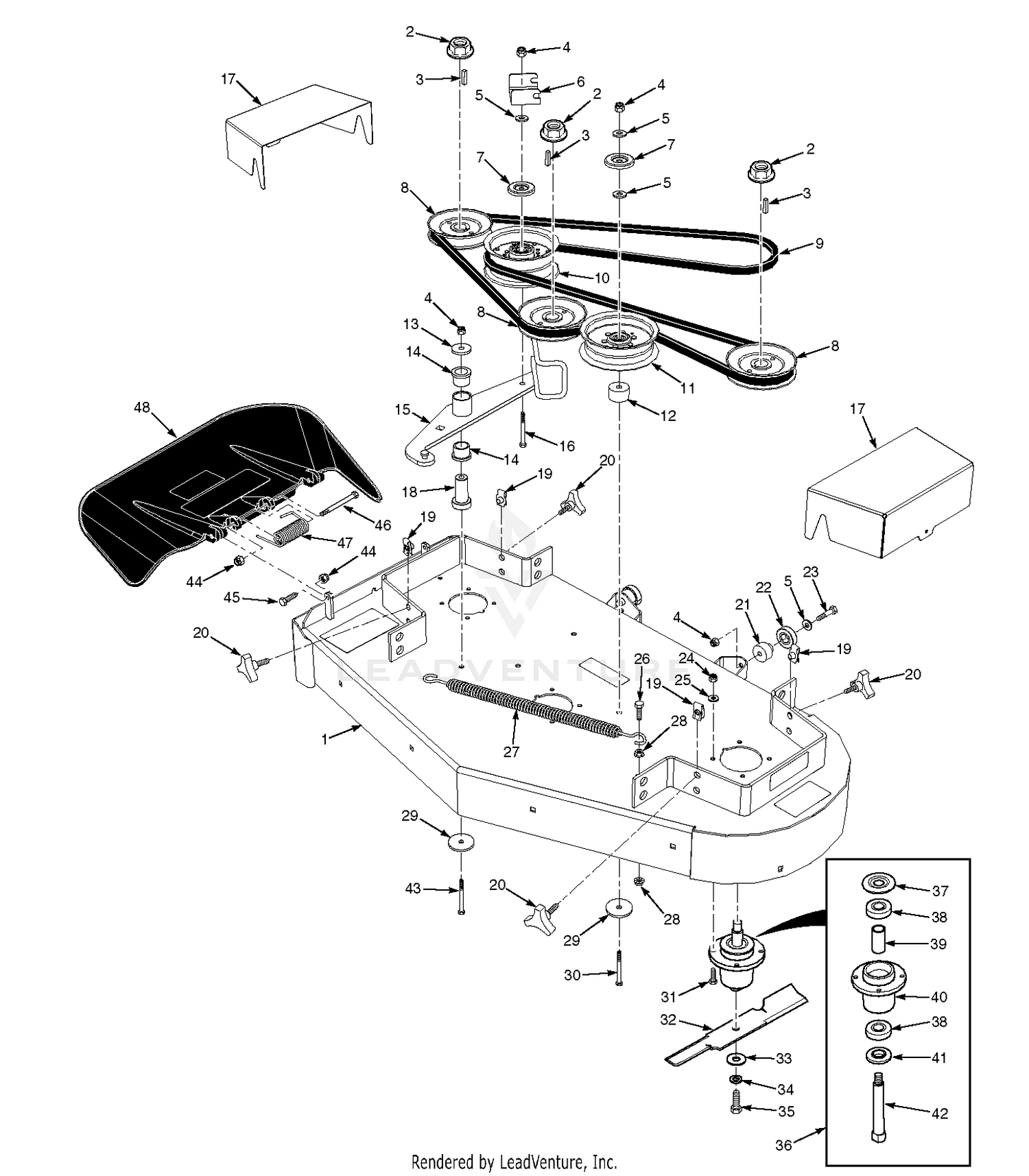

| Ref | Part Number | Description |
|---|
| 1 |
462149 |
Cutter Deck Weldment w/Decals Price: Call Us |
| 2 |
04112-06 |
Nut, 3/4-16 Spiral Lock Price: Call Us |
| 3 |
04063-01 |
Key, 1/4 x 1/4 x 1-1/4" Price: Call Us |
| 4 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 5 |
04043-04 |
Flatwasher, 3/8-.391 x .938 x .105 HD Price: Call Us |
| 6 |
424615 |
Bracket, Belt Guide Price: Call Us |
| 7 |
424367 |
Dust Shield Price: Call Us |
| 8 |
483323 |
Pulley, 5.13" Dia. Price: Call Us |
| 9 |
483012 |
Belt, Cutter Deck Price: Call Us |
| 10 |
483210 |
Pulley, 5" Idler This part replaces 483851. Price: Call Us |
| 11 |
483422 |
Pulley, 5" Idler Price: Call Us |
| 12 |
43711 |
Spacer, Idler Pulley Price: Call Us |
| 13 |
04041-11 |
Flatwasher, 3/8-.406 x 1-1/2" Price: Call Us |
| 14 |
483453-03 |
Bearing Price: Call Us |
| 16 |
04001-62 |
Bolt, Hex Head 3/8-16 x 3-1/4" Price: Call Us |
| 17 |
425117 |
Belt Cover, SFW 48 Price: Call Us |
| 18 |
43708 |
Pivot, Idler Price: Call Us |
| 19 |
04110-03 |
U-Nut, 3/8-16 Price: Call Us |
| 20 |
481625-01 |
Knob, w/Stud Price: Call Us |
| 21 |
43703 |
Spacer, Bearing Price: Call Us |
| 22 |
483379 |
Bearing Price: Call Us |
| 23 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" Price: Call Us |
| 24 |
04021-22 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 25 |
04030-03 |
Lockwasher, 5/16" Spring Price: Call Us |
| 26 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Gr.8 Price: Call Us |
| 27 |
483375 |
Spring, Deck Idler Price: Call Us |
| 28 |
04019-04 |
Nut, Serrated Flange 3/8-16 Price: Call Us |
| 29 |
04041-38 |
Flatwasher, 3/8-.406 x 2-1/4 x .187 Price: Call Us |
| 30 |
04001-77 |
Bolt, Hex Head 3/8-16 x 3-1/2" Price: Call Us |
| 31 |
04001-175 |
Bolt, Hex Head 5/16-18 x 1-1/2" Gr.8 Price: Call Us |
| 32 |
481706 |
Cutter Blade, 16-1/2" Price: Call Us |
| 33 |
04043-06 |
Flatwasher, 5/8-.688 x 1-3/4 x .134 HD Price: Call Us |
| 34 |
04030-07 |
Lockwasher, 5/8" Spring Price: Call Us |
| 35 |
04001-121 |
Bolt, Hex Head 5/8-11 x 1-1/2" Price: Call Us |
| 36 |
461950 |
Spindle Assembly Price: Call Us |
| 37 |
483304 |
Debris Shield Price: Call Us |
| 38 |
483303 |
Bearing Price: Call Us |
| 39 |
43693 |
Spacer, Bearing Price: Call Us |
| 41 |
43694 |
Protector, Bearing Price: Call Us |
| 42 |
43695 |
Shaft, Spindle Price: Call Us |
| 43 |
04001-51 |
Bolt, Hex Head 3/8-16 x 3-3/4" Price: Call Us |
| 44 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 45 |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-3/4" Price: Call Us |
| 46 |
04001-154 |
Bolt, Hex Head 5/16-18 x 4-3/4" Price: Call Us |
| 47 |
482245 |
Spring, Discharge Chute Price: Call Us |
