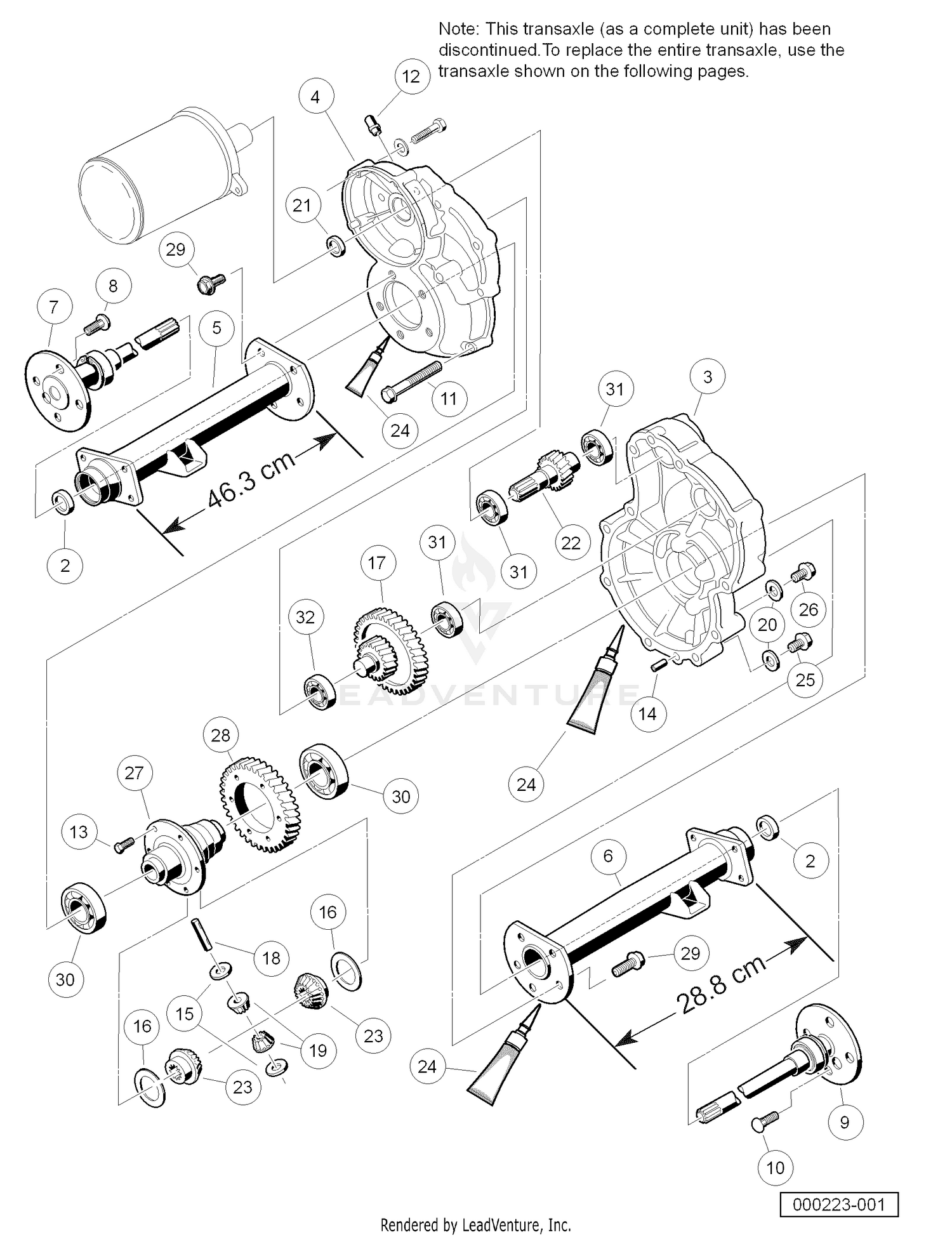

| Ref | Part Number | Description |
|---|
| 1 |
47_086_17 |
Screw-Hex. Hd. Price: Call Us |
| 2 |
47_445_02 |
Strap-Lifting Price: Call Us |
| 2 |
603003062 |
AXLE SHAFT OIL SEAL Price: $9.99 |
| 3 |
4701506 |
Head-Cylinder Price: Call Us |
| 3 |
603003676 |
GEAR CASE LEFT HAND Price: $549.99 |
| 4 |
4704115 |
Gasket-Head Price: Call Us |
| 4 |
603003677 |
GEAR CASE, RIGHT HAND Price: $749.99 |
| 5 |
47_139_01 |
Plug, Cup Price: Call Us |
| 5 |
603003678 |
AXLE TUBE ASSY, RIGHT HAND Price: $799.99 |
| 6 |
4778271 |
Miniblock Price: Call Us |
| 6 |
603003679 |
AXLE TUBE ASSY, LEFT HAND Price: $749.99 |
| 7 |
236559 |
Shaft Price: Call Us |
| 8 |
47_422_05 |
Gasket-Shim Price: Call Us |
| 8 |
603003700 |
LUG STUD Price: $11.99 |
| 9 |
47_041_09 |
Gasket-Bearing Plate Price: Call Us |
| 10 |
45_067_24 |
Connecting Rod (Std.) Price: Call Us |
| 10 |
603003700 |
LUG STUD Price: $11.99 |
| 11 |
47_018_01 |
Retainer Price: Call Us |
| 11 |
603003683 |
SCREW, M8-1.25 X 60MM HEX HEAD Price: $4.99 |
| 12 |
4787416 |
Piston w/Ring Set (Std.) Price: Call Us |
| 12 |
603003684 |
BREATHER Price: $29.99 |
| 13 |
603003685 |
SCREW M10-1.25 X 25MM Price: $5.99 |
| 14 |
4714222 |
Kit-Crankshaft Price: Call Us |
| 14 |
603003686 |
PIN, 11MM OD X 8.5MM ID X 10MM Price: $5.99 |
| 15 |
235376 |
Ball Bearing Price: Call Us |
| 15 |
603003687 |
WASHER, THRUST Price: $2.99 |
| 16 |
47_030_01 |
Bearing-Needle Price: Call Us |
| 16 |
603003688 |
WASHER THRUST Price: $3.99 |
| 17 |
45_043_03 |
Gear Assembly Price: Call Us |
| 17 |
603003689 |
INTERMEDIATE SHAFT ASSEMBLY Price: $749.99 |
| 18 |
603003698 |
PIN, 15.99MM X 88.7MM DOWEL Price: $54.99 |
| 18 |
X-269-34 |
Retainer Price: Call Us |
| 19 |
47_755_01 |
Kit-Spacer Price: Call Us |
| 19 |
603003702 |
GEAR, DIFFERENTIAL IDLER Price: $69.99 |
| 20 |
47_032_06 |
Seal-Front Oil Price: Call Us |
| 20 |
603003703 |
GASKET Price: $2.99 |
| 21 |
603003704 |
SEAL LIP Price: $17.99 |
| 21 |
X-159-2 |
Screw Price: Call Us |
| 22 |
47_146_11 |
Plate-Bearing Price: Call Us |
| 22 |
603003705 |
SHAFT, INPUT Price: $349.99 |
| 23 |
235025 |
Gasket Price: Call Us |
| 23 |
603003706 |
GEAR, DIFFERENTIAL Price: $159.99 |
| 24 |
235026 |
Cover Price: Call Us |
| 25 |
603003718 |
PLUG M14-1.5X12MM MAGNETIC Price: $29.99 |
| 25 |
X-231-6 |
Screw-Hex. Cap Price: Call Us |
| 26 |
235125-S |
Shaft-Govemor Price: Call Us |
| 26 |
603003719 |
PLUG M14-1.5X12MM HEX Price: $8.99 |
| 27 |
X-230-11 |
Plug Price: Call Us |
| 28 |
47_032_07 |
Seal-Rear Oil Price: Call Us |
| 29 |
235122 |
Gasket Price: Call Us |
| 29 |
603003759 |
SCREW FLG HD M10X1.5X30 Price: $2.99 |
| 30 |
41_072_19 |
Stud Price: Call Us |
| 30 |
603000075 |
INNER AXLE, TUBE BEARING Price: $44.99 |
| 31 |
238466 |
Bearing-Shaft, Governor Price: Call Us |
| 31 |
603000076 |
BEARING Price: $17.99 |
| 32 |
230170 |
Insert Price: Call Us |
| 33 |
235007-S |
Guide Valve Price: Call Us |
| 34 |
270889 |
Washer Price: Call Us |
| 35 |
270158 |
Screw Price: Call Us |
| 45_067_25 |
Connecting |
Rod (.010) Price: Call Us 45_067_25 |
| 4710802 |
Ring |
Set-(.010) Price: Call Us 4710802 |
