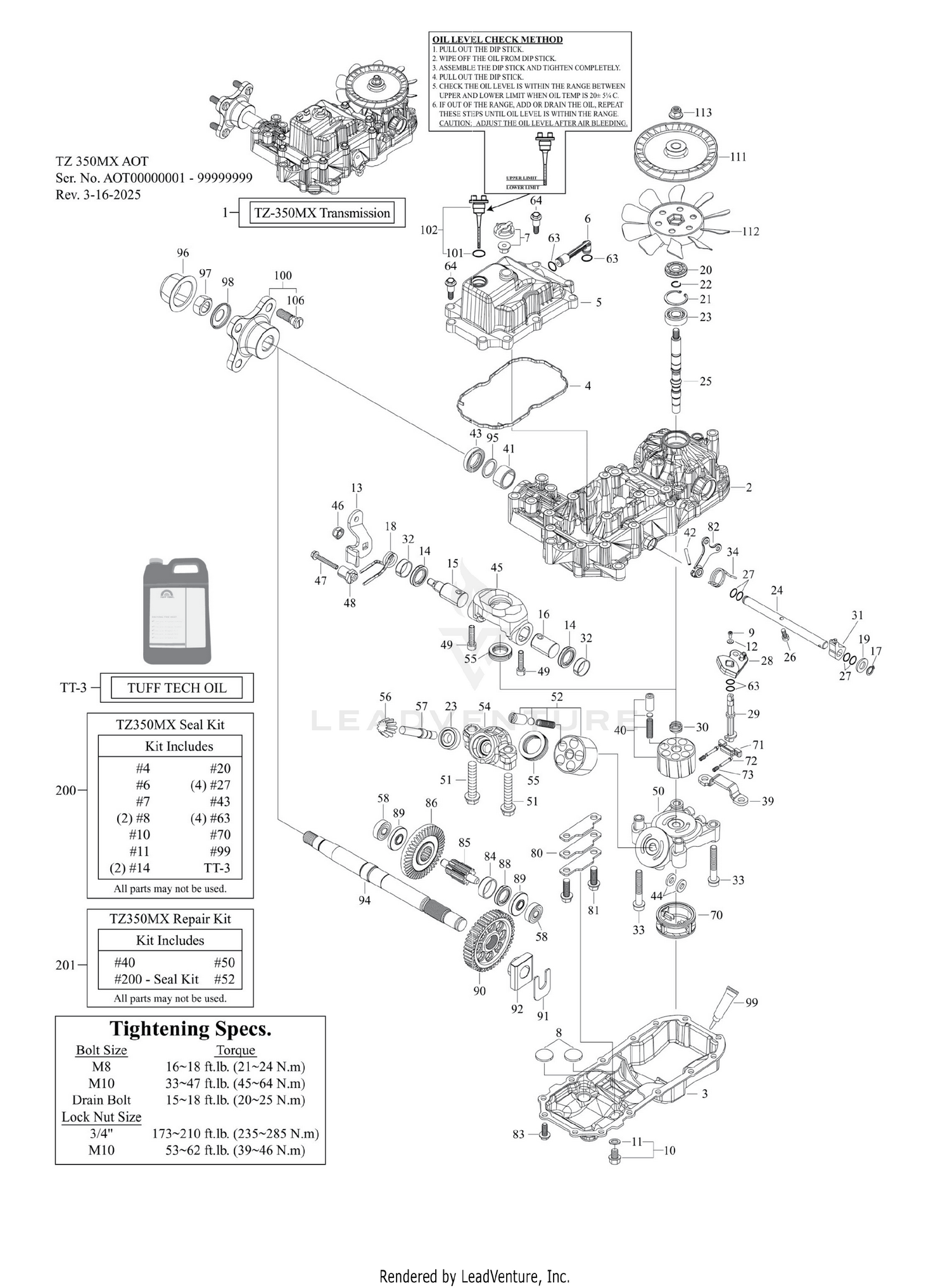

Transmission (LH)
Parts (85)
| Ref | Part Number | Description |
|---|---|---|
| 1 | TT-787Q1624220 | TZ350M-X (TRANSAXLE PREFILLED WITH OIL) Price: Call Us |
| 2 | TT-187Q1624150 | UPPER HOUSING X Price: $218.73 |
| 3 | TT-187Q2124200 | LOWER HOUSING Price: $69.53 |
| 4 | TT-187Q1624450 | SQUARE SEAL Price: $5.36 |
| 5 | TT-187Q2124550 | TOP COVER A Price: $60.21 |
| 6 | TT-187Q1624440 | BYPASS PIPING Price: $2.28 |
| 7 | TT-168T2024250 | VALVE ASSEMBLY-VENT Price: $25.34 |
| 8 | TT-19216324360 | MAGNET Price: $2.70 |
| 9 | TT-22857400080 | SCREW 4.0X8 Price: $2.28 |
| 10 | TT-1A632099320 | DRAIN BOLT KIT Price: $3.60 |
| 11 | TT-22190100000 | WASHER-SEAL DRAIN BOLT Price: $2.45 |
| 12 | TT-187Q1629410 | WASHER 4.5X10X1 Price: $2.28 |
| 13 | TT-187Q1629760 | CONTROL LEVER X This part replaces TT-187Q1629610. Price: $12.83 |
| 14 | TT-187Q1629100 | SEAL Price: $8.02 |
| 15 | TT-187Q1629800 | CONTROL SHAFT Price: $14.76 |
| 16 | TT-187Q1629810 | CONTROL SHAFT SHORT Price: $11.90 |
| 17 | TT-19215489090 | SNAP RING Price: $2.29 |
| 18 | TT-187Q1629920 | TORSION SPRING This part replaces TT-187Q1629910. Price: $6.57 |
| 19 | TT-22137120000 | FLAT WASHER 12 Price: $1.96 |
| 20 | TT-187T0134390 | SEAL-OIL 15X35X07 Price: $2.28 |
| 21 | TT-22252000350 | SNAP RING Price: $2.29 |
| 22 | TT-17808002080 | RING 1.2 Price: $2.28 |
| 23 | TT-1A646034790 | BALL BEARING Price: $8.26 |
| 24 | TT-187Q1636200 | BRAKE SHAFT Price: $11.73 |
| 25 | TT-187Q1625100 | PUMP SHAFT Price: $33.28 |
| 26 | TT-26450060162 | SOCKET BOLT 6X16 Price: $2.28 |
| 27 | TT-24311000120 | O-RING Price: $2.29 |
| 28 | TT-187Q1629520 | BYPASS LEVER Price: $3.61 |
| 29 | TT-187Q1629310 | BYPASS SHAFT Price: $3.38 |
| 30 | TT-19215425200 | SPRING-CYL BLOCK Price: $1.66 |
| 31 | TT-187Q1636370 | BRAKE FORK 20 CR Price: $13.39 |
| 32 | TT-187Q1629450 | CONTROL BUSH LFB2510 Price: $2.76 |
| 33 | TT-1A632010650 | HEX BOLT M10X65 Price: $2.18 |
| 34 | TT-187Q1636680 | SPRING, BRAKE XA Price: $2.34 |
| 39 | TT-187Q2124740 | CHECK STOPPER PFG Price: $26.44 |
| 40 | N/A | CYLINDER BLOCK KIT / Order Repair Kit |
| 41 | TT-19215434240 | BUSHING AXLE Price: $6.20 |
| 42 | TT-22351050032 | SPRING PIN 5 x 3 Price: $2.29 |
| 44 | TT-187T0024360 | MAGNET Price: $2.28 |
| 45 | TT-187Q1684530 | SWASHPLATE Price: $46.58 |
| 46 | TT-187Q0610070 | LOCK NUT 10 Price: $2.28 |
| 47 | TT-26106060452 | BOLT 6X45 Price: $2.28 |
| 48 | TT-187Q2129950 | FULCRUM Price: $4.44 |
| 49 | TT-26450080352 | BOLT 8X35 Price: $2.28 |
| 50 | N/A | CENTER CASE / Order Repair Kit |
| 51 | TT-26106120652 | BOLT 12X16 Price: $3.48 |
| 52 | TT-168T2025080 | BLOCK KIT-PISTON & Price: $149.14 |
| 54 | TT-187Q1624500 | MOTOR HOUSING Price: $22.03 |
| 55 | TT-187T0034750 | THRUST BEARING Price: $21.86 |
| 56 | TT-187Q1625400 | MOTOR GEAR Price: $4.47 |
| 57 | TT-187Q1625300 | MOTOR SHAFT Price: $28.87 |
| 58 | TT-187Q1633520 | BEARING 6201 CN Price: $8.23 |
| 63 | TT-24311240100 | O-RING Price: $2.29 |
| 64 | TT-26476080302 | TAP SCREWPING 8X Price: $2.92 |
| 70 | TT-187Q1625221 | FILTER 105 Price: $13.79 |
| 71 | TT-187Q1629350 | BYPASS GUIDE Price: $2.28 |
| 72 | TT-187Q1629370 | BYPASS PIN Price: $2.76 |
| 73 | TT-187Q1629390 | BYPASS SPRING Price: $2.28 |
| 80 | TT-187Q1624300 | FINAL PLATE Price: $2.28 |
| 81 | TT-26106100302 | BOLT 10X30 Price: $2.51 |
| 82 | TT-187Q1636180 | BRAKE ARM Price: $11.94 |
| 83 | TT-26476080202 | TAP SCREWPING Price: $2.71 |
| 84 | TT-187Q1633380 | FINAL PINION COLLAR Price: $2.28 |
| 85 | TT-187Q2133400 | FINAL PINION SHAFT Price: $21.54 |
| 86 | TT-187Q1633150 | REDUCTION GEAR Price: $65.73 |
| 88 | TT-187Q2133420 | REDUCTION COLLAR Price: $2.39 |
| 89 | TT-187Q2133410 | WASHER 14.1X30X3.5 Price: $7.04 |
| 90 | TT-187Q1633710 | FINAL GEAR Price: $50.73 |
| 91 | TT-187Q1634060 | CLIP Price: $3.16 |
| 92 | TT-187Q1634080 | AXLE BUSHING Price: $11.66 |
| 94 | TT-187Q1634280 | AXLE SHAFT Price: $81.76 |
| 95 | TT-187Q0834370 | WASHER Price: $2.28 |
| 96 | TT-187Q0634410 | NUT CAP Price: $3.38 |
| 97 | TT-187Q0634120 | LOCK NUT 3/4-16 Price: $4.02 |
| 98 | TT-187Q2134300 | FLANGE SPACER Price: $2.28 |
| 99 | TT-1A646099500 | SEALANT Price: $23.68 |
| 100 | TT-187Q2134820 | FLANGE ASSY. Price: $50.35 |
| 101 | TT-24311000160 | PACKING Price: $2.28 |
| 102 | TT-187P0113190 | DIPSTICK KIT Price: $10.59 |
| 111 | TT-1A646025790 | PULLEY J Price: $28.77 |
| 112 | TT-1A646083050 | FAN Price: $8.76 |
| 113 | TT-19216829860 | NUT-LOCK PMP SHAFT Price: $1.08 |
| 200 | TT-187Q1699060 | SEAL KIT (INCLUDES OIL) Price: $135.48 |
| 201 | TT-187Q1699140 | REPAIR KIT TZ-350 W/OIL Price: $335.27 |
| 202 | TT-187Q1699300 | OIL CHANGE KIT (TZ-350) Price: $109.18 |
