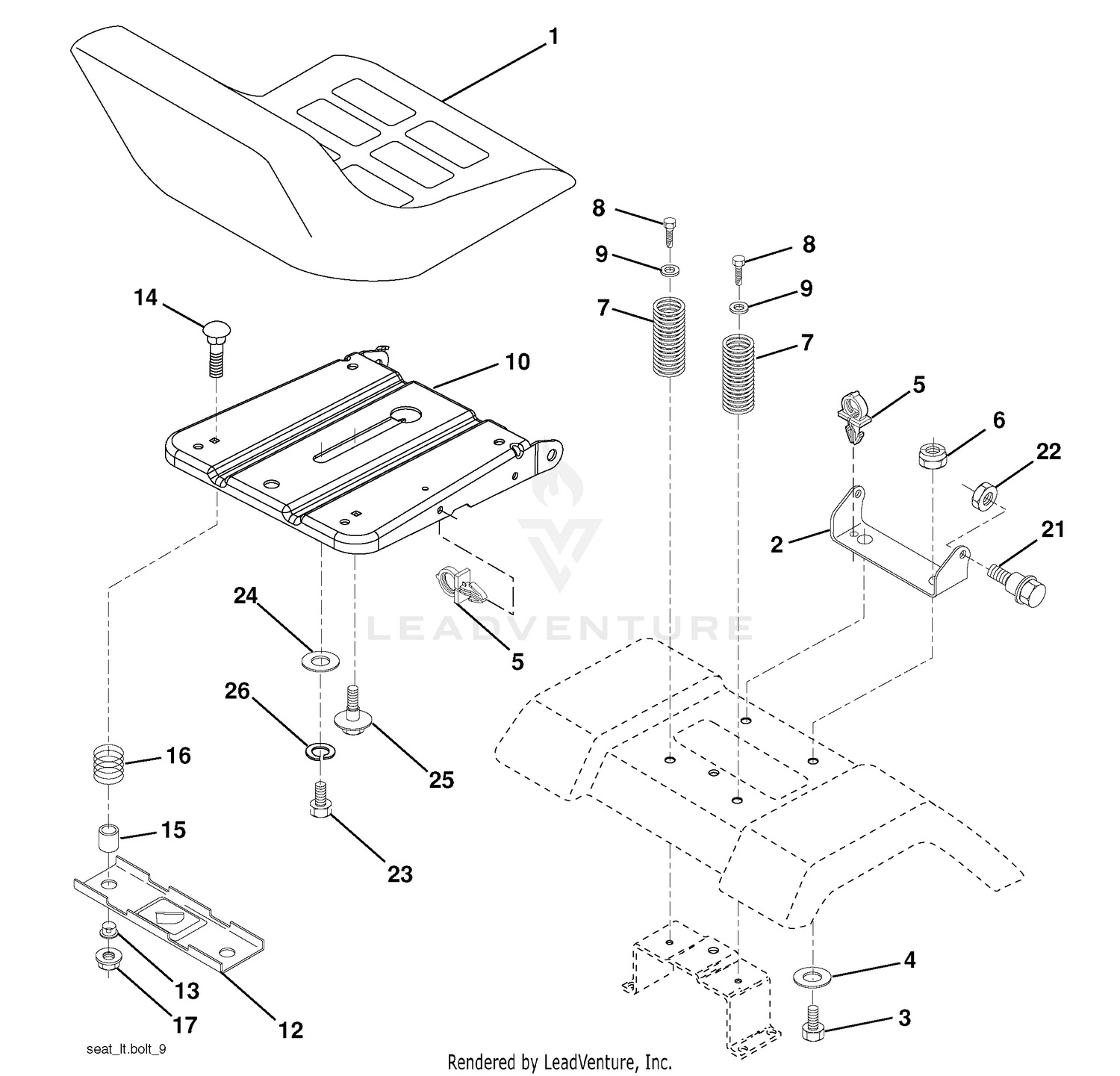

| Ref | Part Number | Description |
|---|
| 1 |
401042 |
Seat Price: Call Us |
| 1 |
84-0940 |
FORK-BRAKE, RH Price: $74.96 |
| 2 |
140551 |
Bracket Seat Pivot Price: Call Us |
| 2 |
86-5840 |
PLATE-SPRING Price: $7.17 |
| 3 |
3220-3 |
NUT-HJ Price: $0.28 |
| 3 |
71110616 |
Bolt Hex 3/8 - 16 x 1 Price: Call Us |
| 4 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 4 |
19131610 |
Washer 13/32 x 1 x10 Ga. Price: Call Us |
| 5 |
145006 |
Clip Push-In Hinged Price: Call Us |
| 5 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 6 |
323-7 |
SCREW-HH Price: $0.65 |
| 6 |
73800600 |
Nut Lock Hex w/Ins 3/8 - 16 Price: Call Us |
| 7 |
124181X |
Spring Seat Cprsn 2 250 Blk Zi Price: Call Us |
| 7 |
76-9690-03 |
ROD-BRAKE Price: $52.07 |
| 8 |
17000616 |
Screw 3/8-16 x 1.5 Price: Call Us |
| 8 |
84-0990 |
PIN-PIVOT Price: $19.31 |
| 9 |
19131614 |
Washer 13/32 x 1 x 14 Ga. Price: Call Us |
| 9 |
86-5830 |
SPRING-COMPRESSION Price: $19.73 |
| 10 |
195530 |
Pan Asm. Seat Price: Call Us |
| 10 |
66-6480 |
WASHER Price: $1.29 |
| 11 |
84-0970 |
FORK-BRAKE, LH Price: $74.96 |
| 12 |
174648 |
Bracket Pnt Mounting Switch Price: Call Us |
| 12 |
32120-19 |
E-RING Price: $2.27 |
| 13 |
121248X |
Bushing Snap Blk Nyl Price: Call Us |
| 13 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 14 |
72050412 |
Bolt Rdhd Sht Nk 1/4 - 20 x 1 -1/2 Price: Call Us |
| 14 |
76-8270 |
PIN-BRAKE Price: $11.07 |
| 15 |
134300 |
Spacer Split .28 x .96 Price: Call Us |
| 15 |
76-4180 |
BOOT-ROD, BRAKE Price: $25.33 |
| 16 |
121250X |
Spring Cprsn Price: Call Us |
| 16 |
283-2 |
PIN-CLEVIS Price: $12.99 |
| 17 |
123976X |
Nut Lock 1/4 Lge Flg Price: Call Us |
| 17 |
76-6610 |
DISCONTINUED Price: Call Us |
| 18 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 21 |
171852 |
Bolt Shoul der 5/16-18 unc-2A Price: Call Us |
| 22 |
73800500 |
Nut Lock Hex w/Ins 5/16 - 18 Price: Call Us |
| 23 |
71110814 |
Bolt Hex Price: Call Us |
| 24 |
19171912 |
Washer 17/32 x 1-3/16 x 12 Ga. Price: Call Us |
| 25 |
127018X |
Bolt Shoul der 5/16-18 x .62 Price: Call Us |
