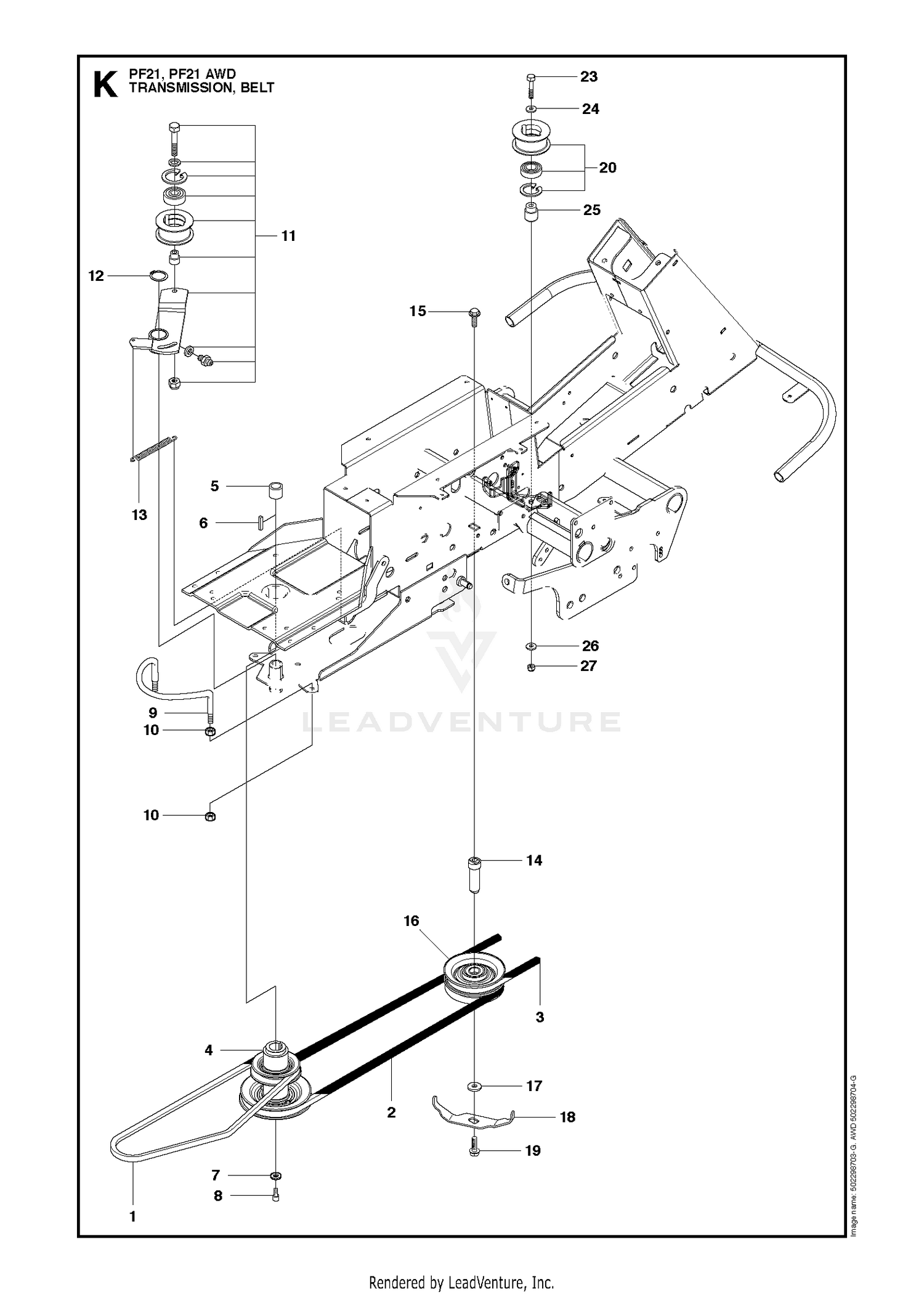

TRANSMISSION
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 133-2935 | HYDRAULIC MOTOR ASM Price: $1,293.20 |
| 1 | 580994701 | BELT This part replaces 506991901. Price: $24.99 |
| 2 | 340-17 | FITTING-ELBOW, 90 DEG Price: $42.29 |
| 2 | 589532901 | NEEDS DESCRIPTION Price: Call Us |
| 3 | 114-0425 | HYDRAULIC TUBE ASM Price: $172.90 |
| 3 | 593806201 | Belts This part replaces 589531101. Price: $49.99 |
| 4 | 108-1679 | HOSE-HYD Price: $120.18 |
| 4 | 535482401 | PULLEY Price: $69.99 |
| 5 | 114-0424 | HYDRAULIC TUBE ASM Price: $174.00 |
| 5 | 506509201 | SPACER Price: $9.99 |
| 6 | 2412-134 | CLAMP-R Price: $5.79 |
| 7 | 506597501 | WASHER Price: $6.99 |
| 7 | 59-7410 | FITTING-DIAGNOSTIC Price: $36.39 |
| 8 | 354-79 | CAP-DUST Price: $7.81 |
| 8 | 506556002 | SCREW Price: $5.99 |
| 9 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 9 | 506664501 | BELT GUIDE Price: $19.99 |
| 10 | 133-2934 | HYDRAULIC MOTOR ASM Price: $1,293.20 |
| 10 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 11 | 3234-4 | SCREW-HHF Price: $0.50 |
| 11 | 535484402 | TENSIONER Price: $59.99 |
| 12 | 735312600 | RETAINING RING SGA 25 Price: $2.99 |
| 13 | 114-0389 | HYDRAULIC TUBE ASM Price: $274.53 |
| 13 | 506665601 | SPRING Price: $24.99 |
| 14 | 119-0011 | PRESSURE TRANSDUCER ASM Price: $341.50 |
| 14 | 544426102 | NEEDS DESCRIPTION Price: Call Us |
| 15 | 115-1794 | SCREW-HHF Price: $1.73 |
| 15 | 506675402 | BOLT Price: $5.99 |
| 16 | 535482201 | PULLEY Price: $64.99 |
| 16 | 56-7971 | CLAMP-TUBE Price: $17.90 |
| 17 | 506775701 | WASHER Price: $4.99 |
| 18 | 544405301 | BELT GUIDE Price: $6.99 |
| 19 | 506597401 | BOLT This part replaces 506570105. Price: $5.99 |
| 20 | 505153901 | BELT TENSIONER WHEEL ASSY Price: $54.99 |
| 23 | 725246151 | BOLT Price: $4.99 |
| 24 | 734116441 | SPACER Price: $3.99 |
| 25 | 544002901 | NEEDS DESCRIPTION Price: Call Us |
| 26 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 27 | 732211801 | LOCKNUT M8 Price: $3.99 |
