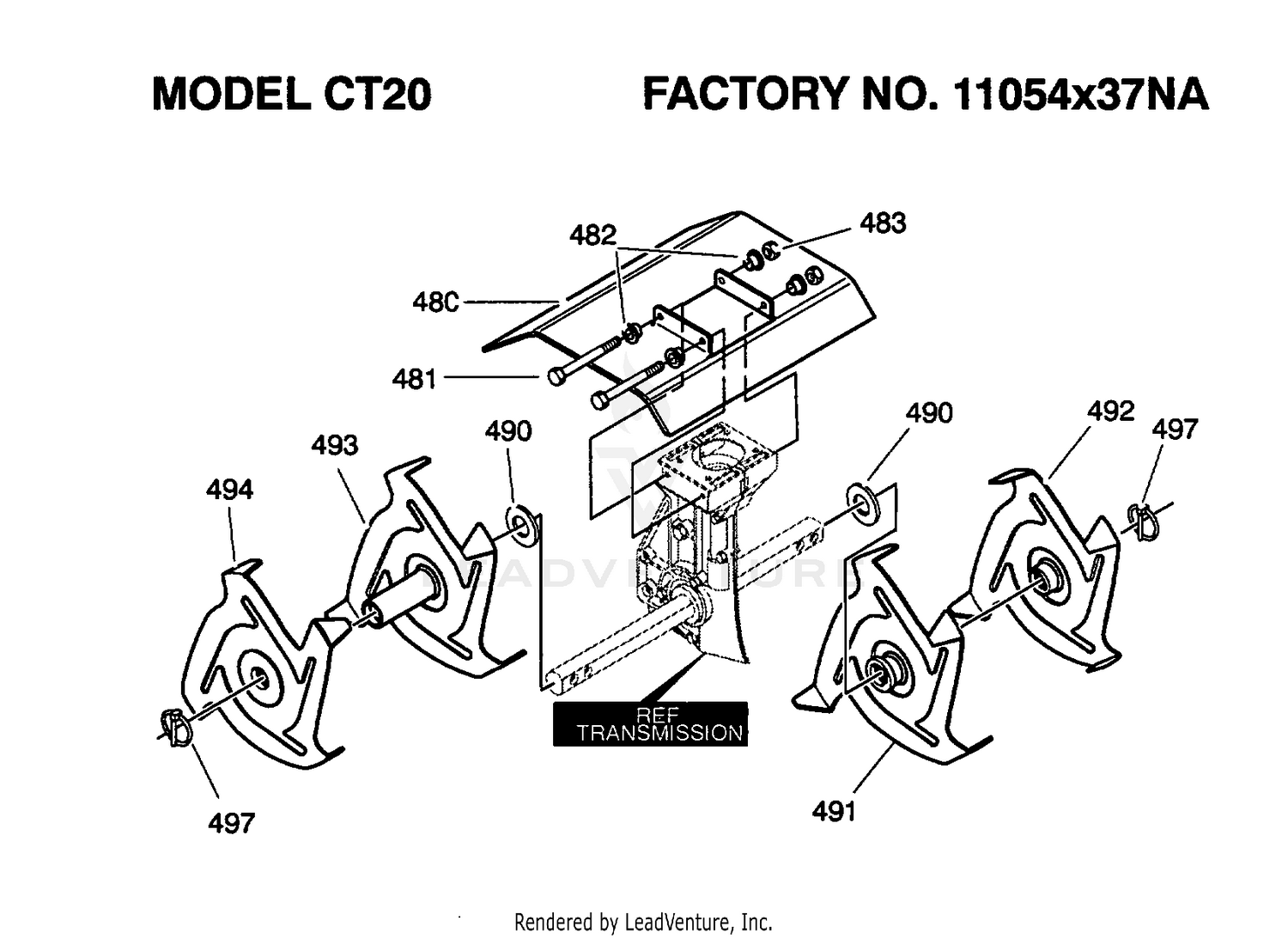

TINE ASSEMBLY
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 481 | 601001287 | SCREW Price: $1.61 |
| 482 | 601000018 | WASHER, FLAT .281X .63X. Price: $1.99 |
| 483 | 601002318 | RP NUT Price: $9.99 |
| 490 | 601000602 | FELT WASHER Price: $4.99 |
| 491 | 531307452 | TINE ASSY INNER LH Price: $84.99 |
| 492 | 531307453 | TINE ASSY OUTER LH 1901082MA Price: $84.99 |
| 493 | 531307454 | TINE ASSY INNER RH Price: $75.99 |
| 494 | 531307455 | TINE ASSY OUTER RH Price: $75.99 |
| 497 | 531307456 | PIN, LATCH Price: $10.99 |
