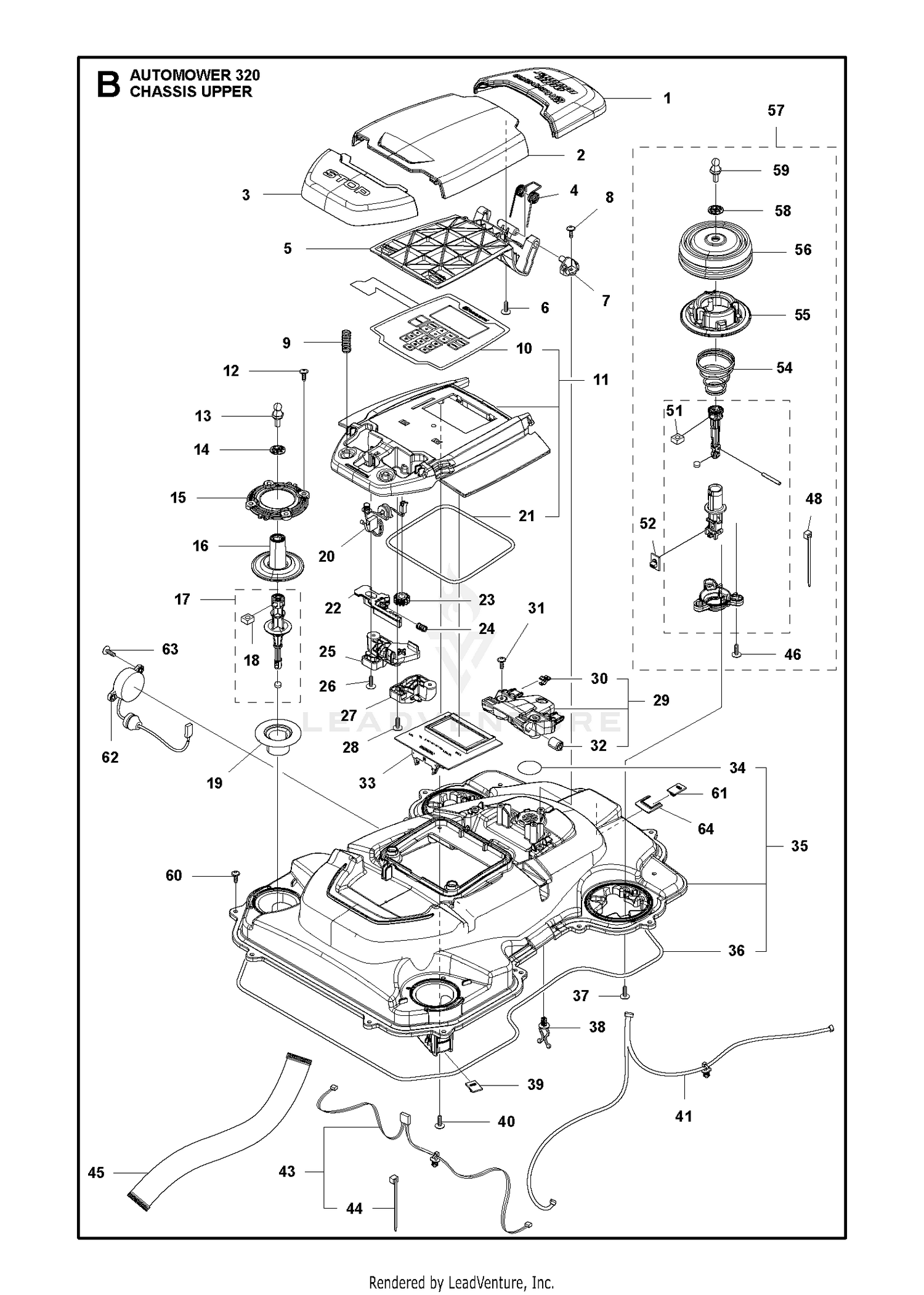

CHASSIS UPPER
Parts (78)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 579458301 | Price: Call Us |
| 2 | 579458501 | HATCH ROBOTIC GREY Price: $19.99 |
| 3 | 579458101 | BUTTON STOP Price: $12.99 |
| 5 | 579458601 | Price: Call Us |
| 6 | 575543314 | SCREW 14MM Price: $3.99 |
| 7 | 579458701 | Price: Call Us |
| 8 | 575543314 | SCREW 14MM Price: $3.99 |
| 9 | 535130101 | SPRING Price: $3.99 |
| 10 | 579627901 | Price: Call Us |
| 10 | 98-9705 | STARTER ASM Price: $663.57 |
| 12 | 574450101 | SCREW ITXPANT Price: $3.99 |
| 13 | 580526701 | STUD SNAPLOC Price: $2.99 |
| 14 | 579525701 | WASHER JOYSTICK Price: $2.99 |
| 15 | 579525901 | Price: Call Us |
| 16 | 577525801 | RUBBER GAITERS Price: $17.99 |
| 17 | 501122602 | JOYSTICK KIT REAR Price: $14.99 |
| 18 | 503226601 | NUT Price: $3.99 |
| 19 | 535143201 | MOVEMENT LIMITER Price: $9.99 |
| 20 | 104-8608 | YOKE ASM Price: $437.88 |
| 20 | 574480301 | SWITCH STOP BUTTON Price: $27.99 |
| 22 | 579458801 | Price: Call Us |
| 23 | 579458401 | Price: Call Us |
| 24 | 576242201 | SPRING LOCK STOP BUTTON Price: $2.99 |
| 25 | 579505001 | Price: Call Us |
| 26 | 575543314 | SCREW 14MM Price: $3.99 |
| 27 | 579505002 | Price: Call Us |
| 28 | 575543314 | SCREW 14MM Price: $3.99 |
| 29 | 581620701 | SUPPORT KIT FRONT Price: $22.99 |
| 30 | 580354501 | Price: Call Us |
| 30 | 98-7742 | ARMATURE ASM Price: $819.15 |
| 31 | 575543314 | SCREW 14MM Price: $3.99 |
| 33 | 578127101 | Price: Call Us |
| 35 | 581620802 | CHASSIS KIT UPPER This part replaces 581620801. Price: $54.99 |
| 37 | 574450101 | SCREW ITXPANT Price: $3.99 |
| 38 | 580682901 | HOLDER TWIST LOCK Price: $3.99 |
| 39 | 592852401 | PRINTED CIRCUIT ASSY COLLISION This part replaces 579669101. Price: $22.99 |
| 40 | 575543314 | SCREW 14MM Price: $3.99 |
| 40 | 98-7744 | BEARING Price: $35.64 |
| 41 | 581660902 | WIRE ASSEMBLY COLLISION SENSOR This part replaces 581660901. Price: $19.99 |
| 43 | 581621101 | LOOM KIT LIFT SENSOR Price: $17.99 |
| 44 | 900238708 | BAND Price: $2.99 |
| 45 | 579706201 | LOOM MMI Price: $32.99 |
| 46 | 575543314 | SCREW 14MM Price: $3.99 |
| 48 | 900238708 | BAND Price: $2.99 |
| 50 | 98-7743 | BEARING Price: $37.48 |
| 51 | 503226601 | NUT Price: $3.99 |
| 52 | 592852301 | PRINTED CIRCUIT ASSY PCBA LIFT This part replaces 579669001. Price: $19.99 |
| 53 | 587448802 | JOYSTICK KIT Price: $19.99 |
| 54 | 580672501 | SPRING COLLISION JOYSTICK Price: $6.99 |
| 56 | 579474601 | BELLOWS LIFT-COLLISION Price: $9.99 |
| 57 | 581620903 | JOYSTICK KIT Price: $59.99 |
| 58 | 579525701 | WASHER JOYSTICK Price: $2.99 |
| 59 | 580526701 | STUD SNAPLOC Price: $2.99 |
| 60 | 574450101 | SCREW ITXPANT Price: $3.99 |
| 60 | 99-8373 | CLUTCH-RUNNING, OVER Price: $691.80 |
| 61 | 592852401 | PRINTED CIRCUIT ASSY COLLISION This part replaces 579669101. Price: $22.99 |
| 62 | 579706302 | BUZZER ASSY Price: $22.99 |
| 63 | 575543314 | SCREW 14MM Price: $3.99 |
| 64 | 587834901 | CLIP COLLISION BOARD Price: $2.99 |
| 70 | 99-8374 | FRAME-END, DRIVE Price: $73.04 |
| 80 | 105-3746 | MAGNETIC SWITCH ASM Price: $689.29 |
| 90 | 98-7748 | FRAME-END Price: $82.65 |
| 100 | 98-7749 | BRUSH HOLDER ASM Price: $91.05 |
| 110 | 98-7750 | SPRING-BRUSH Price: $2.38 |
| 120 | 98-7751 | GEAR Price: $43.51 |
| 130 | 98-7752 | RETAINER Price: $4.35 |
| 140 | 98-7753 | ROLLER Price: $1.00 |
| 150 | 98-7754 | SPRING Price: $4.70 |
| 160 | 98-7755 | BALL Price: $0.42 |
| 170 | 98-7756 | BOLT Price: $2.64 |
| 180 | 98-7757 | O-RING Price: $24.98 |
| 190 | 100-9240 | BOLT Price: $7.23 |
| 200 | 98-7758 | BOLT ASM Price: $4.90 |
| 210 | 99-8375 | COVER Price: $24.86 |
| 220 | 99-8371 | NUT-HEX Price: $3.75 |
| 230 | 98-9711 | CORD-SOLENOID, STOP Price: $12.05 |
| 240 | 99-8376 | NUT-HEX Price: $7.28 |
| 250 | 98-7759 | PIPE-DRAIN Price: $28.84 |
