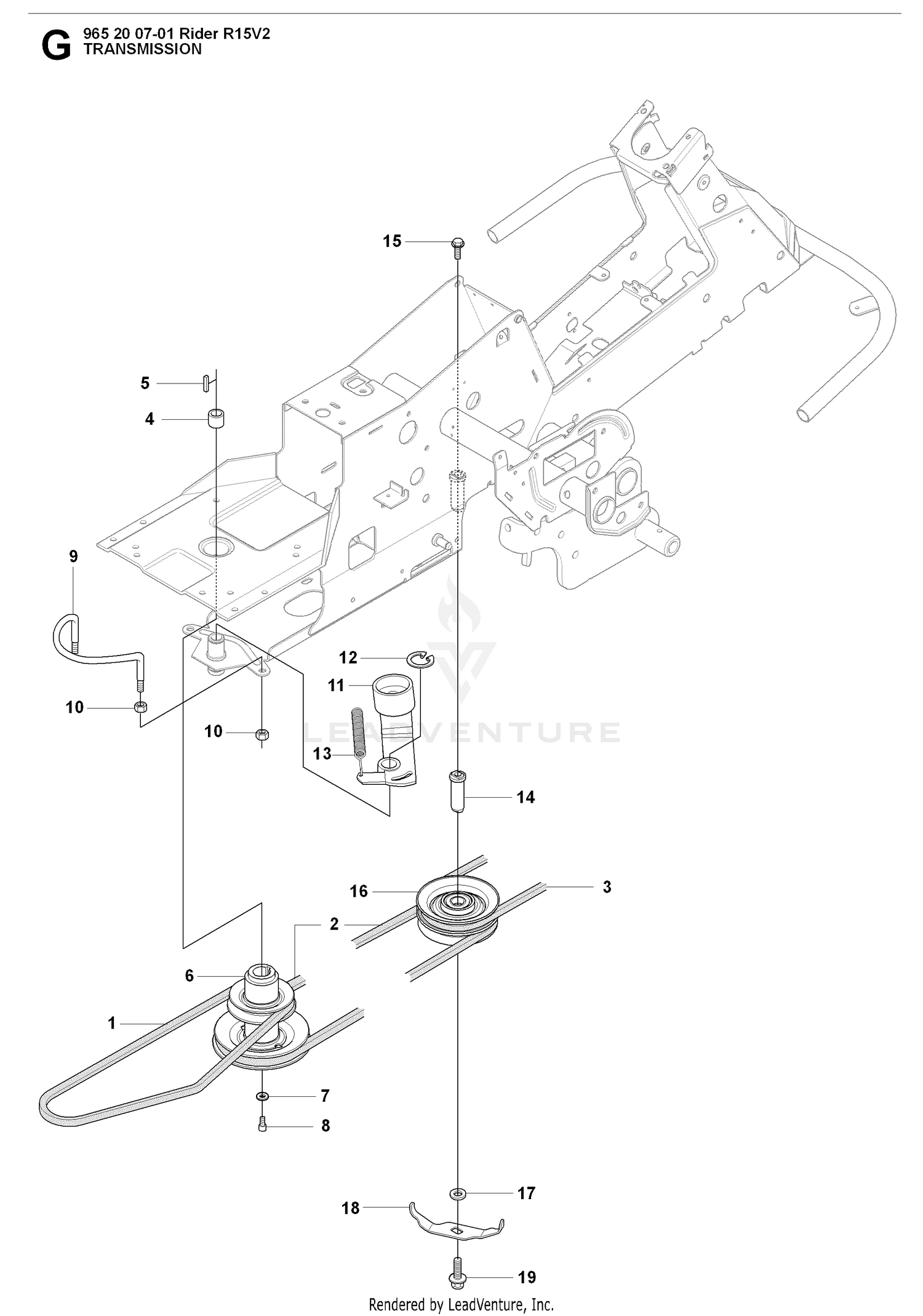

TRANSMISSION 2
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 125-2928 | DECAL Price: $52.86 |
| 1 | 589531201 | BELT Price: $27.99 |
| 2 | 108-7587 | SADDLE-HOOD Price: $151.95 |
| 2 | 599675902 | BELT KIT This part replaces 589530401. Price: $44.99 |
| 3 | 121-5616 | HOOD ASM Price: $2,580.84 |
| 3 | 594978001 | BELT Price: $59.99 |
| 4 | 103-2897 | LATCH-CATCH Price: $7.99 |
| 4 | 506509201 | SPACER Price: $9.99 |
| 5 | 103-2898 | LATCH-RUBBER Price: $32.99 |
| 5 | 506555901 | KEY Price: $3.99 |
| 6 | 125-8813-03 | TUBE-FRAME, HOOD Price: $135.28 |
| 6 | 535482401 | PULLEY Price: $69.99 |
| 7 | 105-7512 | PIN-TIE, BOW Price: $4.27 |
| 7 | 506597501 | WASHER Price: $6.99 |
| 8 | 506556002 | SCREW Price: $5.99 |
| 8 | 66-6140 | DECAL Price: $25.48 |
| 9 | 108-1790-03 | TUBE Price: $95.49 |
| 9 | 506664501 | BELT GUIDE Price: $19.99 |
| 10 | 32104-17 | SCREW-HWH Price: $0.99 |
| 10 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 11 | 3234-21 | SCREW-HHF Price: $2.19 |
| 11 | 535484401 | TENSIONER Price: $54.99 |
| 12 | 104-7201 | NUT-HF Price: $0.69 |
| 12 | 735312600 | RETAINING RING SGA 25 Price: $2.99 |
| 13 | 32105-13 | SCREW-HWH Price: $1.59 |
| 13 | 506665601 | SPRING Price: $24.99 |
| 14 | 3256-14 | WASHER-FLAT Price: $0.39 |
| 14 | 581916401 | SHAFT This part replaces 544426101. Price: $19.99 |
| 15 | 3296-12 | NUT-LOCK, NI Price: $1.29 |
| 15 | 506675402 | BOLT Price: $5.99 |
| 16 | 283-61 | PIN-YOKE Price: $1.56 |
| 17 | 107-8042 | BUMPER-RUBBER Price: $1.30 |
| 17 | 506775701 | WASHER Price: $4.99 |
| 18 | 544405301 | BELT GUIDE Price: $6.99 |
| 18 | 98-5398 | LATCH Price: $32.53 |
| 19 | 32104-32 | SCREW-HWH Price: $1.99 |
| 19 | 506597401 | BOLT This part replaces 506570105. Price: $5.99 |
| 20 | 104-1453 | GROMMET Price: $6.57 |
| 22 | 99-4958 | SPACER Price: $2.39 |
| 23 | 110-0979-03 | BRACKET-DEFLECTOR Price: $39.92 |
| 24 | 110-8946 | CLAMP-FRAME, RADIATOR Price: $7.87 |
| 25 | 3234-5 | SCREW-HHF Price: $0.42 |
| 26 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 27 | 3234-33 | SCREW-HHF Price: $0.79 |
| 28 | 121-5627-03 | GUIDE-HOOD Price: $85.06 |
| 29 | 110-5253-01 | ADAPTER-HOOD, LH Price: $137.45 |
| 30 | 110-5256-01 | BRACKET-LATCH, HOOD Price: $28.55 |
| 31 | 110-5254-01 | ADAPTER-HOOD, RH Price: $137.47 |
