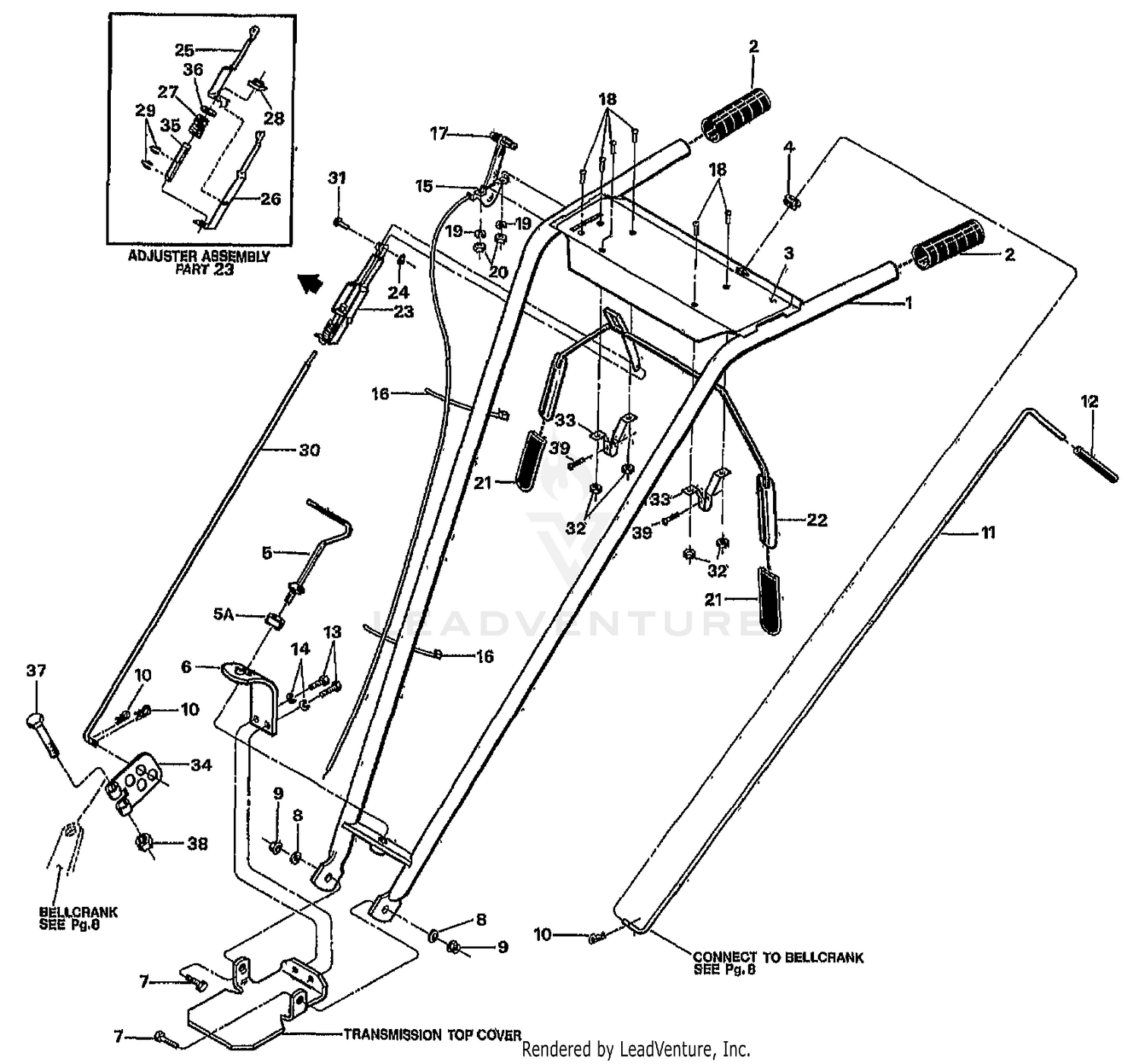

| Ref | Part Number | Description |
|---|
| 1 |
50253 |
ASSM-HANDLEBAR W/GRIPS (INCL. 2-5A) Price: Call Us |
| 2 |
720-0274 |
Handle Grip This part replaces 9126. Price: $9.99 |
| 3 |
50242 |
DECAL-CONTROL PANEL OPC Price: Call Us |
| 4 |
9251 |
BUSHING-NYLON (PART OF OPER. CONTROL PANEL) Price: Call Us |
| 5 |
20703 |
HEX SCREW Not Available Price: |
| 5A |
736-04445 |
Keyed Washer This part replaces 9955. Price: $3.65 |
| 6 |
20753 |
PLATE-HANDLEBAR ADJUST Price: Call Us |
| 7 |
9711 |
SCR-HH 3/8-16X1.0 G5 ZP (HANDLEBAR ATTACH.) Price: Call Us |
| 8 |
736-3050 |
Washer, Plain (flat) 3/8, S.A.E. This part replaces 9904. Price: $3.90 |
| 9 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 9837. Price: $3.90 |
| 10 |
714-04048 |
PIN - hair cotter This part replaces 9338. Price: $7.04 |
| 11 |
20830 |
LEVER, CLUTCH-MANEUVERING Not Available Price: |
| 12 |
9198 |
GRIP-CONTROL ROD Price: Call Us |
| 13 |
9709 |
SCR-HH 3/8-16X.75 (HANDLEBAR ATTACH.) Price: Call Us |
| 14 |
9913 |
WASHER-LK .375 (HANDLEBAR ATTACH.) Price: $1.89 |
| 15 |
9441 |
CABLE-THROTTLE JR OPC Price: Call Us |
| 17 |
731-0108 |
Knob, Throttle Control This part replaces 9212. Price: $8.12 |
| 18 |
9722 |
SCR-RH M10-32X.5 MACH Price: Call Us |
| 19 |
9909 |
WASHER-LK M10 Price: Call Us |
| 20 |
9809 |
NUT-HH M10-32X.125 Price: Call Us |
| 21 |
GW-9390 |
Grip This part replaces 9390. Price: $4.26 |
| 22 |
1918840 |
Bail, Forward Clutch Control This part replaces 20863. Price: $102.41 |
| 23 |
GW-20862 |
ASSM-ADJUSTMENT OPC Not Available This part replaces 20862. Price: |
| 24 |
9386 |
RING-KLIP .188 DIA Price: Call Us |
| 25 |
20808 |
ADJUSTER-RT SIDE Not Available Price: |
| 26 |
GW-20809 |
ADJUSTER-LT SIDE O Not Available This part replaces 20809. Price: |
| 27 |
9059 |
SPRING-ADJUSTER OPC Price: Call Us |
| 28 |
9522 |
WELDNUT 5/16-18 Price: Call Us |
| 29 |
GW-9532 |
Clip Ring This part replaces 9532. Price: $3.22 |
| 30 |
20831 |
CONTROL ROD OPC Not Available Price: |
| 31 |
9388 |
ASSM-PIN & CLIP (SMALL FRAME) Price: Call Us |
| 32 |
GW-9853 |
Sems Nut This part replaces 9853. Price: $6.01 |
| 33 |
GW-20806 |
Bracket, Bail Support This part replaces 20806. Price: $7.83 |
| 34 |
20805 |
SWIVEL Price: Call Us |
| 35 |
9432 |
BUSHING-.5X.334X2.88 Price: Call Us |
| 36 |
9973 |
WASHER-.75X.51X.06 ZP Price: Call Us |
| 37 |
9664 |
SCR-HH 1/4-20X1.5 G5ZP Price: $11.00 |
| 38 |
9811 |
NUT-LK 1/4-20 Price: Call Us |
