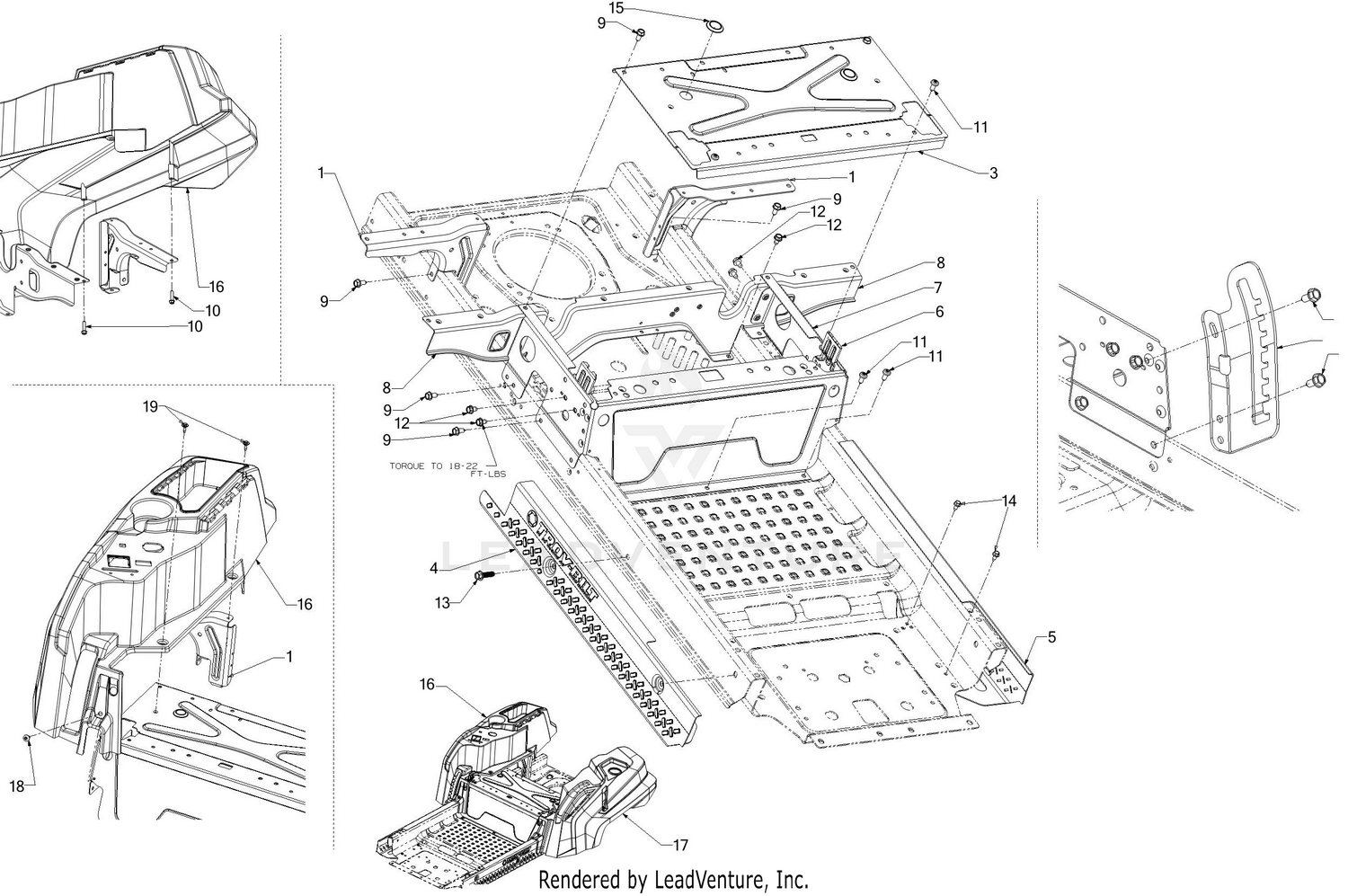

| Ref | Part Number | Description |
|---|
| 1 |
703-08720C-0638 |
REAR TANK BRACKET (MTD RED) This part replaces 703-08720B-0638. Price: $23.37 |
| 2 |
703-08762C |
HEIGHT INDEX BRACKET Price: $14.87 |
| 3 |
703-09045J-0637 |
SEATBOX TOP PLATE (POWDER BLACK) This part replaces 703-09045F-0638. Price: $39.76 |
| 4 |
703-09119B-0638 |
FRAME SUPPORT (RH) Price: $43.30 |
| 5 |
703-09139C-0638 |
FRAME SUPPORT (LH) (MTD RED) This part replaces 703-09139-0638. Price: $37.66 |
| 6 |
703-09211A-0637 |
LAPBAR BRACE BRACKET Price: $6.97 |
| 7 |
703-09320F-0638 |
SEAT FRAME (MTD RED) This part replaces 703-09320A-0638. Price: $67.50 |
| 8 |
703-11179-0638 |
REAR SEATBOX BRACKET (MTD RED) This part replaces 703-09332A-0638. Price: $41.32 |
| 9 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 10 |
710-05109 |
SCREW 5/16-14 x 1 Price: $3.17 |
| 11 |
710-05424 |
SCREW 5/16-18 x .750 Price: $2.94 |
| 12 |
710-0607 |
SCREW 5/16-18 x .500 Price: $6.06 |
| 13 |
710-1315 |
SCREW 3/8-16 X1.250 Price: $3.90 |
| 14 |
710-1652 |
SCREW 1/4-20X.625 Price: $3.86 |
| 15 |
726-3045A |
PLUG Price: $4.09 |
| 16 |
931-09040 |
CONSOLE (RH) Price: $102.47 |
| 17 |
931-10106 |
CONSOLE (LH) Price: $102.47 |
| 18 |
738-04549A |
TORX SHOULDER SCREW 1/4-20 Price: $6.28 |
