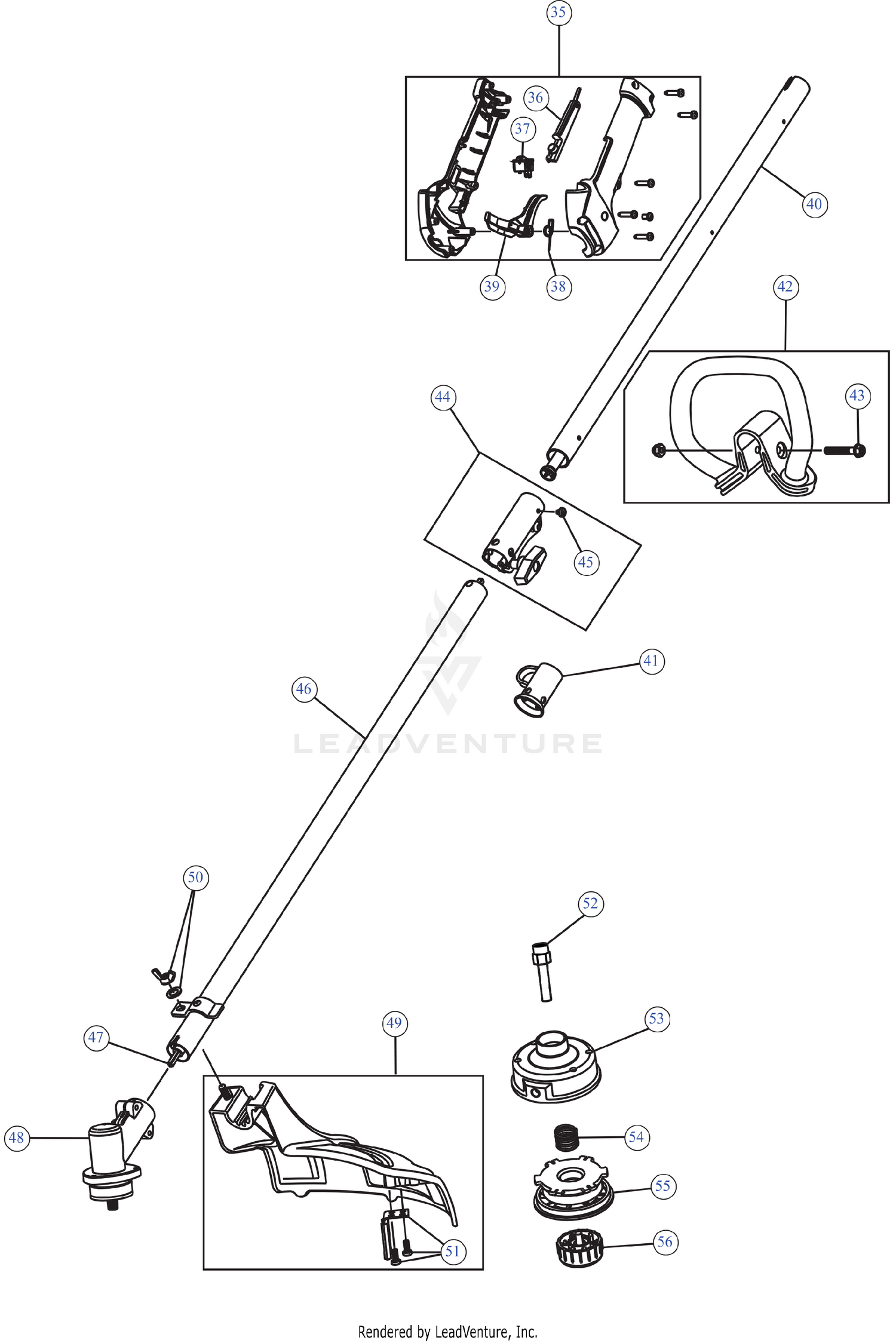

General Assembly
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 36 | 731-08433C-10 | LEVER LOCK OUT Price: $2.72 |
| 37 | 791-182405 | SW, MOMENTARY ON/O Price: $9.29 |
| 38 | 753-05007 | TRIGGER SPRING Price: $4.42 |
| 39 | 731-04970B-10 | THROTTLE TRIGGER Price: $8.16 |
| 40 | 753-06880 | BOOM ASSEMBLY UPR Price: $17.42 |
| 41 | 731-08926 | HANGER Price: $2.32 |
| 43 | 753-06040 | BOLT 1/4-20X1 1/2 Price: $6.01 |
| 45 | 791-182057 | SCREW, 10-32X.250 TA Price: $3.93 |
| 46 | 753-08748 | LOWER BOOM ASSEMBLY Price: $16.04 |
| 47 | 753-05267 | LOWER DRIVE SHAFT Price: $37.46 |
| 48 | 753-08180 | GEARBOX LCBC Price: $40.11 |
| 50 | 753-04282 | BLADE GUARD MOUNTING HARDWARE Price: $23.73 |
| 51 | 753-08355 | BLADE ASSEMBLY W/HDW Price: $3.61 |
| 52 | 711-06397 | SHAFT ADAPTER Price: $8.15 |
| 53 | 753-04284 | OUTER REEL W/RETAINING RING Price: $26.03 |
| 54 | 791-610317B | SPRING-SPOOL Price: $9.47 |
| 55 | 731-10724-10 | INNER REEL Price: $4.25 |
