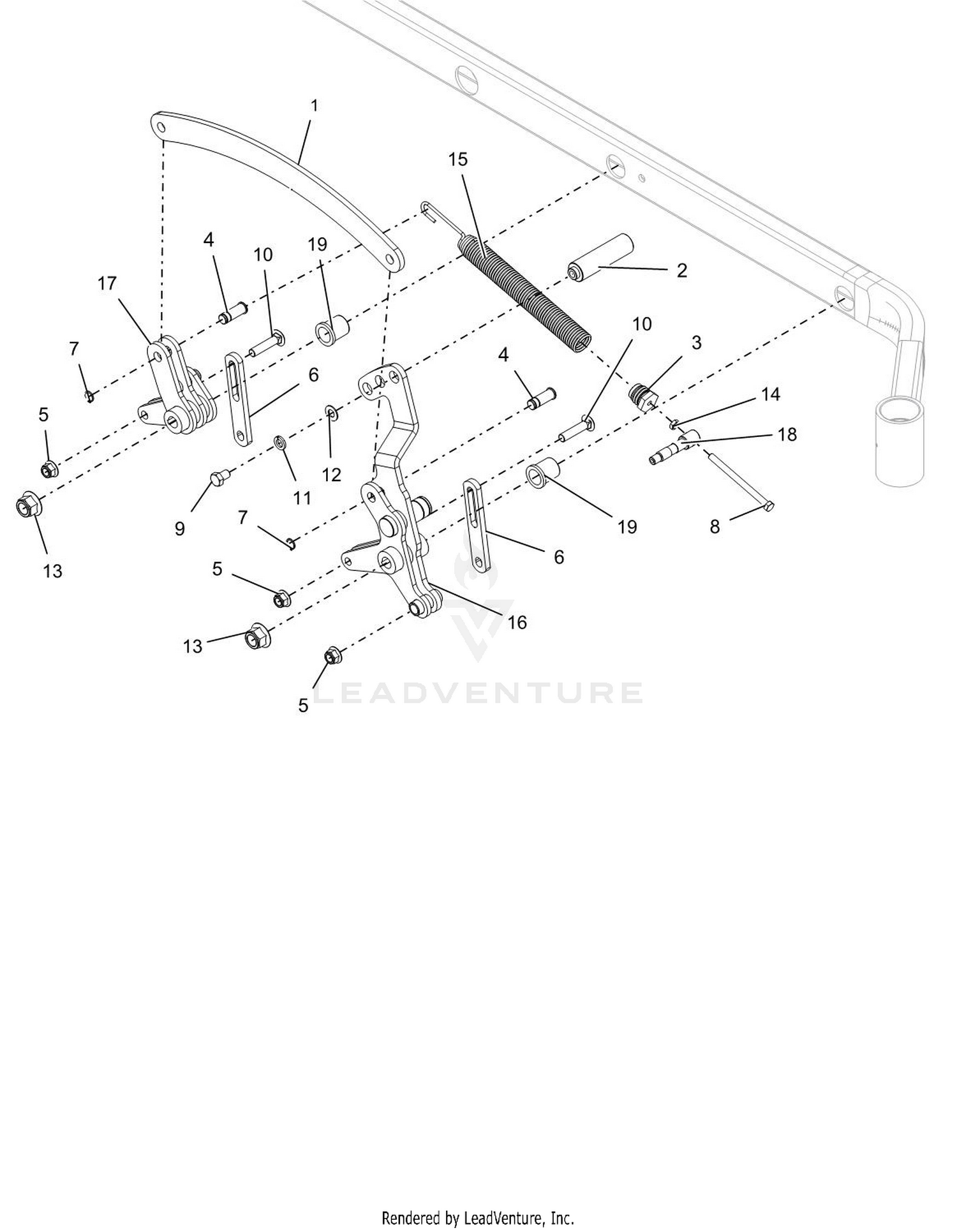

| Ref | Part Number | Description |
|---|
| 1 |
04373451 |
LINK, CONNECTING Price: $44.95 |
| 2 |
04373300 |
FOOT PEG, DECK LIFT Price: $29.95 |
| 3 |
04374200 |
PLUG, SPRING Price: $61.95 |
| 4 |
04414200 |
PIN, CLEVIS .625 SNAP RING Price: $10.45 |
| 5 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 6 |
04732400 |
LINK-DECK LIFT - LONG Price: $15.45 |
| 7 |
05709200 |
RG-RTNG-EXT .625X.050 Price: $2.45 |
| 8 |
05901506 |
BLT-HEX .38-16X5.00 GR5 FTH YZ Price: $3.60 |
| 10 |
06200423 |
BLT- RHSN .50-13X2.25 G5 ZCC This part replaces 06200119. Price: $3.45 |
| 11 |
06300115 |
WSHR,LK-REG .500X.125 ZCC This part replaces 06307300. Price: $0.95 |
| 12 |
06401112 |
WSHR, FLT .505X1.00X.062 ZCC This part replaces 06439200. Price: $0.95 |
| 13 |
06500931 |
NUT,FLG-TOP LK .750-10 FCC This part replaces 06500717. Price: $3.45 |
| 14 |
06500910 |
NUT-JAM .375-16 G2 ZCC This part replaces 06535900. Price: $0.95 |
| 15 |
08300624 |
SPRING, DECK LIFT Price: $12.45 |
| 16 |
04693967 |
FRONT RH DECK LIFT ARM WMT -LF Price: $173.45 |
| 17 |
04694067 |
REAR RH DECK LIFT ARM WMT -LF Price: $97.95 |
| 18 |
04373200 |
TRUNION, DECK LIFT SPRING Price: $86.95 |
