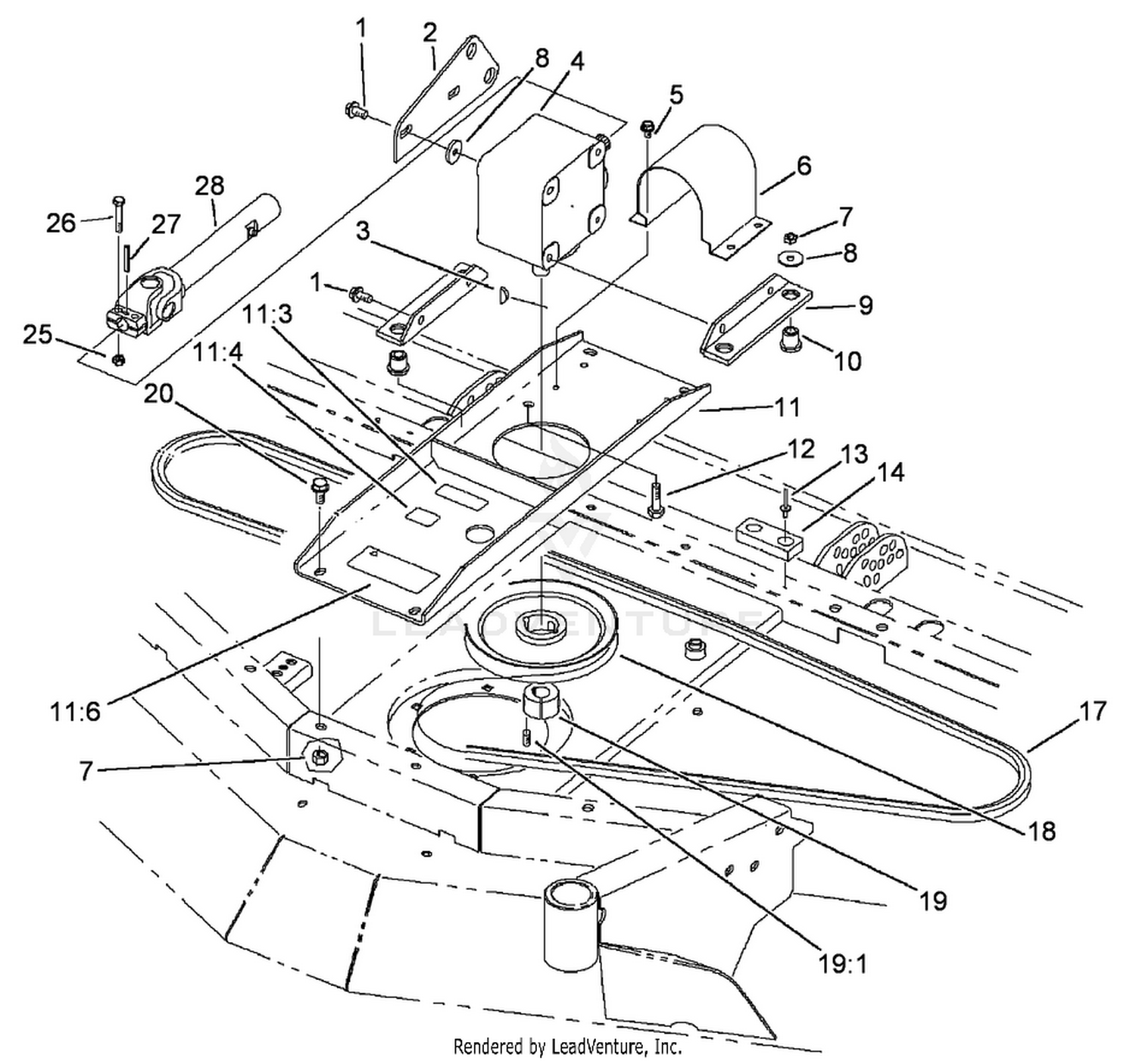

Gearbox Drive Assembly
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 33105-020 | SCREW-HHF Price: $0.54 |
| 2 | 93-4948 | PLATE-LATCH Price: $75.16 |
| 3 | 3257-5 | KEY-WOODRUFF Price: $5.13 |
| 4 | 100-1355 | GEARBOX ASM Price: $2,637.67 |
| 5 | 32104-82 | SCREW-HHF Price: $0.95 |
| 6 | 93-4930-03 | SHIELD-UNIVERSAL Price: $51.82 |
| 7 | 33025-00 | NUT-LOCK, NI Price: $0.54 |
| 8 | 93-4637 | WASHER-FLAT Price: $1.83 |
| 9 | 68-8560-03 | BRACKET-GEARBOX Price: $57.56 |
| 10 | 63-9750 | MOUNT Price: $18.92 |
| 11 | 93-4965 | GEARBOX MOUNT ASM Price: $255.00 |
| 12 | 33115-040 | SCREW-HH Price: $1.22 |
| 13 | 3269-11 | RIVET-POP Price: $0.68 |
| 14 | 86-5350 | BUMPER-RUBBER Price: $46.29 |
| 17 | 93-8457 | V BELT-HEX Price: $77.90 |
| 18 | 85-5860 | PULLEY-GEARBOX Price: $197.20 |
| 19 | 23-1640 | BUSHING-TAPERLOCK Price: $68.50 |
| 20 | 33105-025 | SCREW-HHF Price: $1.56 |
| 25 | 33024-00 | NUT-LOCK, NI Price: $0.75 |
| 26 | 33114-040 | SCREW-HH Price: $1.22 |
| 27 | 32121-34 | PIN-ROLL Price: $1.31 |
