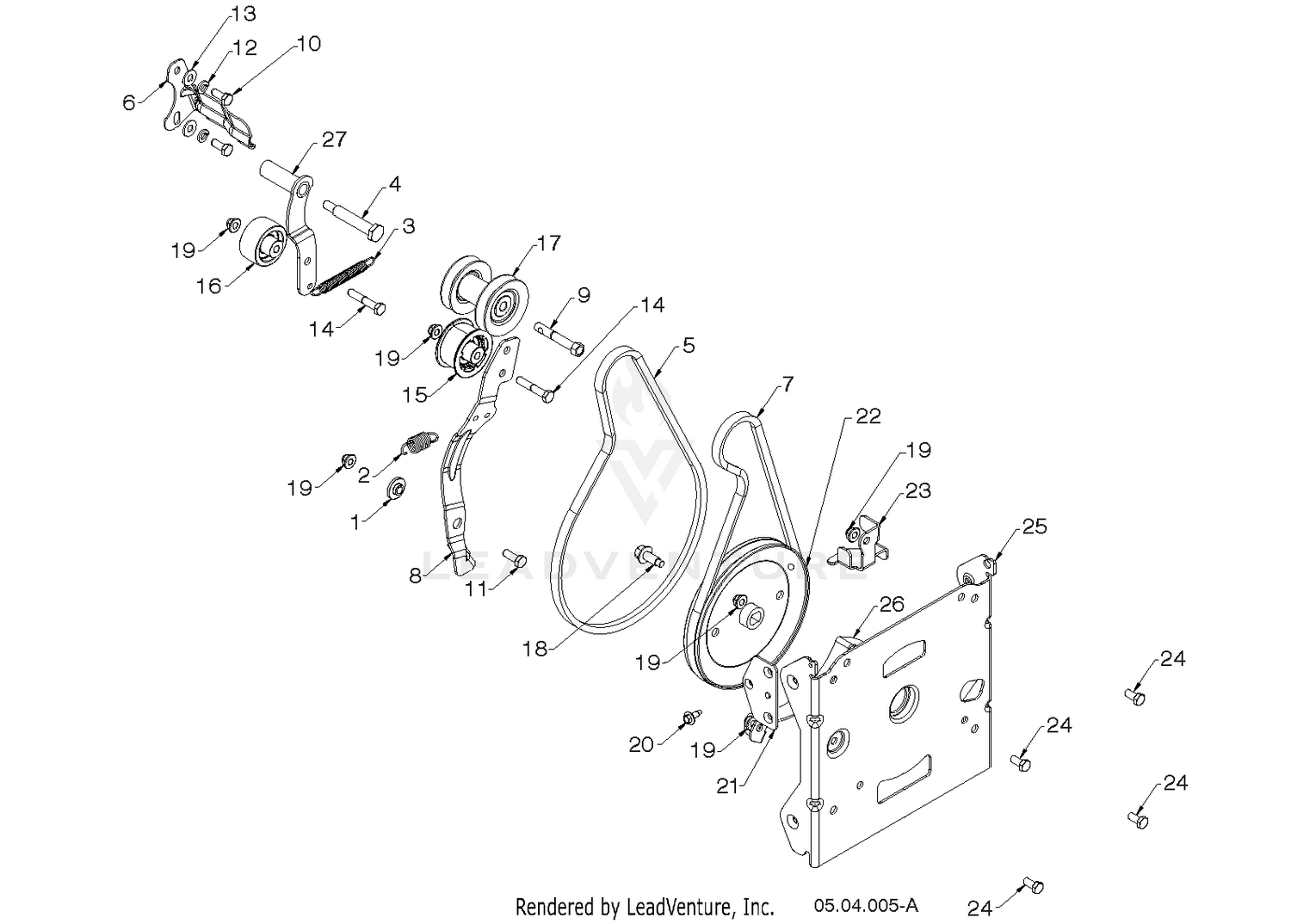

| Ref | Part Number | Description |
|---|
| 1 |
125-4410-03 |
BRACKET-MOUNT, AC This part replaces 115-0107-03. Price: $302.23 |
| 1 |
587343701 |
BUSHING.BRAKE.ARM Price: $5.99 |
| 2 |
117-9410 |
FITTING-STRAIGHT Price: $15.83 |
| 2 |
587031201 |
SPRING RETURN, IDLER ARM, IMPE Price: $4.99 |
| 3 |
117-3048 |
COMPRESSOR ASM Price: $1,280.77 |
| 3 |
580753001 |
SPRING RETURN IDLER ARM Price: $4.99 |
| 4 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 4 |
581413801 |
BOLT 5/16-24X2.25 HEX HEAD SHO Price: $2.99 |
| 5 |
115-0103 |
PULLEY Price: $366.51 |
| 5 |
584216102 |
BELT.DRIVE.SNOW.DUAL Price: $10.00 |
| 6 |
43-0090 |
SCREW-HH Price: $8.05 |
| 6 |
588492802 |
BELT KEEPER BRACKET Price: $5.99 |
| 7 |
501818201 |
LOW CRANK IMPELLER BELT Price: $12.00 |
| 7 |
98-3095 |
PULLEY-IDLER Price: $111.99 |
| 8 |
117-9971 |
BOLT-CARRIAGE Price: $3.18 |
| 8 |
580831106 |
ARM.IDLER.AUTO-PH.676 Price: $7.99 |
| 9 |
5-0652 |
SPACER Price: $5.35 |
| 9 |
582388401 |
BOLT.ENGINE.PULLEY Price: $4.99 |
| 10 |
33115-110 |
SCREW-HH Price: $2.92 |
| 10 |
874610512 |
SCREW 5/16-24 X .75 GR5 Price: $2.99 |
| 11 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 11 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ Price: $2.99 |
| 12 |
109-2675 |
SPACER-FAN, 21MM Price: Call Us |
| 12 |
594082801 |
BALL BEARING AUGER BALL BEARIN Price: $14.99 |
| 13 |
33103-030 |
SCREW-HHF Price: $0.75 |
| 13 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T Price: $2.99 |
| 14 |
112-6347 |
SWITCH-TEMP, DUAL Price: $241.34 |
| 14 |
874760528 |
BOLT, HEX 5/16-18X1-3/4 Price: $3.99 |
| 15 |
117-3291 |
VALVE-BALL, MODIFIED Price: $56.06 |
| 15 |
581141402 |
PULLEYIDLER.2.0.W/SPACER.CZ Price: $9.99 |
| 16 |
117-2230-03 |
PLATE-MOUNTING Price: $25.40 |
| 16 |
586880202 |
PULLEY.IDLER.FLNGLESS.W/SPACER Price: $9.99 |
| 17 |
32105-15 |
SCREW-HWH Price: $1.79 |
| 17 |
587893703 |
PULLEY.ASM.IMPELLER/DRIVE Price: $27.99 |
| 18 |
104-7201 |
NUT-HF Price: $0.69 |
| 18 |
595517901 |
SCREW HEXAGON HEAD FLANGE 3/8- Price: $3.99 |
| 19 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 19 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST Price: $5.99 |
| 20 |
119-0142 |
FITTING-RADIATOR Price: $57.79 |
| 20 |
585517801 |
HEX.WASHER.HEAD 1/4-20 X .65 Price: $2.99 |
| 21 |
114-5502 |
CLIP-FUSE Price: $10.72 |
| 21 |
590044602 |
BRACKET NUT BLACK ZINC PLATE Price: $4.99 |
| 22 |
99-7435 |
RELAY Price: $32.43 |
| 23 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 23 |
587587202 |
GUIDE.LOWER.AUGER.BELT.479 Price: $8.99 |
| 24 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 24 |
596031601 |
Screws Price: $2.99 |
| 25 |
2412-129 |
CLAMP-HOSE Price: $2.10 |
| 25 |
581592503 |
NEEDS DESCRIPTION This part replaces 581592502. Price: $24.99 |
| 26 |
120-0252 |
HOSE-RADIATOR, LOWER Price: $24.62 |
| 26 |
581632002 |
BRACKET.BELT.KEEPER.LOWER.BLAC Price: $5.99 |
| 27 |
117-3399 |
BELT-V Price: $18.07 |
| 27 |
593192502 |
ARM DRIVE IDLER CLEAR ZINC PLA This part replaces 581338203. Price: $9.99 |
| 28 |
115-8882 |
CONDUIT-CONVOLUTED Price: $1.69 |
| 29 |
119-7734 |
SHIM Price: $11.26 |
