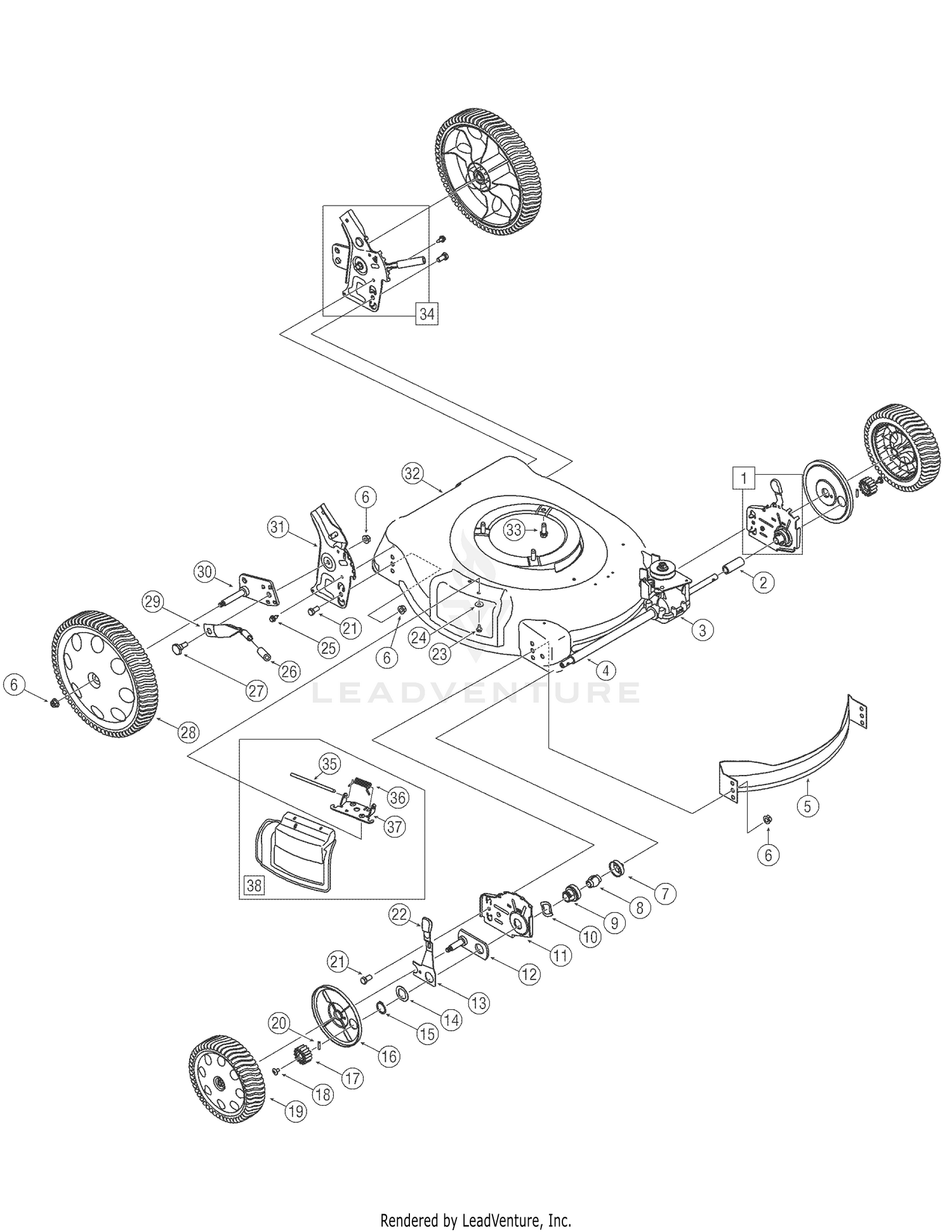

| Ref | Part Number | Description |
|---|
| 1 |
987-02193A |
Height Adjustment Ass’y - LH This part replaces 687-02193. Price: $58.00 |
| 1 |
987-02194A |
Height Adjustment Assembly RH This part replaces 687-02194. Price: $58.00 |
| 2 |
750-04405 |
Sleeve Spacer 1.8" Long Price: $4.29 |
| 3 |
918-04377B |
Transmission Ass’y Com plete This part replaces 618-04377. Price: $197.26 |
| 4 |
750-04404 |
SLEEVE SPACER .520IDX9.1LG Not Available Price: |
| 5 |
782P5002B |
FRONT BAFFLE Not Available This part replaces 782-5002B. Price: |
| 6 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 7 |
732-0708 |
BEARING RETAINER Not Available Price: |
| 8 |
741-0604A |
Sleeve Bearing Price: $11.31 |
| 9 |
748-0355 |
SUPPORT BEARING Not Available Price: |
| 10 |
736-0447 |
Wave Washer Price: $3.90 |
| 11 |
787-01298A-0637 |
ADJUSTMENT PLATE (RH) Not Available This part replaces 787-01298. Price: |
| 11 |
787-01299A-0637 |
ADJUSTMENT PLATE (LH) Not Available This part replaces 787-01299. Price: |
| 12 |
687-02044 |
PIVOT PLATE ASSEMBLY Not Available Price: |
| 13 |
732-0706 |
Front Lever - RH Price: $14.83 |
| 13 |
732-0707 |
Front Lever - LH Price: $14.83 |
| 14 |
736-0474 |
Flat Washer Price: $5.94 |
| 15 |
716-0102 |
Snap Ring Price: $4.40 |
| 16 |
782-7551A |
Wheel Dust Cap Price: $4.80 |
| 17 |
717-1761 |
Gear 14T LH FWD LH Price: $12.11 |
| 17 |
717-1762 |
Gear 14T RH FWD RH Price: $12.11 |
| 18 |
710-04531 |
Screw 1/4-20 x .390 Price: $4.42 |
| 19 |
734-04018C |
Wheel 8 x 2.125 This part replaces 734-04018A. Price: $16.82 |
| 20 |
915-0221 |
Dowel Pin This part replaces 715-0221. Price: $3.93 |
| 21 |
710-0216 |
Hex Screw, 3/8-16 x .75 Price: $3.93 |
| 22 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0426. Price: $12.01 |
| 23 |
710-0599 |
TT Screw 1/4-20 x .5 Price: $3.86 |
| 24 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 25 |
710-1652 |
TT Screw 1/4-20 x .625 Price: $3.86 |
| 26 |
720-0312 |
Foam Grip Price: $4.06 |
| 27 |
738-0507B |
Shoulder Screw .500 Dia. X .434 Price: $3.86 |
| 28 |
734-04019 |
REAR WHEEL12X2.1 This part replaces 734-04127. Price: $61.69 |
| 29 |
732-0866 |
HEIGHT ADJUSTMENT LEVER Not Available Price: |
| 30 |
987-02335 |
Pivot Bar RH This part replaces 687-02039A. Price: $23.73 |
| 30 |
987-02336 |
PIVOT ARM ASSEMBLY (LH) Not Available This part replaces 687-02040A. Price: |
| 31 |
687-02191 |
HANDLE BRACKET ASSEMBLY (LH) Not Available Price: |
| 31 |
687-02192 |
HANDLE BRACKET ASSEMBLY (RH) Not Available Price: |
| 33 |
710-0654A |
TT Screw 3/8-16 x 1 Price: $3.75 |
| 34 |
687-02056 |
HANDLE BRACKET ASSEMBLY (RH) Not Available Price: |
| 34 |
687-02057 |
HANDLE BRACKET ASSEMBLY (LH) Not Available Price: |
| 35 |
747-0710A |
HINGE PIN This part replaces 747-0710. Price: $3.86 |
| 36 |
732-1014C |
TORSION SPRING This part replaces 732-1014. Price: $7.40 |
| 37 |
17032A |
PLATE-ADAPTER Not Available Price: |
