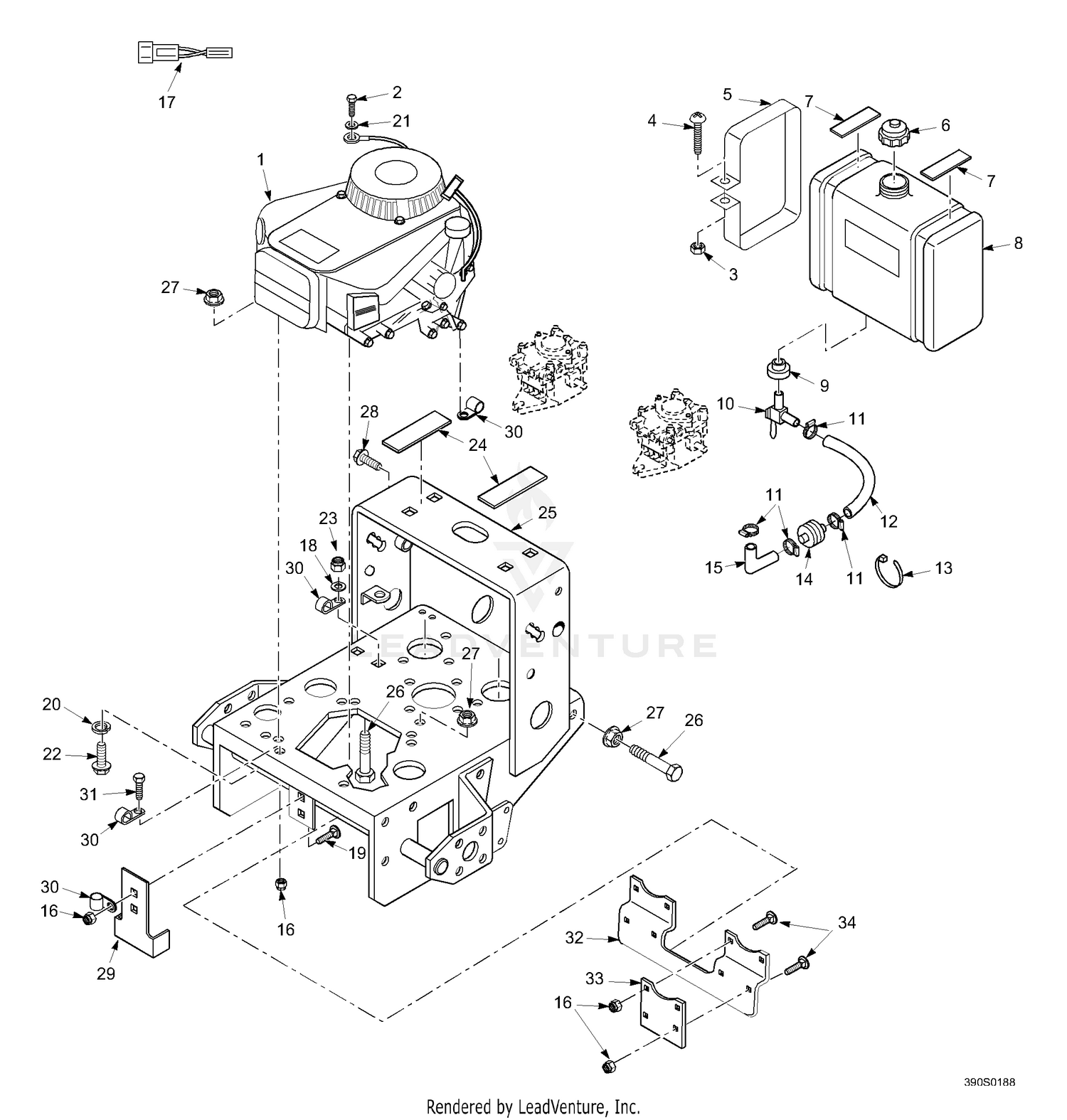

| Ref | Part Number | Description |
|---|
| 1 |
481563 |
Engine,17KA Kawasaki Price: Call Us |
| 2 |
04002-07 |
Bolt, Hex Head M8-1.25 x 10mm Price: Call Us |
| 3 |
04020-02 |
Hex Nut, 1/4-20 Price: Call Us |
| 4 |
04010-10 |
Screw, 1/4-20 x 2" Round Head Phillips Price: Call Us |
| 5 |
421239 |
Strap, Fuel Tank Price: Call Us |
| 6 |
481603 |
Cap, Fuel Tank Price: Call Us |
| 7 |
48292 |
Pad, Rubber-Fuel Tank Upper Price: Call Us |
| 9 |
482571 |
Bushing This part replaces 48309. Price: Call Us |
| 10 |
483747 |
Ball Valve w/Screen This part replaces 48308. Price: Call Us |
| 11 |
48059-02 |
Clamp, Fuel Hose Price: Call Us |
| 12 |
483617 |
Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) This part replaces 48058. Price: Call Us |
| 14 |
48057-02 |
Fuel Filter Price: Call Us |
| 15 |
48179-01 |
Fuel Hose 7/32 ID x 3.5"(KA. Only) This part replaces 48179. Price: Call Us |
| 16 |
04021-10 |
Nut, Hex Elastic Stop 5/16-18 Price: Call Us |
| 17 |
481717 |
Wire Harness Adapter Price: Call Us |
| 18 |
04040-14 |
Flat Washer, 14" Price: Call Us |
| 19 |
04003-04 |
Bolt, Carriage 5/16-18 x 1" Price: Call Us |
| 20 |
04030-03 |
Lock Washer, 5/16" Price: Call Us |
| 21 |
04031-09 |
Lock Washer, 5/16" Int. Tooth Price: Call Us |
| 22 |
04002-01 |
Bolt, Hex Head M8-1.25 x 30mm Price: Call Us |
| 23 |
04021-08 |
Nut, Hex Elastic Stop 1/4-20 Price: Call Us |
| 24 |
48205 |
Pad, Rubber-Fuel Tank Lower Price: Call Us |
| 25 |
461746 |
ENGINE DECK W/ DECAL, 16" SWZ This part replaces 461358. Price: Call Us |
| 26 |
04003-09 |
Bolt, Hex Head 1/4-20 x 1.25" Price: Call Us |
| 27 |
04019-02 |
Nut, Hex Serrated Flange 1/4-20 Price: Call Us |
| 28 |
04017-18 |
Capscrew, Hex Serrated Flange 5/16-18 x 1.25" Price: Call Us |
| 29 |
48030-09 |
Clamp Price: Call Us |
| 30 |
421370 |
Clutch Bracket Price: Call Us |
| 31 |
04001-08 |
Bolt, Hex Head 5/16-18 x .75" Price: Call Us |
| 32 |
422553 |
Stiffener (large frame units only) Price: Call Us |
| 33 |
422552 |
Plate (large frame units only) Price: Call Us |
