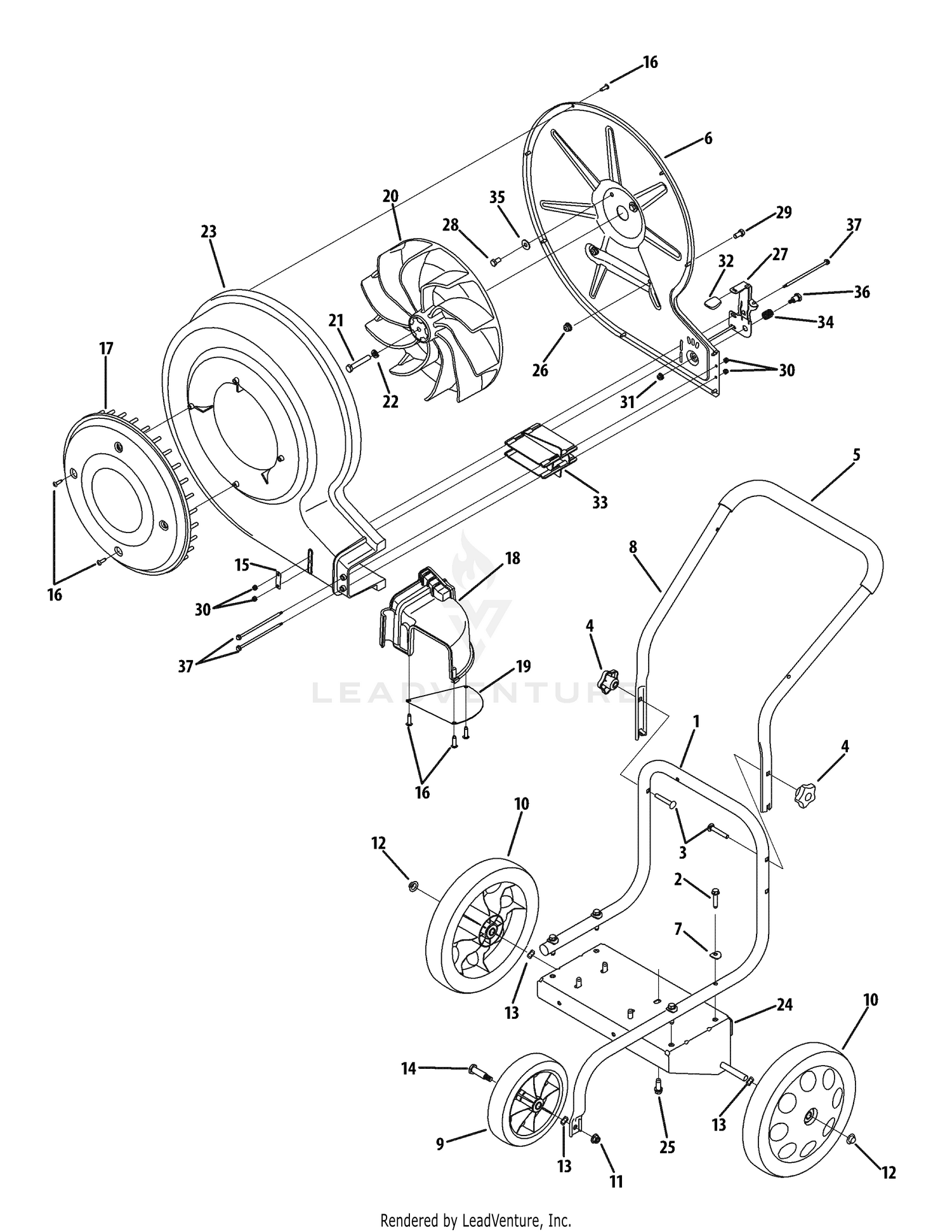

| Ref | Part Number | Description |
|---|
| 1 |
749-04292-0638 |
Lower Handle Assembly Price: $60.97 |
| 2 |
710-04605B |
HEX SCREW WASHER 5/16-18 x 1.5 This part replaces 710-04605. Price: $6.01 |
| 3 |
710-0487 |
Carriage Screw, 5/16-18 x 2.00 Price: $6.17 |
| 4 |
720-04072A |
STAR KNOB 5/16-18 This part replaces 720-04072. Price: $6.07 |
| 5 |
720-04091 |
Foam Grip, .970 x 25 Price: $18.56 |
| 6 |
781-04165A-0638 |
Back Plate This part replaces 781-04165-0638. Price: $64.87 |
| 7 |
736-0451 |
Saddle Washer This part replaces 936-0451. Price: $3.75 |
| 8 |
749-04291-0638 |
Upper Handle Price: $49.59 |
| 9 |
753-08091 |
WHEEL KIT IDLE 8 x 2 This part replaces 734-04033. Price: $40.81 |
| 10 |
734-04019 |
Wheel, 12" Price: $61.69 |
| 11 |
712-04065 |
Flange Lock Nut, 3/8 -16 Price: $3.68 |
| 12 |
726-0299 |
Push Cap, 1/2" Price: $7.03 |
| 13 |
936-0504 |
Wave Washer, .510 x .750 x .017 Price: $3.90 |
| 14 |
738-0213 |
Shoulder Screw, .498 x 1.445 Price: $7.16 |
| 15 |
781-04212-0637 |
Guide Plate Price: $6.82 |
| 16 |
710-04373A |
Hex Screw, 12-16 x .75 Price: $3.86 |
| 17 |
731-05664 |
Blower Cover Price: $40.25 |
| 18 |
631-04253 |
Chute Assembly Price: $33.10 |
| 19 |
781-04175-0638 |
Chute Plate Price: $8.31 |
| 20 |
631-04213 |
Impeler Assembly Price: $140.85 |
| 21 |
712-1254 |
Hex Screw, 3/8 -24 x 2.25 Price: Call Us |
| 22 |
736-0217 |
Lock Washer, 3/8 This part replaces 936-0217. Price: $3.86 |
| 23 |
731-05592 |
Blower Housing Price: $69.78 |
| 24 |
681-04067A-0638 |
FRAME ASSEMBLY This part replaces 681-04067-0638. Price: $83.31 |
| 25 |
710-0654A |
Sems Screw, 3/8 -16 x 1.000 Price: $3.75 |
| 26 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 27 |
781-04181B |
BLOWER LEVER This part replaces 781-04181-0638. Price: $19.39 |
| 28 |
710-0237 |
Hex Bolt, 5/16-24 x .625 Price: $3.93 |
| 29 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 30 |
712-04035 |
Hex Lock Nut, #8-32 Price: $3.63 |
| 31 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 32 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0426. Price: $12.01 |
| 33 |
731-05644 |
Louver Plate Price: $7.38 |
| 34 |
932-3042 |
Comp. Spring, .515 x .641 x .95 Price: $4.29 |
| 35 |
736-0242 |
Bell Washer, .340 x .872 x .060 Price: $3.75 |
| 36 |
738-04222 |
Shoulder Screw, .437 x .50 x 1/4-20 Price: $2.54 |
