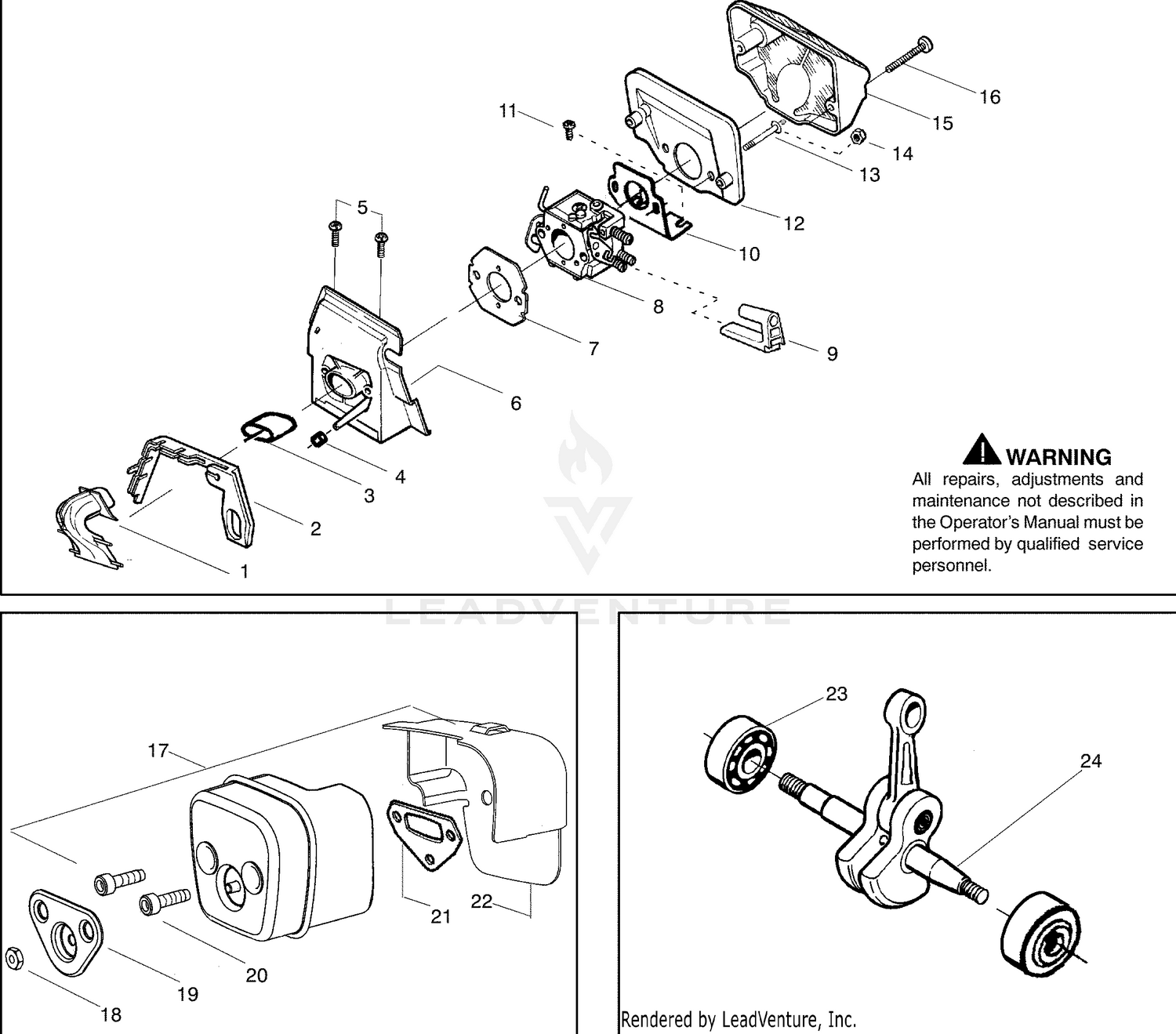

Intake and Muffler and Crankshaft
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530029813 | INTAKE HORN Price: $2.99 |
| 1 | 75-9790-01 | DISCONTINUED Price: Call Us |
| 2 | 530019203 | TURBO CLEAN SEAL Price: $3.99 |
| 2 | 93-9938 | WHEEL ASM Price: $144.61 |
| 3 | 327-24 | SCREW-HH Price: $7.99 |
| 3 | 530029814 | INTAKE PIPE Price: $9.99 |
| 4 | 530053435 | IMPULSE PIPE Price: $3.99 |
| 5 | 530015814 | SCREW Price: $0.17 |
| 6 | 530037465 | CARB ADAPTOR Price: $5.99 |
| 7 | 530019172 | GSKT,CARB 36/41 Price: $4.99 |
| 9 | 530035587 | GROMMET Price: $3.99 |
| 10 | 530047767 | PLATE Price: $0.99 |
| 11 | 530015896 | SCREW Price: $4.99 |
| 12 | 530036582 | AIR FILTER (BOTTOM) Price: $4.99 |
| 13 | 530015968 | STUD-CARBURETOR Price: $2.99 |
| 14 | 530016008 | NUT 5M Price: $2.99 |
| 15 | 530029811 | AIR FILTER Price: $8.99 |
| 16 | 530015899 | SCREW Price: $4.99 |
| 18 | 588135101 | HEXAGON NUT MUFFLER This part replaces 530016359. Price: $2.99 |
| 19 | 530055600 | COVER BOLT Price: $2.99 |
| 20 | 530016338 | SCREW MUFFLER Price: $2.99 |
| 21 | 530055128 | GASKET-MUFFLER Price: $3.99 |
| 22 | 530055171 | BACKPLATE, MUFFLER Price: $5.99 |
| 23 | 530056363 | BEARING & SEAL ASSEMBLY Price: $7.99 |
| 530035607 | CARBURETOR | ZAMA W-29 This part replaces 530071987. Price: $119.99 530035607 |
| 545013502 | CARBURETOR | KIT WT-834 WALBRO Price: $32.99 545013502 |
